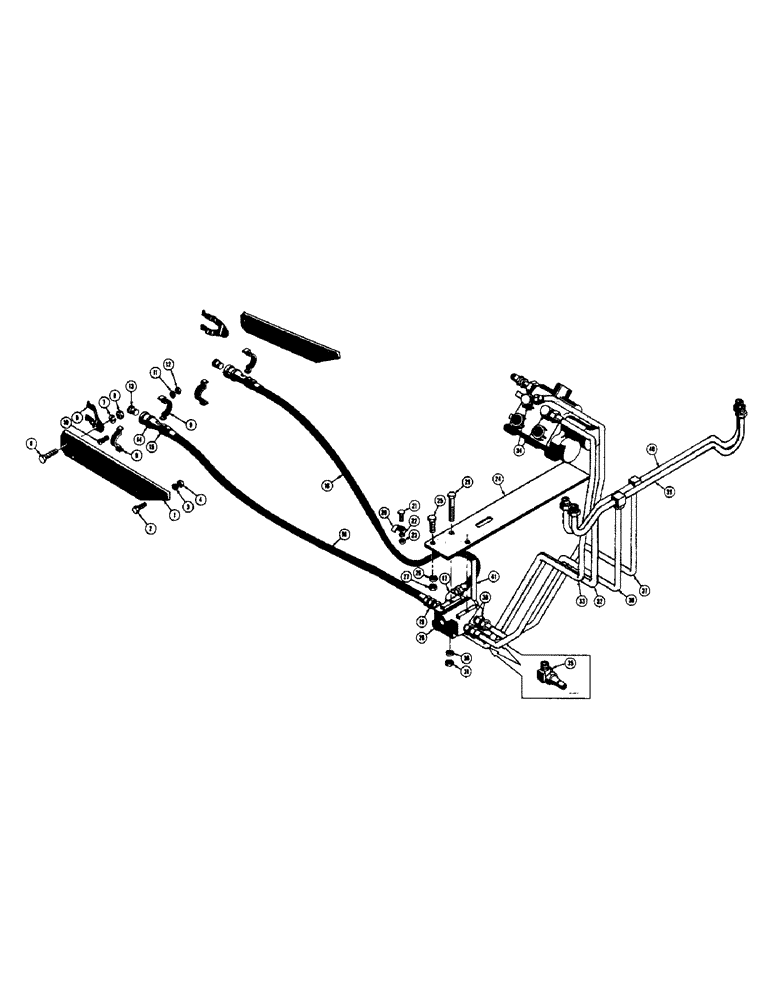

Запчасти Case 320 (208) - PULL BEHIND HYDRAULICS (WITH HYDRAULIC DOZERS), (SERIAL NO. (07) - HYDRAULIC SYSTEM

1

38505

BRACKET - mounting

2шт.

2

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

5

O8388AB

X

BRACKET - mounting, pull behind coupling

2шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

9

O8606AB

X

CLAMP - pull behind coupling

4шт.

10

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine, round head (No. 8 - 32 NC x 5/8")

4шт.

11

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

12

129-6

NUT,#8-32

- hex. (No. 8 - 18 NC)

4шт.

13

O8652AB

X

PLUG - dust

2шт.

14

4026AA

X

COUPLING - female, pull behind (See figure 212 for breakdown)

2шт.

4025AA

X

COUPLING - male, pull behind (See figure 212(1) for breakdown)

2шт.

15

O9466AB

X

ADAPTER - hose to pull behind coupling (5/8" JIC x 1/2" NPT)

2шт.

16

D20804

HOSE

- L.H. rear diversion valve port to L.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

17

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 3/4" NPT)

1шт.

18

D20804

HOSE

- R.H. rear diversion valve port to R.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

19

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 3/4" NPT

1шт.

20

49789

CLAMP

- tube, hose retaining

1шт.

21

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 3/4

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

1шт.

24

D20260

PLATE - mounting, diversion valve

1шт.

25

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

28

D26726

VALVE

- diversion (See figure 210(1) for breakdown)

1шт.

29

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8 - 24 NF x 2-3/4

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

32

D20304

TUBE - L.H. rear control valve port to L.H. bottom diversion valve port

1шт.

33

D20306

TUBE - L.H. front control valve port to R.H. bottom diversion valve port

1шт.

34

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

35

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 3/4" NPT)

2шт.

36

D20318

TUBE - R.H. front diversion valve port to front manifold tube

1шт.

37

D20316

TUBE - L.H. front diversion valve port to rear manifold tube

1шт.

38

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 3/4" NPT

2шт.

39

D20321

TUBE - manifold, front

1шт.

40

D20323

TUBE - manifold, rear

1шт.

41

D23698

HANDLE

LEVER - control, diversion valve

1шт.
