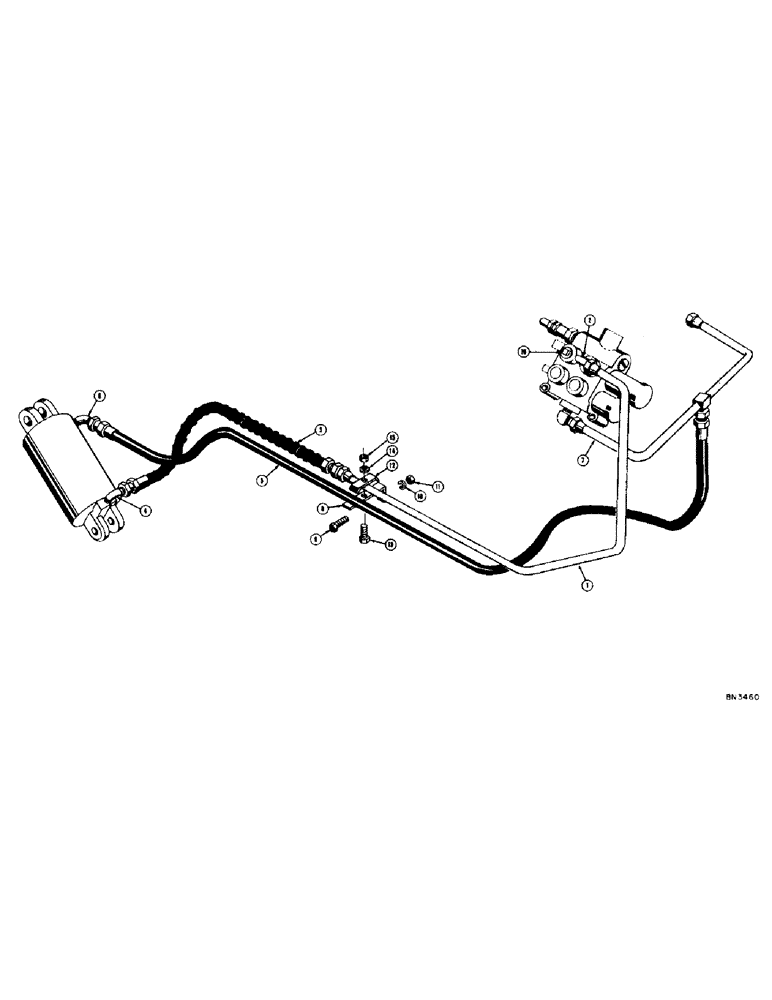

Запчасти Case 320 (204) - EAGLE HITCH HYDRAULICS, (WITH DRAWBAR TRACTOR OR PULL BEHIND HYDRUALICS) (07) - HYDRAULIC SYSTEM

1

39849

SEAL

TUBE - L.H. rear valve port to lower cylinder port, front section

1шт.

2

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

3

D20499

HOSE - L.H. rear valve port to lower cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 33")

1шт.

4

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male, 45 degrees (5/8" JIC x 1/2" NPT)

1шт.

5

D20502

HOSE - upper cylinder port to reservoir, rear section (3/8" I.D. x 3/4" O.D. x 72")

1шт.

6

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- male, 45 degrees (3/8" JIC x 1/2" NPT)

1шт.

7

D20467

TUBE - upper cylinder port and valve outlet to reservoir, front section

1шт.

8

NLS

NO LONGER SERVICED

BRACKET - support, tube clamp

1шт.

9

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

12

32978

PLATE ASSY.

PLATE - clamp

1шт.

13

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

16

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT square head

1шт.
