(204[1]) - PULL BEHIND HYDRAULICS (WITH DRAWBAR TRACTOR, EAGLE HITCH, OR MECHANICAL DOZER) (SERIAL NO. 3003851 AND AFTER)

Запчасти Case 320 (204[1]) - PULL BEHIND HYDRAULICS (WITH DRAWBAR TRACTOR, EAGLE HITCH, OR MECHANICAL DOZER) (SERIAL NO. 3003851 AND AFTER) (07) - HYDRAULIC SYSTEM

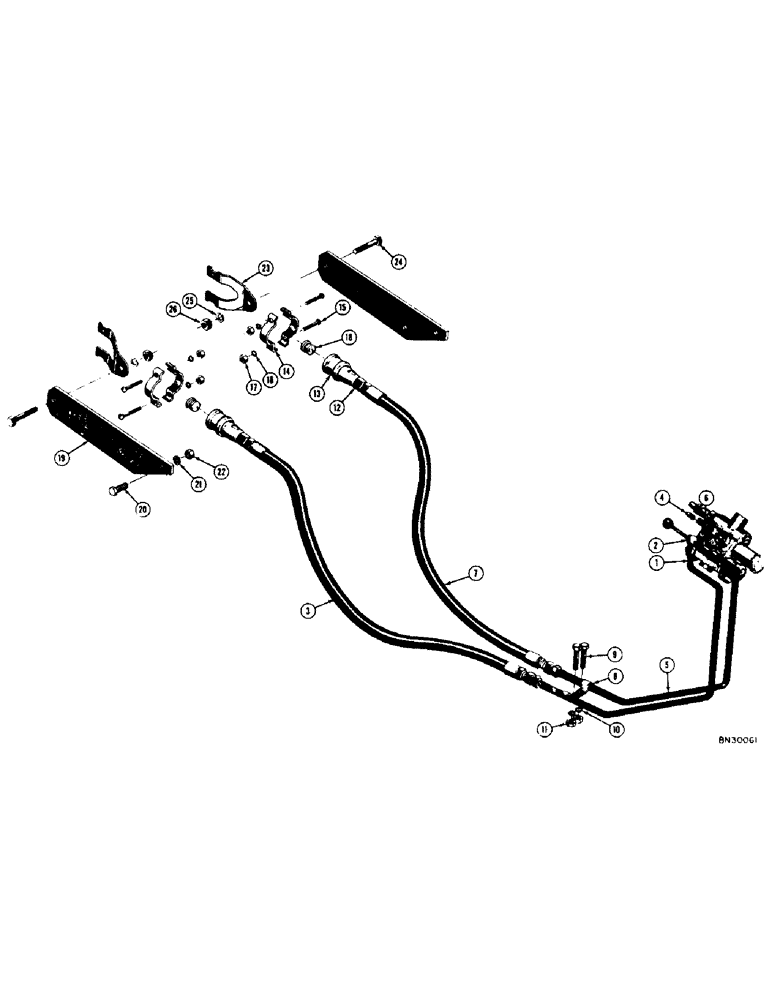

Схема запчастей Case 320 - (204[1]) - PULL BEHIND HYDRAULICS (WITH DRAWBAR TRACTOR, EAGLE HITCH, OR MECHANICAL DOZER) (SERIAL NO. 3003851 AND AFTER) (07) - HYDRAULIC SYSTEM
13
15
16
2
23
1
17
20
10
22
26
9
8
25
6
3
21
12
11
7
24
18
5
4
19
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

37763

TUBE - R.H. rear control valve port to R.H. pull behind coupling, front section

1шт.

2

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

3

D20804

HOSE

- R.H. rear control valve port to R.H. pull behind coupling, rear section (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

4

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT square head

2шт.

5

37762

FINGER

TUBE - R.H. front control valve port to L.H. pull behind coupling, front section

1шт.

6

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

7

D20804

HOSE

- R.H. front control valve port to L.H. pull behind coupling, rear section (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

8

49789

CLAMP

- tube

2шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

O9466AB

X

ADAPTER - hose to pull behind coupling (5/8" JIC x 1/2" NPT)

2шт.

13

4026AA

X

COUPLING - female, pull behind (See figure 212 for breakdown)

2шт.

4025AA

X

COUPLING - male, pull behind (See figure 212(1) for breakdown) Not shown

2шт.

14

O8606AB

X

CLAMP - pull behind coupling

4шт.

15

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine, round head (No. 8 - 32 NC x 5/8")

4шт.

16

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

17

129-6

NUT,#8-32

4шт.

18

O8652AB

X

PLUG - dust

2шт.

19

O8388AB

X

BRACKET - mounting, pull behind coupling

2шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

23

38505

BRACKET - mounting

2шт.

24

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.
