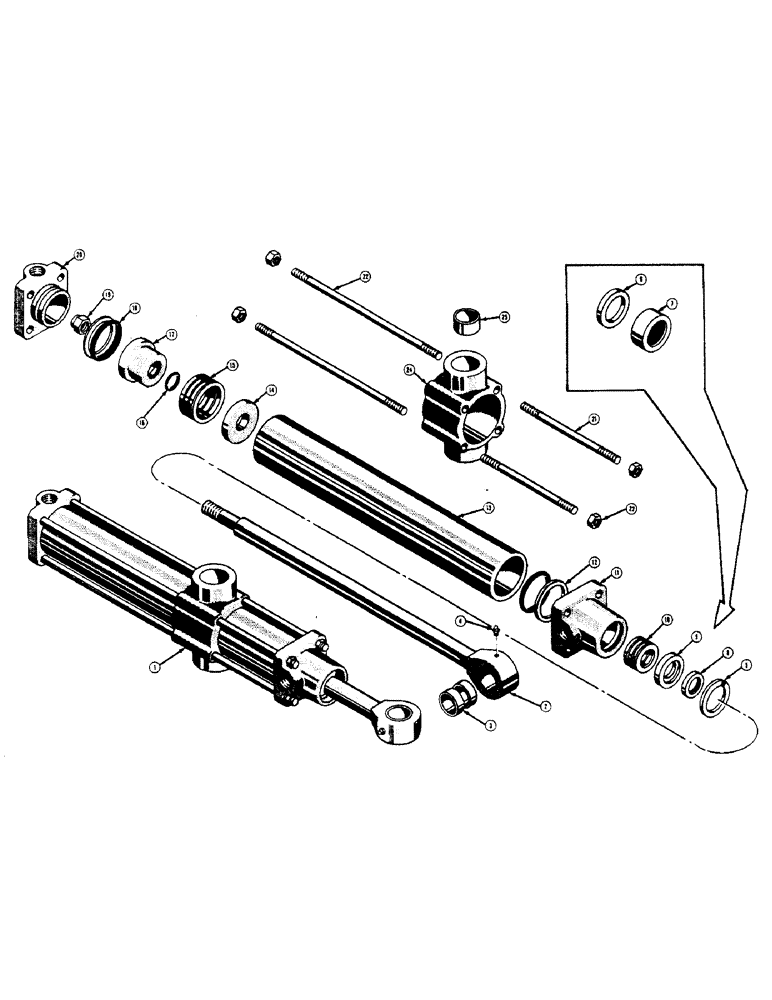

Запчасти Case 320 (192) - D27696 SCARIFIER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D27696

CYLINDER - Scarifier, hydraulic

1шт.

2

D20021

ROD - piston

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

6

36259

WASHER

- packing, piston rod (Use D23962 and D23933)

1шт.

7

17603

WIPER SEAL

- wiper, piston rod (Use D23962 and D23933)

1шт.

8

D23962

SEAL

- wiper, piston rod (Also order 1 - D23933 gland when replacing 17603 seal)

1шт.

9

D23933

GLAND

- seal, wiper (Also order 1 - D23962 seal when replacing 36259 washer)

1шт.

10

17597

PACKING

- piston rod

1шт.

11

36999

CAP COVER

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

12

D24986

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25494

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

13

37396

TAPE,3.5" OD, 13.333" Length

TUBE - cylinder (3.500" O.D.)

1шт.

D23251

TUBE - cylinder (3.375" O.D.)

1шт.

14

31661

WASHER

- piston packing

1шт.

15

31662

PACKING

- piston

1шт.

16

O3522CK

X

SEAL - "O" ring, piston rod (Used with D23735 piston only)

1шт.

17

31663

X

PISTON - cylinder (No "O" ring) (Used D23735, D23739, and O3522CK)

1шт.

D23735

PISTON

- cylinder (With "O" ring) (When replacing 31663 piston without "O" ring, also order 1 - O3522CK "O" ring and 1 - D23739 locknut)

1шт.

18

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, cylinder ends to tube

2шт.

19

131-152

HARDWARE

NUT - lock (31663 piston only) (3/4" - 16 NF)

1шт.

D23739

LOCK NUT

NUT - lock (D23735 piston only) (3/4" - 16 NF)

1шт.

20

31657

ARTICULATION

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

37393

TAPE

ROD - tie, short

4шт.

22

37392

ROD - tie, long

4шт.

23

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

8шт.

24

36947

ROD

TRUNNION - cylinder (3.500" O.D. cylinder tube only)

1шт.

D23302

TRUNNION - cylinder (3.375" O.D. cylinder tube only)

1шт.

25

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.
