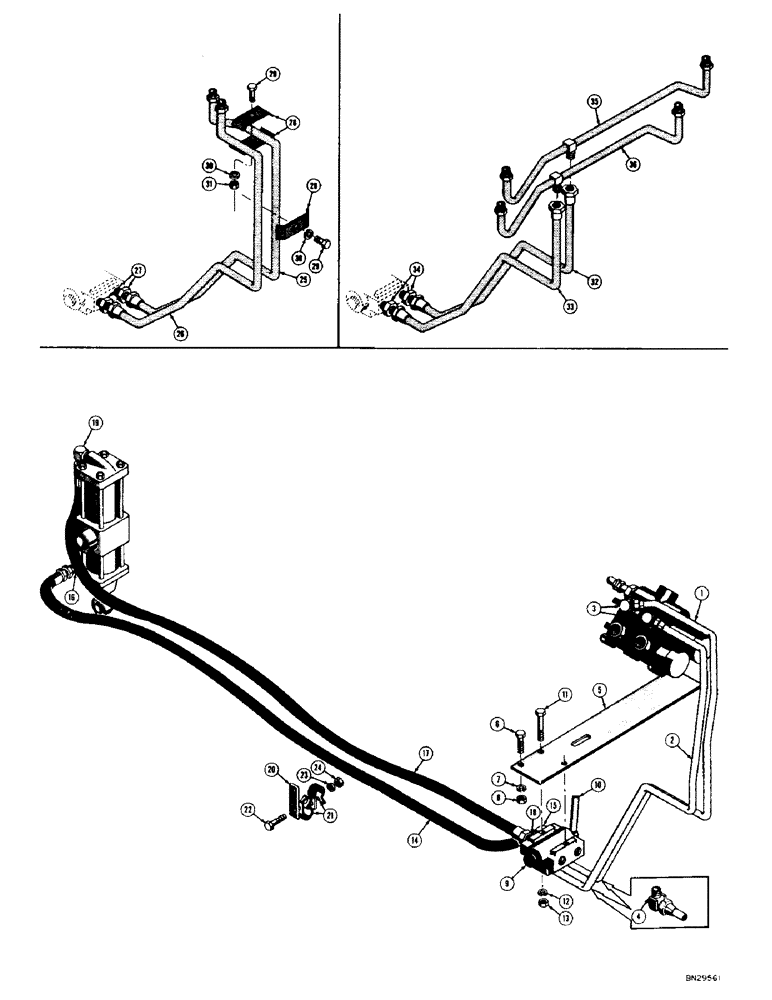

Запчасти Case 320 (188) - SCARIFIER HYDRAULICS, (SERIAL NO. 3003851 AND AFTER) (07) - HYDRAULIC SYSTEM

1

D20304

TUBE - L.H. rear control valve port to L.H. bottom diversion valve port

1шт.

2

D20306

TUBE - L.H. front control valve port to R.H. bottom diversion valve port

1шт.

3

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

4

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 3/4" NPT)

2шт.

5

D20260

PLATE - mounting, diversion valve

1шт.

6

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

9

D26726

VALVE

- diversion (See figure 210(1) for breakdown)

1шт.

10

D23698

HANDLE

LEVER - control, diversion valve

1шт.

11

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8 - 24 NF x 2-3/4

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

14

D20358

HOSE

- L.H. rear diversion valve port to lower cylinder port (1/2" I.D. x 7/8" O.D. x 46")

1шт.

15

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (5/8" JIC x 3/4" NPT)

1шт.

16

D20168

ELBOW - special flow restrictor

1шт.

17

D20356

HOSE - R.H. rear diversion valve port to upper cylinder port (1/2" I.D. x 7/8" O.D. x 49")

1шт.

18

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 3/4" NPT

1шт.

19

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

20

D20307

BRACKET - tube clamp (Mounts to R.H. rear fuel tank mounting bolt)

1шт.

21

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- tube

2шт.

22

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

25

D20312

TUBE - L.H. front diversion valve port to rear lift cylinder manifold tube, lower section (Loader models only)

1шт.

26

D20309

TUBE - R.H. front diversion valve port to front lift cylinder manifold tube, lower section (Loader models only)

1шт.

27

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 3/4" NPT

2шт.

28

31665

COLLAR CLAMP

PLATE - clamp

3шт.

29

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

32

D20316

TUBE - L.H. front diversion valve port to rear manifold tube (Dozer models only)

1шт.

33

D20318

TUBE - R.H. front diversion valve port to front manifold tube (Dozer models only)

1шт.

34

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 3/4" NPT

2шт.

35

D20323

TUBE - manifold, rear (Dozer models only)

1шт.

36

D20321

TUBE - manifold, front (Dozer models only)

1шт.
