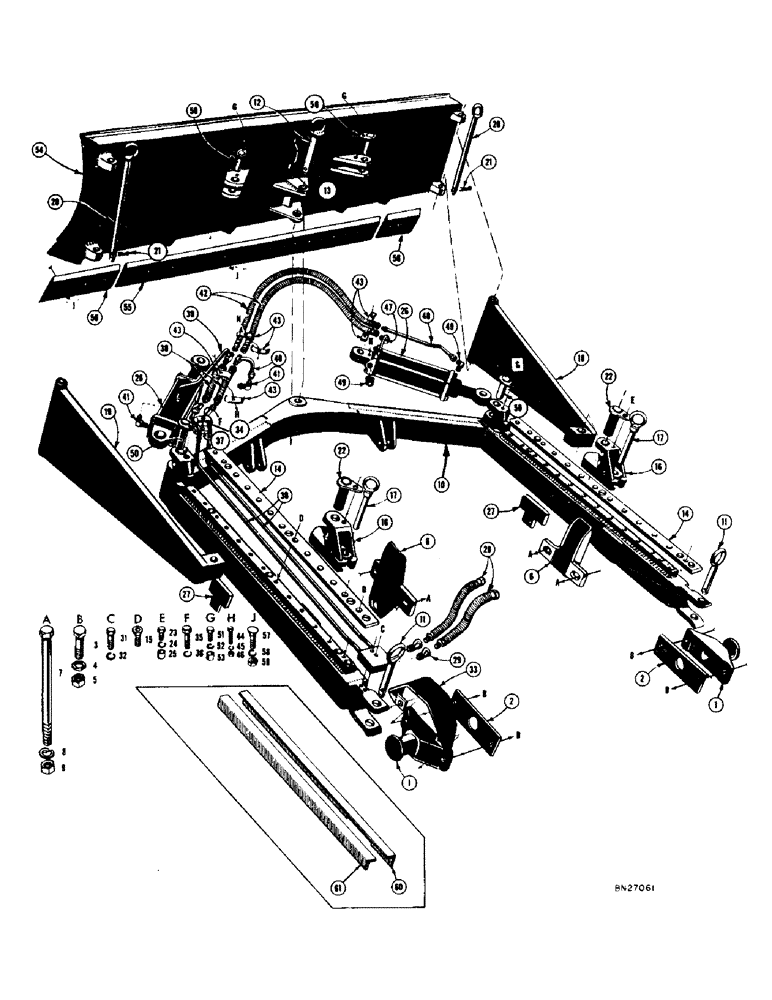

Запчасти Case 320 (164) - HYDRAULIC ANGLING DOZER (07) - HYDRAULIC SYSTEM

1

34044

SPACER

BRACKET - pivot, Dozer attaching

2шт.

2

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

3

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

4шт.

6

16679

PLATE - Dozer rub

2шт.

7

16-12186

HHCS - 3/4 - 16 NF x 11-5/8

4шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

4шт.

10

37963

"C" FRAME - Hydraulic Angling Dozer

1шт.

11

38679

PIN - mounting, "C" frame to pivot bracket

2шт.

12

38072

PIN

- pivot, moldboard

1шт.

13

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

14

37573

PLATE - slide

2шт.

15

164-132

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 3/4"

CAPSCREW - flat socket head (1/2" - 20 NF x 1-3/4")

26шт.

16

39127

BRACKET

- slide

2шт.

17

38070

LUBE NIPPLE

PIN - angling stop

2шт.

18

D20224

STRUT - slide bracket to moldboard, R.H.

1шт.

19

D20225

STRUT - slide bracket to moldboard, L.H.

1шт.

20

D20247

PIN - mounting, Serial Range: strut-moldboard

2шт.

21

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

22

D28564

PIN - mounting, strut to slide bracket

2шт.

23

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4

2шт.

24

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

25

D23740

BUSHING

- lockhead pin

2шт.

26

37932

CYLINDER - Dozer angling, hydraulic (See figure 176 for breakdown)

2шт.

27

33676

DRAWBAR SUPPORT

LOCKOUT - leaf spring

2шт.

28

D20176

HOSE - bulkhead union to junction block and tube ass'y (1/2" I.D. x 7/8" O.D. x 15-3/4")

2шт.

29

D23906

ELBOW

- street, 45 degrees (3/8" NPT)

2шт.

30

39612

X

JUNCTION BLOCK AND TUBE ASS'Y - Original equipment - use D28039 and 221-2

1шт.

D28039

BLOCK

JUNCTION BLOCK AND TUBE ASS'Y - Replacement - see 39612

1шт.

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" NPT square head (Not shown) See 39612

1шт.

31

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

D20141

GUARD - hose

1шт.

34

D20369

CLAMP

PLATE - clamp

1шт.

35

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20 NF x 2-1/4

1шт.

36

92-8

LOCK WASHER,1/2"

1шт.

37

39607

SPACER - clamp plate

1шт.

38

38614

CLIP

HOSE - junction block and tube ass'y to L.H. angling cylinder (1/2" I.D. x 7/8" O.D. x 12-5/8")

2шт.

39

38324

TUBE - hose to L.H. angling cylinder, rear port

1шт.

40

38326

BUSHING,1.875, 1.125" Length

TUBE - hose to L.H. angling cylinder, front port

1шт.

41

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" JIC x 1/2" NPT)

2шт.

42

39637

LINE

HOSE - L.H. angling cylinder to R.H. angling cylinder (1/2" I.D. x 7/8" O.D. x 45")

2шт.

43

31665

COLLAR CLAMP

PLATE - clamp

6шт.

44

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

3шт.

45

92-5

LOCK WASHER,5/16"

3шт.

46

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

3шт.

47

38328

TUBE - hose to R.H. angling cylinder, front port

1шт.

48

38322

TUBE - hose to R.H. angling cylinder, rear port

1шт.

49

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" JIC x 1/2" NPT)

2шт.

50

31109

PIN ASSY.

PIN - mounting, angling cylinder to moldboard and "C" frame

4шт.

51

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4

4шт.

52

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

53

D23740

BUSHING

- lockhead pin

4шт.

54

D20266

MOLDBOARD - Hydraulic Angling Dozer

1шт.

55

38047

EDGE

- cutting, center

1шт.

56

16042

EDGE

- cutting, end

2шт.

57

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, no. 3 head (1/2" - 13 NC x 1-3/4")

23шт.

58

92-8

LOCK WASHER,1/2"

23шт.

59

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

23шт.

60

39610

GUARD - tubing, inside (Tack welded over inside tube of junction block and tube ass'y)

1шт.

61

39611

FINGER

GUARD - tubing, outside (Tack welded over outside tube of junction block and tube ass'y)

1шт.
