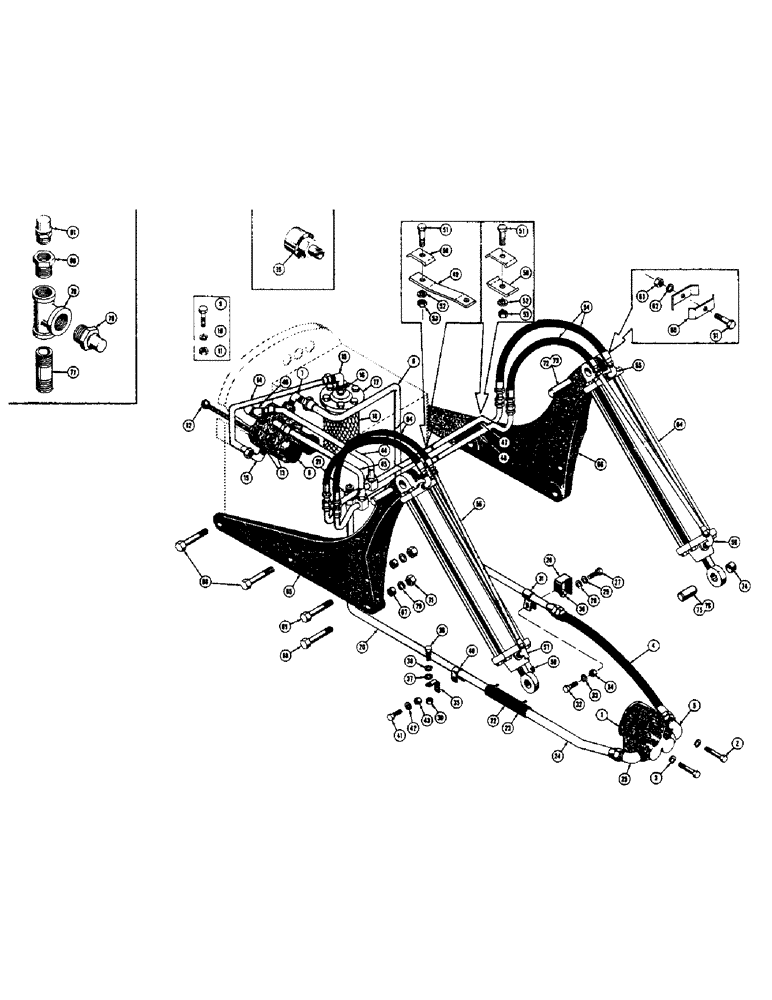

Запчасти Case 320 (160) - MECHANICAL DOZER HYDRAULICS, (SERIAL NO. 3003851 AND AFTER) (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
31615
CAP
PUMP - hydraulic, 15 G.P.M. (See figure 100 for breakdown)
1шт.
2
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
3
92-6
LOCK WASHER,3/8"
2шт.
4
35710
SPACER
HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 21-1/2")
1шт.
5
218-536
ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF
- male, 45 degrees (3/4" JIC x 3/4" NPT)
1шт.
6
37760
TUBE - pump to valve inlet, rear section
1шт.
7
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- male, 90 degrees (3/4" JIC x 3/4" NPT)
1шт.
8
NLS
NO LONGER SERVICED
VALVE - control (See figure 96 for breakdown) Use D24387
1шт.
D24387
SPOOL
VALVE - control (See figure 98 for breakdown)
1шт.
9
14-636
SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5
HHCS - 3/8 - 24 NF x 1-1/2
3шт.
95-6
WASHER,3/8"
- standard wrot () Not shown 3/8"
3шт.
10
92-6
LOCK WASHER,3/8"
3шт.
11
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8 - 24 NF)
3шт.
12
D20089
LEVER - control, valve
2шт.
13
221-4
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - pipe, 1/2" NPT square head
2шт.
14
D20333
TUBE - control valve outlet to reservoir (Enters filter from R.H. side - see 37761)
1шт.
37761
TUBE - control valve outlet to reservoir (Enters filter from front - see D20333) Not shown
1шт.
15
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- male, 90 degrees (3/4" JIC x 3/4" NPT)
2шт.
16
221-69
BUSHING
- hex. pipe, 1-1/4" NPT x 3/4" NPT
1шт.
17
38266
ARM
CAP - inlet, oil filter
1шт.
18
36442
FILTER
- hydraulic oil
1шт.
19
31543
BREATHER
FILTER - breather (See D11183)
1шт.
T14011
ELEMENT
- filter (Not shown)
1шт.
20
36312
NEEDLE BEARING
TUBE - return line, reservoir to pump inlet (Rear section)
1шт.
21
218-459
HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF
CONNECTOR - male, 1" JIC x 3/4" NPT
1шт.
22
32798
HOSE
- return line, reservoir to pump inlet (Center section) (1" I.D. x 1-1/2" O.D. x 6")
1шт.
23
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose
2шт.
24
36535
O-RING
TUBE - return line, reservoir to pump inlet (Rear section)
1шт.
25
218-547
ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF
- male, 45 degrees (1" JIC x 3/4" NPT)
1шт.
26
37753
BUSHING
BRACKET - tube clamp
1шт.
27
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2 - 20 NF x 1-1/2
1шт.
28
195-33
WASHER,1/2"
- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)
1шт.
29
92-8
LOCK WASHER,1/2"
1шт.
30
25-118
NUT,1/2"-20, G5
- hex. (1/2 - 20 NF)
1шт.
31
D20611
CLAMP - tube
1шт.
32
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
1шт.
33
92-5
LOCK WASHER,5/16"
1шт.
34
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
1шт.
35
37753
BUSHING
BRACKET - tube clamp
1шт.
36
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2 - 20 NF x 1
1шт.
37
195-33
WASHER,1/2"
- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)
1шт.
38
92-8
LOCK WASHER,1/2"
1шт.
39
25-118
NUT,1/2"-20, G5
- hex. (1/2 - 20 NF)
1шт.
40
49789
CLAMP
- tube
1шт.
41
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
1шт.
42
92-5
LOCK WASHER,5/16"
1шт.
43
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
1шт.
44
38242
TUBE
- L.H. rear valve port to rear manifold tube
1шт.
45
D20096
TUBE - L.H. front valve port to front manifold tube
1шт.
46
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- male, 90 degrees (5/8" JIC x 1/2" NPT)
2шт.
47
38241
SCREW
TUBE - manifold, rear
1шт.
48
38240
NUT
TUBE - manifold, front
1шт.
49
D20324
STRAP - support, clamp plate
1шт.
50
32978
PLATE ASSY.
PLATE - clamp
4шт.
51
14-524
BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5
HHCS - 5/16 - 24 NF x 1-1/2
3шт.
52
92-5
LOCK WASHER,5/16"
3шт.
53
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
3шт.
54
35543
HOSE
- rear manifold tube to upper cylinder port, also front manifold tube to lower cylinder port (Rear section) (1/2" I.D. x 7/8" O.D. x 28")
4шт.
55
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- male, 90 degrees (5/8" JIC x 1/2" NPT)
2шт.
56
38849
BOLT,Hex, M6 x 80mm, Cl 8.8
TUBE - front manifold tube to lower cylinder port (Front section) See 38259
2шт.
38259
TUBE - front manifold tube to lower cylinder port (Front section) High Lift Bulldozer only (See 38849)
2шт.
57
33888
ELBOW - special, 90 degrees (5/8" JIC x 1/2" NPT x 1/8" NPT)
1шт.
58
221-1
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, 1/8" NPT square head
1шт.
59
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- male, 90 degrees (5/8" JIC x 1/2" NPT)
1шт.
60
31665
COLLAR CLAMP
PLATE - clamp
4шт.
61
14-528
BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5
2шт.
62
92-5
LOCK WASHER,5/16"
2шт.
63
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
2шт.
64
17751
CYLINDER - Dozer lift, hydraulic (See figure 172 for breakdown) See 38137
2шт.
38137
CYLINDER - Dozer lift, hydraulic (See figure 174 for breakdown) High Lift Bulldozer only (See 17751)
2шт.
65
16692
BRACKET - cylinder, R.H.
1шт.
66
16693
CLAMP
BRACKET - cylinder, L.H.
1шт.
67
32799
SPACER - cylinder bracket
4шт.
68
14-1036
BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5
6шт.
69
14-1044
BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5
HHCS - 5/8 - 18 NF x 2-3/4
2шт.
71
25-1110
NUT,5/8"-18, G5
- hex. (5/8 - 18 NF)
8шт.
72
16726
PIN - mounting, cylinder to cylinder bracket
2шт.
73
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
74
17631
BUSHING - cylinder
2шт.
75
18743
PIN - mounting, Serial Range: cylinder-Dozer
2шт.
76
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
D11183
KIT - reservoir pressure control (See 31543)
1шт.
77
221-131
PIPE,Nipple, 1/4" NPT x 1"
NIPPLE - close pipe, 1/4" NPT x 1"
1шт.
78
221-431
TEE
- pipe, 1/4" NPT x 1/8" NPT
1шт.
79
R15538
VALVE
- relief, vacuum (2 to 5 P.S.I.)
1шт.
80
221-51
SUN VISOR,Hex, 1/4" x 1/8" NPT
BUSHING - hex. pipe, 1/4" NPT x 1/8" NPT
1шт.
81
R15536
VALVE
- relief, pressure (10 to 20 P.S.I.)
1шт.
Выбрано товаров: 88
