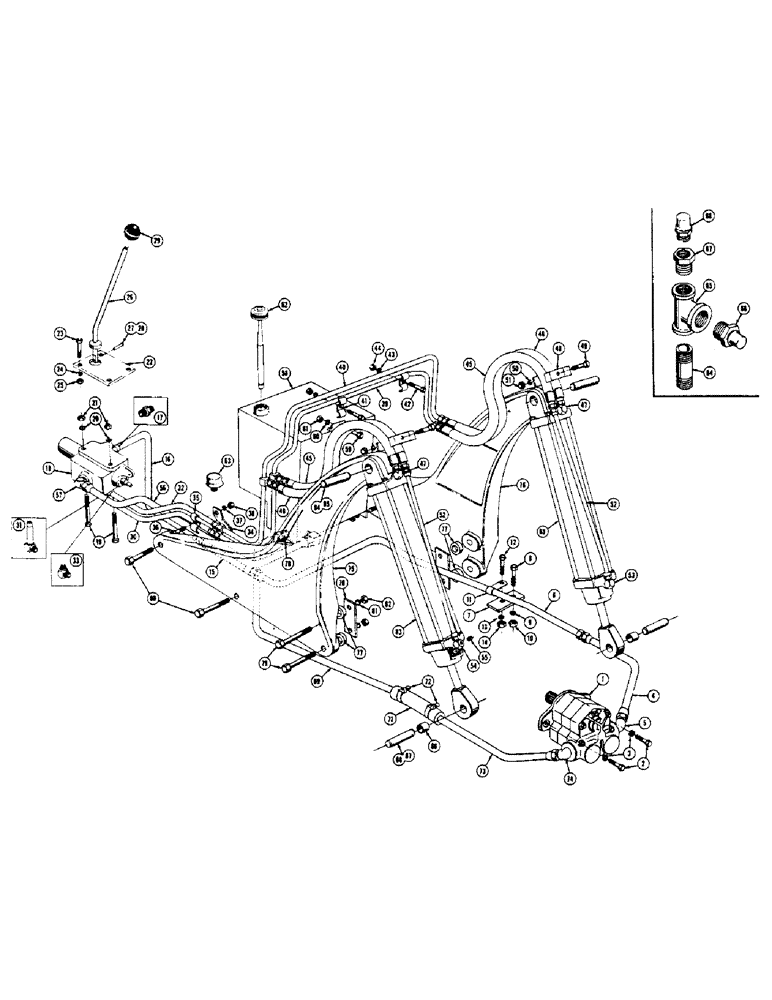

Запчасти Case 320 (156) - MECHANICAL DOZER HYDRAULICS, (UP TO SERIAL NO. 3003851) (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
31615
CAP
PUMP - hydraulic, 15 G.P.M. (See figure 100 for breakdown)
1шт.
2
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
3
92-6
LOCK WASHER,3/8"
2шт.
4
36537
TUBE - pump to valve inlet, front section
1шт.
5
218-536
ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF
- male, 45 degrees (3/4" JIC x 3/4" NPT)
1шт.
6
36539
HOSE
TUBE - pump to valve inlet, front center section
1шт.
7
34259
SHIM,.007" Thk
PLATE - support, tube clamp
1шт.
8
14-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd
HHCS - 5/16 - 24 NF x 1
1шт.
9
92-5
LOCK WASHER,5/16"
1шт.
10
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
1шт.
11
49789
CLAMP
- tube
1шт.
12
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
1шт.
13
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
14
25-104
NUT,1/4"-20, G5
1шт.
15
36541
HOSE - pump to valve inlet, rear center section (3/4" I.D. x 1-5/32" O.D. x 11")
1шт.
16
18943
TUBE - pump to valve inlet, rear section
1шт.
17
218-458
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF
CONNECTOR - male, 3/4" JIC x 1/2" NPT
1шт.
18
16130
TUBE
VALVE - control (See figure 92 for breakdown)
1шт.
19
14-872
X,Hex, 1/2" - 20 x 4 1/2", Gr 5
HHCS - 1/2 - 20 NF x 4-1/2
2шт.
20
92-8
LOCK WASHER,1/2"
2шт.
21
129-131
NUT,1 1/8"-12, G5
- hex. (1/2 - 20 NF)
2шт.
22
16694
PLATE - guide, valve control lever
1шт.
23
14-620
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5
HHCS - 3/8 - 24 NF x 1-1/4
4шт.
24
92-6
LOCK WASHER,3/8"
4шт.
25
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8 - 24 NF)
4шт.
26
16675
GUSSET
LEVER - control, valve
1шт.
27
141-2
CLEVIS PIN,1/4" x .770"
PIN - yoke, control lever to valve spool
1шт.
28
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
1шт.
29
CAS31375
KNOB
- control lever
1шт.
30
18952
TUBE - rear control valve port to lower manifold tube
1шт.
31
218-498
ELBOW - 90 degree male, extra long (5/8" JIC x 1/2" NPT) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG
1шт.
32
18953
TUBE - front control valve port to upper manifold tube
1шт.
33
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- male, 90 degrees (5/8" JIC x 1/2" NPT)
1шт.
34
18575
BRACKET - support, tube clamp
1шт.
35
17179
CLAMP - tube
1шт.
36
14-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd
HHCS - 5/16 - 24 NF x 1
1шт.
37
92-5
LOCK WASHER,5/16"
1шт.
38
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
1шт.
39
18946
TUBE - manifold, lower
1шт.
40
18949
TUBE - manifold, upper
1шт.
41
17179
CLAMP - tube
2шт.
42
14-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd
HHCS - 5/16 - 24 NF x 1
2шт.
43
92-5
LOCK WASHER,5/16"
2шт.
44
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
2шт.
45
35646
HOSE
- lower manifold tube to lower cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 22-3/4")
2шт.
46
18950
HOSE - upper manifold tube to upper cylinder port (1/2" I.D. x 7/8" O.D. x 22-3/4")
2шт.
47
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- male, 90 degrees (5/8" JIC x 1/2" NPT)
2шт.
48
32978
PLATE ASSY.
PLATE - clamp
4шт.
49
14-520
BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5
2шт.
50
92-5
LOCK WASHER,5/16"
2шт.
51
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
2шт.
52
35647
TUBE - lower manifold tube to lower cylinder port, front section
2шт.
53
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- male, 90 degrees (5/8" JIC x 1/2" NPT)
1шт.
54
33888
ELBOW - special, 90 degrees (5/8" JIC x 1/2" NPT x 1/8" NPT)
1шт.
55
221-1
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, 1/8" NPT square head
1шт.
56
18944
TUBE - control valve, Serial Range: outlet-reservoir
1шт.
57
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- male, 90 degrees (3/4" JIC x 3/4" NPT)
2шт.
58
13647
RESERVOIR - hydraulic oil
1шт.
59
14-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
HHCS - 3/8 - 24 NF x 1
2шт.
60
92-6
LOCK WASHER,3/8"
2шт.
61
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8 - 24 NF)
2шт.
62
35074
CAP - filler (Dipstick, Serial Range: welded-cap)
1шт.
63
31543
BREATHER
FILTER - breather, reservoir (See D11183)
1шт.
T14011
ELEMENT
- filter (Not shown)
1шт.
D11183
KIT - reservoir pressure control (See 31543)
1шт.
64
221-131
PIPE,Nipple, 1/4" NPT x 1"
NIPPLE - close pipe, 1/4" NPT x 1"
1шт.
65
221-431
TEE
- pipe, 1/4" NPT x 1/4" NPT x 1/8" NPT
1шт.
66
R15538
VALVE
- relief, vacuum (2 to 5 P.S.I.)
1шт.
67
221-51
SUN VISOR,Hex, 1/4" x 1/8" NPT
BUSHING - hex. pipe, 1/4" NPT x 1/8" NPT
1шт.
68
R15536
VALVE
- relief, pressure (10 to 20 P.S.I.)
1шт.
69
36533
TUBE - return line, reservoir to pump inlet (Rear section)
1шт.
70
218-448
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF
CONNECTOR - male, 1" JIC x 1" NPT
1шт.
71
32798
HOSE
- return line, reservoir to pump inlet (Center section) (1" I.D. x 1-1/2" O.D. x 6")
1шт.
72
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose
2шт.
73
36535
O-RING
TUBE - return line, reservoir to pump inlet (Front section)
1шт.
74
218-547
ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF
- male, 45 degrees (1" JIC x 3/4" NPT)
1шт.
75
16692
BRACKET - cylinder, R.H.
1шт.
76
16693
CLAMP
BRACKET - cylinder, L.H.
1шт.
77
32799
SPACER - cylinder bracket (11/16" I.D. x 1-3/8" O.D. x 1/2" thick)
4шт.
79
14-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 5
4шт.
80
14-1040
BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5
HHCS - 5/8 - 18 NF x 2-1/2
4шт.
82
25-1110
NUT,5/8"-18, G5
- hex. (5/8 - 18 NF)
8шт.
83
17751
CYLINDER - Dozer lift, hydraulic (See figure 172 for breakdown)
2шт.
84
18743
PIN -, Serial Range: cylinder-bracket
2шт.
85
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
86
17631
BUSHING - cylinder
2шт.
87
16726
PIN - cylinder to "C" frame
2шт.
88
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
