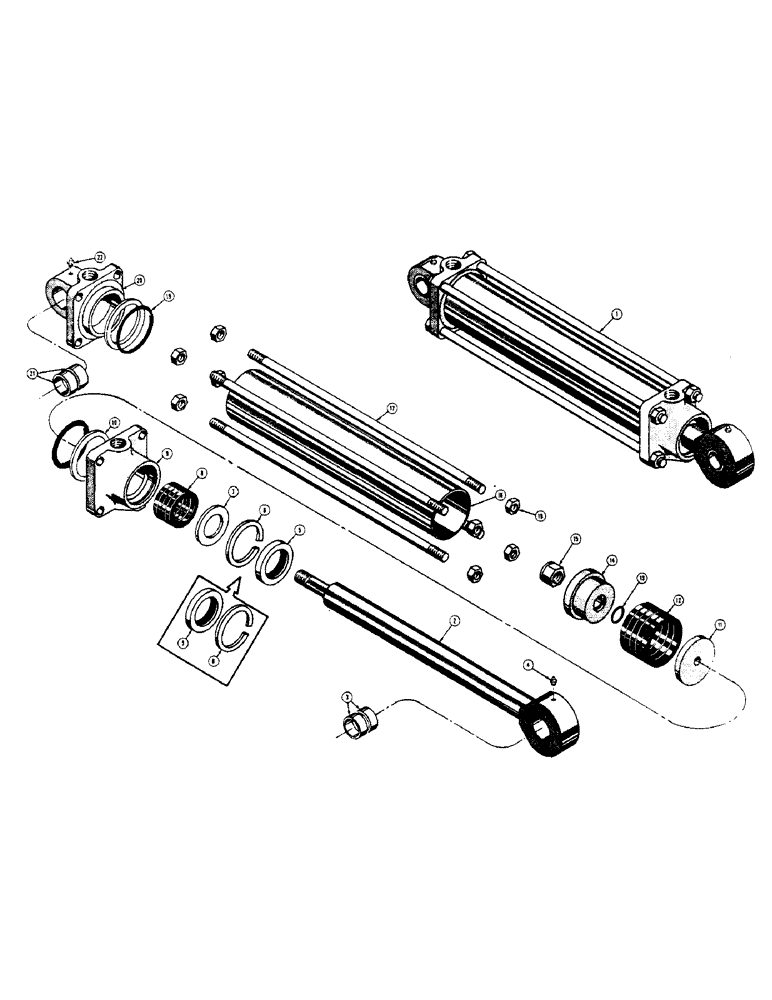

Запчасти Case 320 (122) - D23808 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D23808

CYLINDER - Loader bucket, hydraulic

2шт.

2

D20032

ROD - piston

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

17603

WIPER SEAL

- wiper, piston rod

1шт.

6

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

7

36259

WASHER

- packing, piston rod

1шт.

8

17597

PACKING

- piston rod

1шт.

9

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

30630

CARTRIDGE

WASHER - packing, piston

1шт.

12

17598

PACKING

- piston

1шт.

13

O3522CK

X

SEAL - "O" ring (Used with D23738 piston only)

1шт.

14

30631

X

PISTON - cylinder (No "O" ring) (Use D23738, D23739, and 03522CK)

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) (When replacing 30631 piston without "O" ring, also order 1 - 03522CK "O" ring and 1 - D23739 locknut)

1шт.

15

131-152

HARDWARE

NUT - lock (30631 piston only) (3/4" - 16 NF)

1шт.

D23739

LOCK NUT

NUT - lock (D23738 piston only) (3/4" - 16 NF)

1шт.

16

33771

TUBE - cylinder

1шт.

17

33769

ROD - tie

4шт.

18

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, tie rod (3/8" - 24 NF)

8шт.

19

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

20

D20038

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
