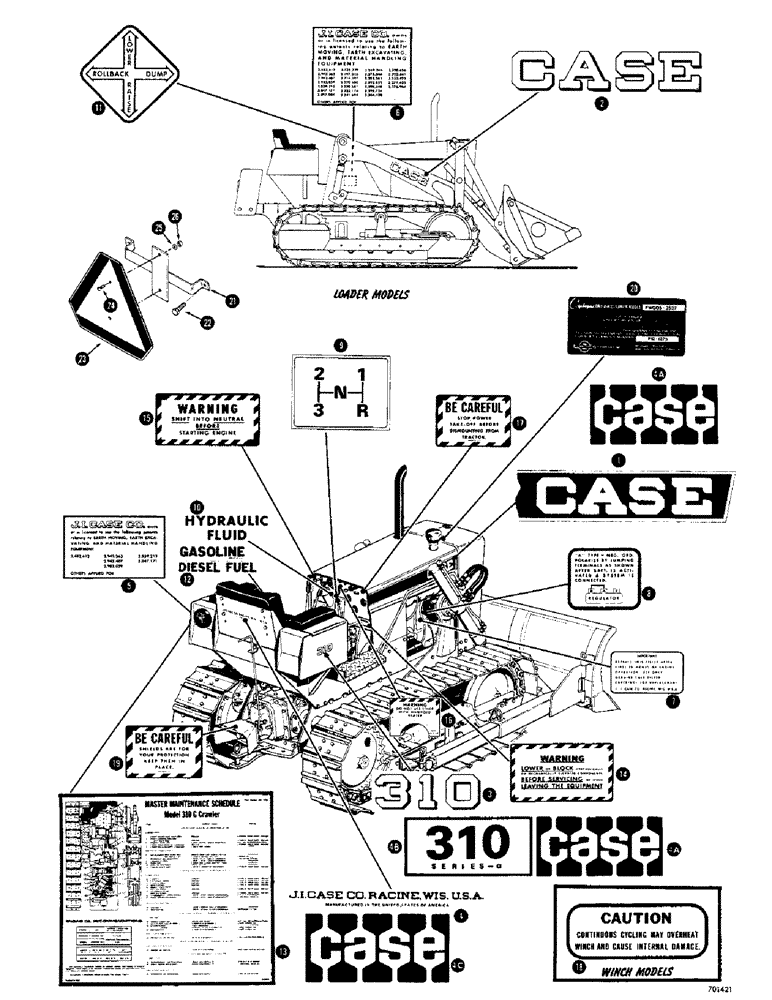

Запчасти Case 310G (276) - DECALS, EARLY PRODUCTION MODELS (05) - UPPERSTRUCTURE CHASSIS

1

321-1054

DECAL

- "Case", R.H. side of hood

1шт.

321-1055

DECAL

- "Case", L.H. side of hood

1шт.

2

321-675

DECAL

- "Case", loader lift arm

2шт.

3

321-713

DECAL

- "310", side of seat

2шт.

4

321-714

DECAL

- J.I. Case Co. Racine, Wisc. USA (Rear of seat), late production models

1шт.

4a

321-1438

DECAL

- Case, 3" high (On hood and tank), late production models

4шт.

4b

321-1476

DECAL

- 310, on tank, late production models

2шт.

4c

321-1441

DECAL

- Case, 5" high (On rear of tank), used on all models

1шт.

5

321-246

DECAL

- patent, basic crawler (L.H. side of seat), used on all models

1шт.

6

321-663

DECAL

- patent, loader (L.H. loader frame), used on all models

1шт.

7

321-367

DECAL

- oil filter replacement, R.H. side of engine, used on all models

1шт.

8

321-766

DECAL

- generator instructions, R.H. side of engine, used on all models

1шт.

9

321-1412

DECAL

- gear shift instructions, on dash, used on all models

1шт.

10

321-229

DECAL

- "Hydraulic fluid", on dash, used on all models

1шт.

11

321-920

DECAL

DASH - loader valve instructions, on dash, used on all models

1шт.

12

321-230

DECAL

- "Diesel fuel", fuel tank under seat, used on all models

1шт.

321-18

DECAL

- "Gasoline", on fuel tank under seat, used onall models

1шт.

13

321-1252

DECAL

- "Master maintenance schedule", under L.H. arm rest, used on all models

1шт.

14

321-339

DECAL

- Warning, block equipment (On dash or loader support), used on all models

1шт.

15

321-348

DECAL

- Warning, shift into neutral (On dash), used on all models

1шт.

16

321-1089

DECAL

- Warning, do not use ether with manifold heater (At ignition switch), used on all models

1шт.

17

321-605

DECAL

- Be careful, stop power take-of (Models with power take-off), used on all models

1шт.

18

321-912

DECAL

- Caution, winch (At winch controls), used on all models

1шт.

19

321-608

DECAL

- warning, do not remove guard (P.T.O. guard), used on all models

1шт.

20

321-1732

DECAL - air cleaner instructions (On air cleaner), used on all models

1шт.

21

D52031

SUPPORT - emblem, used on all models

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 1", used on all models

2шт.

23

A59449

NO LONGER SERVICED

EMBLEM - slow moving vehicle, used on all models

1шт.

24

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- flat head (#10 - 24 NC x 7/16"), used on all models

2шт.

25

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, , Used on all models #10

2шт.

26

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24NC), used on all models

2шт.

R24002

KIT

- decal (Includes all decals, except 1, 2, 3, 4, 17, 18, 19 and 321-18), used on all models

1шт.
