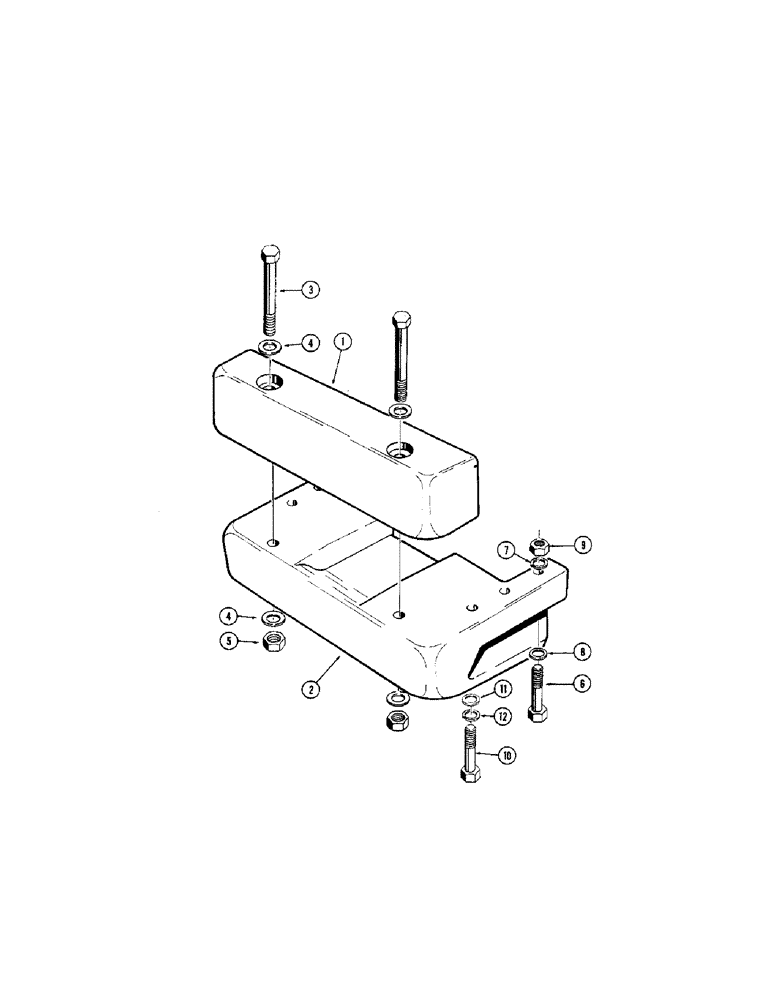

Запчасти Case 310G (258) - FRONT COUNTERWEIGHT, (DRAWBAR AND DOZER MODELS W/O BACKHOE) (05) - UPPERSTRUCTURE CHASSIS

1

R26023

WEIGHT

COUNTERWEIGHT - upper (90 lbs.)

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower (420 lbs.)

1шт.

3

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

2шт.

4

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, hex. (5/8" - 11 NC)

2шт.

6

26-846

BOLT,Hex, 1/2" - 13 x 2-7/8", Gr 8

HHCS - 1/2" - 13 NC x 3-1/4"

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

D26752

WASHER

- special

2шт.

9

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4-6шт.

10

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

HHCS - 1/2" - 13 NC x 3-1/2"

4шт.

11

D26752

WASHER

- special

4шт.

12

92-8

LOCK WASHER,1/2"

2шт.
