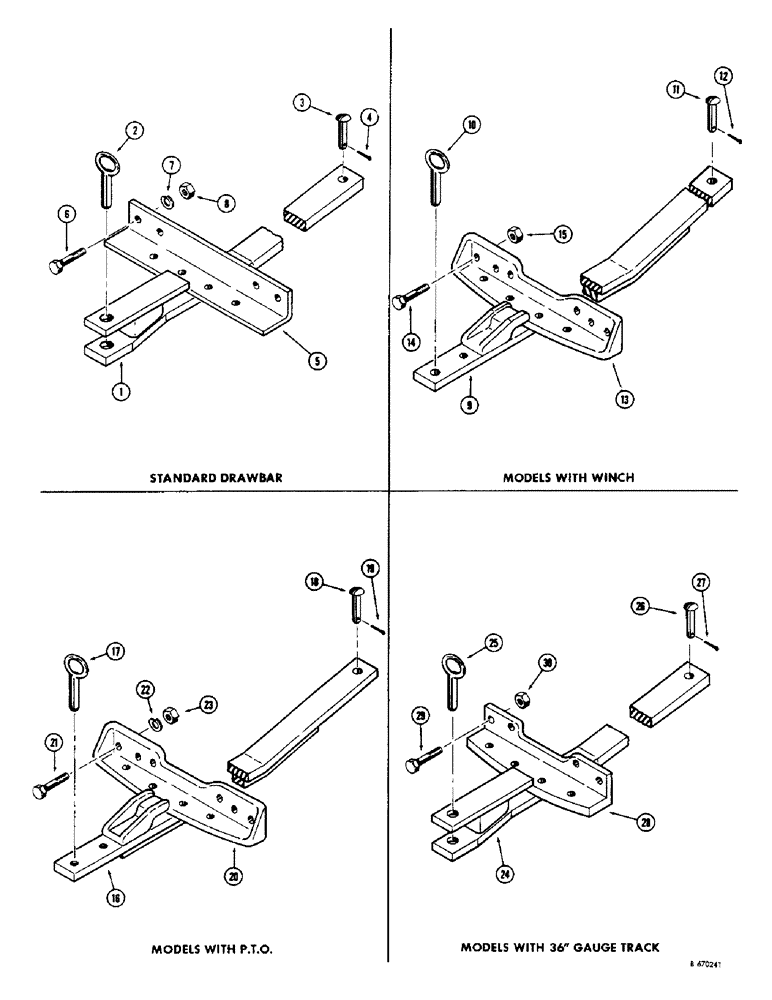

Запчасти Case 310G (256) - DRAWBARS, STANDARD DRAWBAR (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D46111
DRAWBAR
1шт.
2
13073
AXLE PIN
PIN - hitch, drawbar
1шт.
3
13044
NUT
PIN - mounting, drawbar
1шт.
4
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
1шт.
5
D40387
GUIDE - drawbar
1шт.
D43844
GUIDE - drawbar (42" gauge only)
1шт.
6
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
4шт.
8
25-1010
NUT,5/8"-11, G5
4шт.
9
D21843
DRAWBAR, models with winch
1шт.
10
13073
AXLE PIN
PIN - hitch, drawbar, models with winch
1шт.
11
13044
NUT
PIN - mounting, drawbar, models with winch
1шт.
12
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), , Models with winch 1/4" x 2"
1шт.
13
D35674
GUIDE - drawbar, models with winch
1шт.
14
D37830
HHCS - special, models with winch
2шт.
15
25-1010
NUT,5/8"-11, G5
Models with winch 5/8"-11, G5
2шт.
16
13109
PIN
DRAWBAR, models with PTO
1шт.
17
13073
AXLE PIN
PIN - hitch, drawbar, models with PTO
1шт.
18
13044
NUT
PIN - mounting, drawbar, models with PTO
1шт.
19
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), , Models with PTO 1/4" x 2"
1шт.
20
D35674
GUIDE - drawbar, models with PTO
1шт.
21
14-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 5
Models with PTO Hex, 5/8"-18 x 2", G5
4шт.
23
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF), models with PTO
4шт.
24
D46111
DRAWBAR, models with 36" guage track
1шт.
25
13073
AXLE PIN
PIN - hitch, drawbar, models with 36" guage track
1шт.
26
13044
NUT
PIN - mounting, drawbar, models with 36" guage track
1шт.
27
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), , Models with 36" gauge track 1/4" x 2"
1шт.
28
32662
RICE TOOTH
GUIDE - drawbar, models with 36" guage track
1шт.
30
25-1012
NUT,3/4"-10, G5
Models with 36" gauge track 3/4"-10, G5
2шт.
Выбрано товаров: 31
