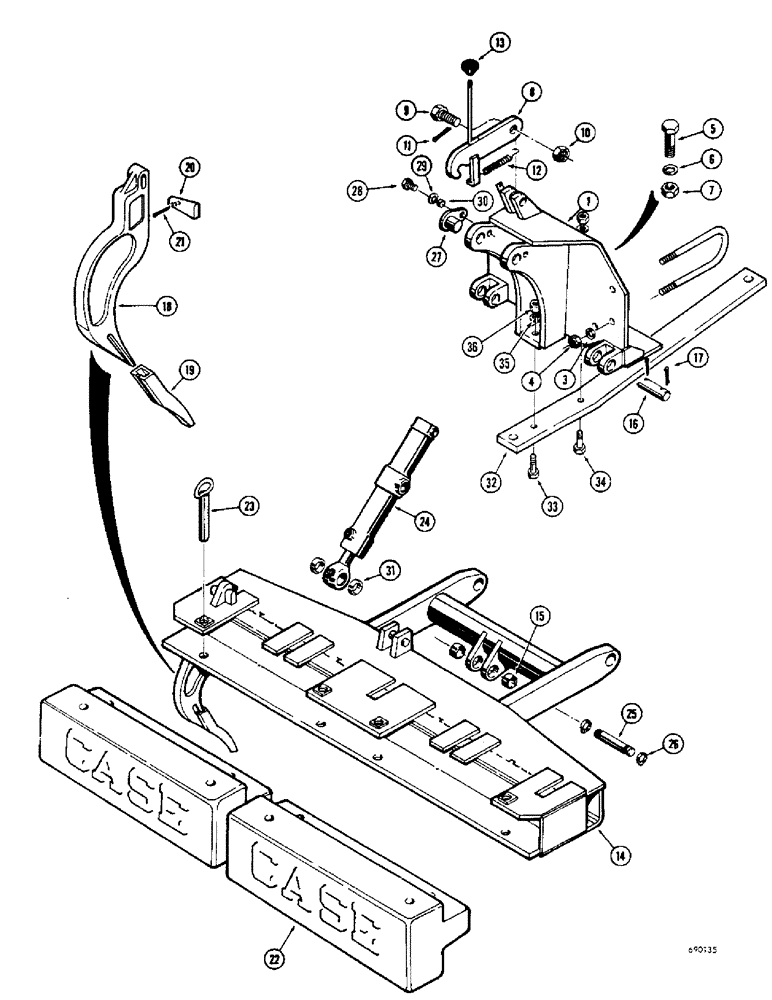

Запчасти Case 310G (194) - RIPPER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
REFERENCE
SPARE PART
FRAME - mounting, ripper
1шт.
2
31696
BOLT
"U" BOLT - mounting frame to final drive spacer
2шт.
4
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF)
4шт.
5
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
2шт.
7
25-1010
NUT,5/8"-11, G5
2шт.
8
D29985
LOCK
- transport safety
1шт.
9
D25951
BOLT
- special
1шт.
10
25-1220
SLOTTED NUT,1 1/4"-12, G5
NUT - hex., slotted (1-1/4" - 12 NF)
1шт.
12
11469
SPRING
- lock
1шт.
13
CAS31375
KNOB
- lock lever
1шт.
14
D33518
FRAME - ripper
1шт.
15
D32789
BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L
- frame
2шт.
16
31715
PIN
- mounting, ripper frame to mounting frame
2шт.
17
132-152
PIN
- cotter (1/4" x 1-3/4")
4шт.
18
D23748
TOOTH
- ripper
5шт.
19
D25598
TOOTH
POINT - ripper tooth
5шт.
20
D30592
WEDGE
RETAINER - wedge, ripper tooth
5шт.
21
132-148
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
5шт.
22
D28845
WEIGHT - ripper
2шт.
23
CAS19055
PIN ASSY.
PIN - retaining, weight
4шт.
24
REF
INSTRUCTION
CYLINDER - ripper (See Figures 240 and 241A for cylinders)
1шт.
25
D25995
PIN
- mounting, cylinder to ripper frame
1шт.
26
D26918
SNAP RING,#125, Ext
Ring, Snap, , mounting pin #125, Ext
2шт.
27
35031
PIN
- trunnion, cylinder to mounting frame
2шт.
28
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2" - 20 NF x 1"
2шт.
29
193-32
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, Int Tooth, 1/2"
2шт.
30
D23740
BUSHING
- 35031 mounting pin
2шт.
31
R15389
SPACER
- cylinder rod
2шт.
32
D45908
DRAWBAR - ripper only
1шт.
33
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
1шт.
34
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
1шт.
36
25-1010
NUT,5/8"-11, G5
2шт.
11
132-56
COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"
Pin, Split (Cotter), 1/8" x 2"
1шт.
Выбрано товаров: 36
