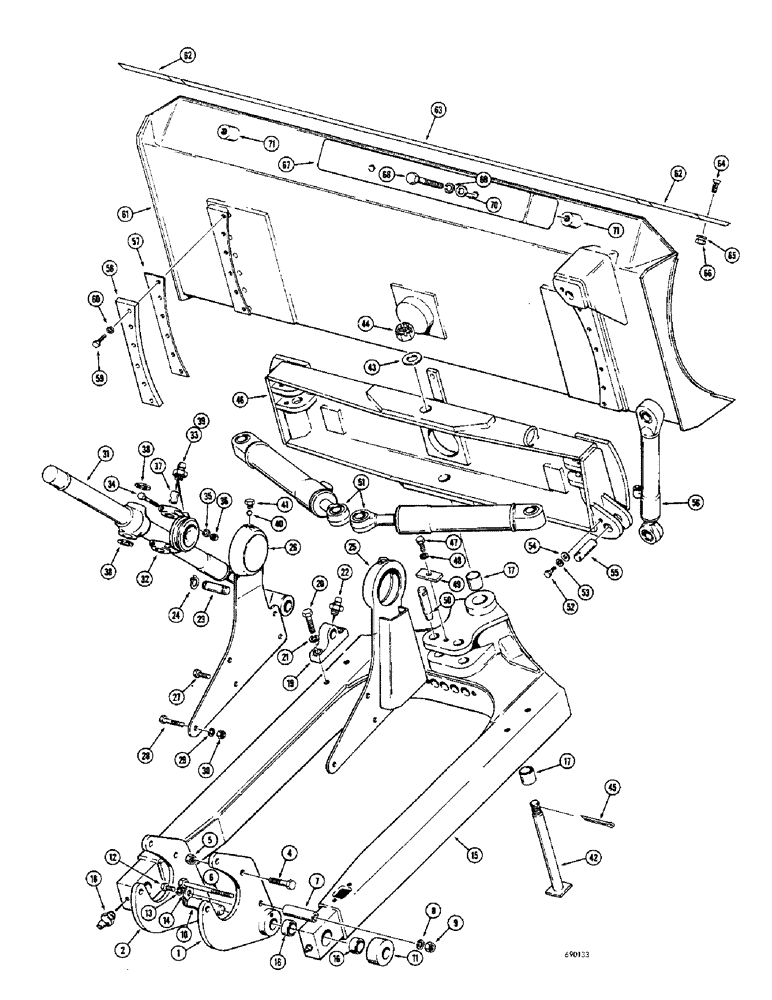

Запчасти Case 310G (188) - POWER ANGLE-TILT DOZER (CASE) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D45892
MOUNTING BRACKET - R.H., "C", Serial Range: frame-crawler
1шт.
2
D45891
MOUNTING BRACKET - L.H., "C", Serial Range: frame-crawler
1шт.
3
RESERVED
1шт.
4
13-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
6шт.
5
25-1012
NUT,3/4"-10, G5
4шт.
6
13-10120
BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5
HHCS - 5/8" - 11 NC x 7-1/2"
2шт.
7
D45903
SPACER
2шт.
9
25-1010
NUT,5/8"-11, G5
2шт.
10
D46458
AXLE PIN
PIN - mounting
2шт.
11
D45888
BLOCK - mounting
2шт.
12
13-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd
2шт.
14
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- special
2шт.
15
D45615
"C" FRAME - power angle-tilt
1шт.
16
D35071
BUSHING
- "C" frame mounting
4шт.
17
D30929
BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L
- at leveling beam
2шт.
18
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease, 45 degrees (1/8" NPT)
2шт.
19
D46466
BRACKET
MOUNTING BRACKET - lift cylinder to "C" frame
2шт.
20
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
4шт.
22
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
12шт.
23
D46467
PIN
- mounting
2шт.
24
D26918
SNAP RING,#125, Ext
Ring, Snap, , pin #125, Ext
4шт.
25
D48927
MOUNTING BRACKET - R.H., lift, Serial Range: cylinder-frame
1шт.
26
D48928
MOUNTING BRACKET - L.H., lift, Serial Range: cylinder-frame
1шт.
27
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
28
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
2шт.
30
25-1010
NUT,5/8"-11, G5
10шт.
31
REF
INSTRUCTION
CYLINDER - lift (See page 228 for cylinders)
2шт.
32
D24497
TRUNNION
- inner race
2шт.
33
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
34
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
HHCS - 3/8" - 16 NC x 3"
4шт.
35
92-6
LOCK WASHER,3/8"
4шт.
36
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
4шт.
37
D24508
PIN,31.74mm OD x 50.8mm L
- mounting, Serial Range: cylinder-trunnion
4шт.
38
D24516
WASHER
- special
4шт.
39
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
4шт.
40
211-17
BALL,3/4" Dia
- steel (.) 3/4" Dia
38шт.
41
D24506
PLUG
- special
2шт.
42
D46464
PIN
- pivot, leveling beam mounting
1шт.
43
95-22
WASHER,1 3/8" x 3 1/4" x .18"
- stand. wrot (1-3/8")
1шт.
44
25-1222
NUT
- hex., slotted (1-3/8" - 6 NC)
1шт.
45
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
1шт.
46
D46070
BEAM - leveling
1шт.
47
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
1шт.
48
92-8
LOCK WASHER,1/2"
1шт.
49
D46462
LARGE PLATE
PLATE - locking, pin
1шт.
50
D46461
PIN,31.75mm OD x 127mm L
- mounting, angling cylinder
4шт.
51
REF
INSTRUCTION
CYLINDER - angle (See Figure 232 for cylinders)
2шт.
52
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
4шт.
53
92-6
LOCK WASHER,3/8"
4шт.
54
39519
WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk
- special
4шт.
55
D46460
PIN
- mounting, tilt cylinder
2шт.
56
REF
INSTRUCTION
CYLINDER - tilt (See Figure 236 for cylinders)
1шт.
57
D49144
SHIM
- moldboard
1шт.
58
D45894
LARGE PLATE
PLATE - guide, moldboard
2шт.
59
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
12шт.
61
D45867
MOLDBOARD - machinery item
1шт.
63
D46465
EDGE
BLADE - cutting, center
1шт.
64
19-828
BOLT,1/2"-13 x 1 3/4", G5
- plow (1/2" - 13 NC x 1-3/4")
15шт.
65
92-8
LOCK WASHER,1/2"
15шт.
66
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
15шт.
67
D35480
COUNTERWEIGHT - dozer/backhoe (200 lbs), power angle tilt
2шт.
68
13-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
Counterweights for power angle tilt dozer/backhoe Hex, 3/4"-10 x 4 1/2", G5
4шт.
69
92-12
LOCK WASHER,3/4"
WASHER, LOCK, , Counterweights for power angle tilt dozer/backhoe 3/4"
4шт.
70
95-12
WASHER,3/4"
- std. wrot (), counterweights for power angle tilt dozer/backhoe 3/4"
4шт.
71
D35481
BOSS - mounting, counterweights for power angle tilt dozer/backhoe
4шт.
Выбрано товаров: 71
