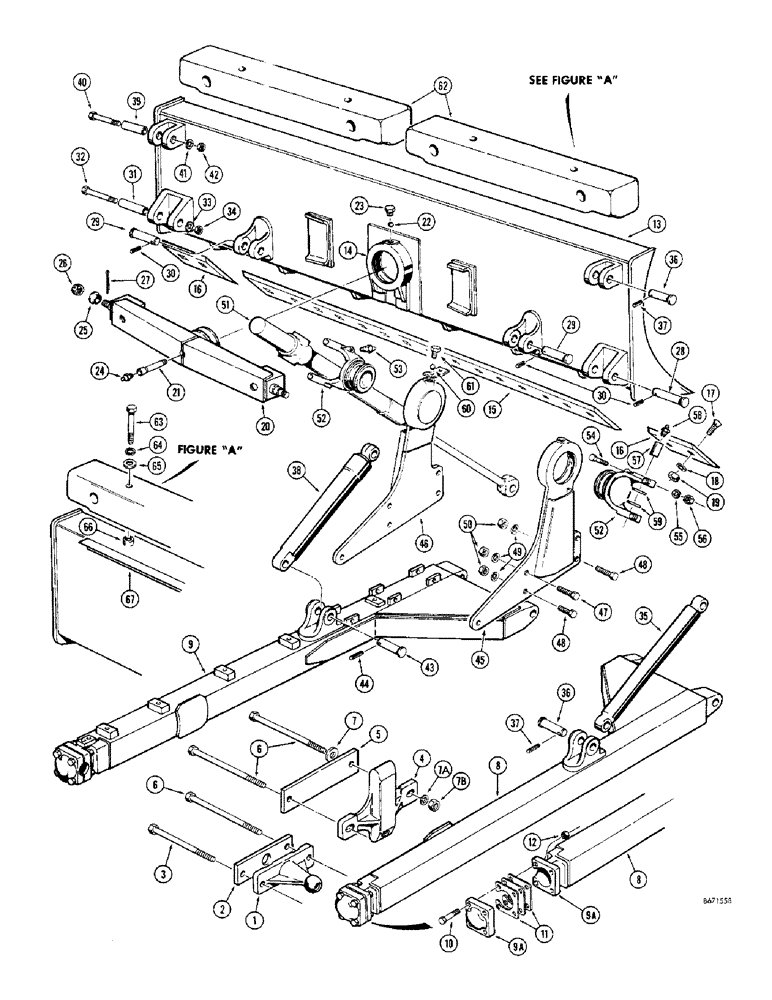

Запчасти Case 310G (174) - POWER TILT DOZER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D30587
TRUNNION - pivot, dozer attaching
2шт.
2
D30586
SPACER - trunnion
2шт.
3
14-12192
BOLT,Hex, 3/4" - 16 x 12", Gr 5
HHCS - 3/4" - 16 NF x 12"
2шт.
4
37992
PLATE - rub
2шт.
5
D30585
SPACER - rub plate
2шт.
6
14-12216
BOLT,Hex, 3/4" - 16 x 13-1/2", Gr 5
HHCS - 3/4" - 16 NF x 13-1/2"
6шт.
7
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special (3/4")
4шт.
7a
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
7b
25-1112
NUT,3/4"-16, G5
- hex. (3/4" - 16 NF)
8шт.
8
37881
CONDUIT
BEAM - push, R.H.
1шт.
9
37997
FORK
BEAM - push, L.H.
1шт.
37736
KIT - pivot bracket, 37881 and 37882 push beams
2шт.
9a
NSS
NOT SOLD SEPARAT
CAP ASSEMBLY - push beams
1шт.
10
14-848
BOLT,Hex, 1/2" - 20 x 3", Gr 5
HHCS - 1/2" - 20 NF x 3"
4шт.
11
37735
SHIM - pivot bracket (.0312")
1шт.
12
25-278
NUT,1/2"-20, G5, High
- hex. (1/2" - 20 NF)
4шт.
13
D25701
MOLDBOARD
1шт.
14
D27109
TRUNNION - outer race
1шт.
16
NLS
NO LONGER SERVICED
BLADE - cutting, outer
2шт.
17
19-828
BOLT,1/2"-13 x 1 3/4", G5
- plow (1/2" - 13 NC x 1-3/4")
19шт.
18
92-8
LOCK WASHER,1/2"
19шт.
19
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
19шт.
20
D25702
LEVELING ASSEMBLY - moldboard
1шт.
21
D25736
PIPE - lubrication, leveling assembly
1шт.
22
211-17
BALL,3/4" Dia
- steel (.) 3/4" Dia
19шт.
23
D24506
PLUG
- special (7/8" - 14 NF)
1шт.
24
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
1шт.
25
D25704
SPACER
2шт.
26
25-1212
NUT - hex., slotted (3/4" - 10 NC) 3/4"-10, G5
2шт.
27
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
2шт.
28
39222
PIN - R.H. push beam to moldboard, outer
1шт.
29
37990
PIN - push beam to moldboard, inner
2шт.
30
138-180
LOCK PIN,3/8" x 2 1/2", Slotted
PIN, 3/8" x 2 1/2", Slotted
3шт.
31
D20149
PIN - L.H. push beam to moldboard, outer
1шт.
32
13-896
BOLT,Hex, 1/2" - 13 x 6", Gr 5
1шт.
33
92-8
LOCK WASHER,1/2"
1шт.
34
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
1шт.
35
38158
STRUT - R.H. push, Serial Range: beam-moldboard
1шт.
36
37990
PIN - mounting, strut (Upper and lower)
2шт.
37
138-180
LOCK PIN,3/8" x 2 1/2", Slotted
PIN, 3/8" x 2 1/2", Slotted
2шт.
38
REF
INSTRUCTION
CYLINDER - tilt (See Figure 234 for cylinders)
1шт.
39
D20188
PIN - tilt, Serial Range: cylinder-moldboard
1шт.
40
13-888
BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5
1шт.
41
92-8
LOCK WASHER,1/2"
1шт.
42
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
1шт.
43
37990
PIN - tilt cylinder to L.H. push beam
1шт.
44
138-180
LOCK PIN,3/8" x 2 1/2", Slotted
PIN, 3/8" x 2 1/2", Slotted
1шт.
45
D48928
TRUNNION - cylinder, R.H. outer
1шт.
46
D48927
TRUNNION - cylinder, L.H. outer
1шт.
47
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
2шт.
48
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
50
25-1010
NUT,5/8"-11, G5
10шт.
51
REF
INSTRUCTION
CYLINDER - lift (See Figures 226 and 227A for cylinders)
2шт.
52
D24497
TRUNNION
- inner race
2шт.
53
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
54
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
HHCS - 3/8" - 16 NC x 3"
4шт.
55
92-6
LOCK WASHER,3/8"
4шт.
56
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
4шт.
57
D24508
PIN,31.74mm OD x 50.8mm L
- mounting, Serial Range: cylider-trunnion
4шт.
58
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
4шт.
59
D24516
WASHER
- special
4шт.
60
211-17
BALL,3/4" Dia
- steel (.) 3/4" Dia
38шт.
61
D24506
PLUG
- special
2шт.
62
D35480
COUNTERWEIGHT - dozer/backhoe (200 lbs.), power tilt
2шт.
63
13-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
Counterweights for power tilt dozer/backhoe Hex, 3/4"-10 x 4 1/2", G5
4шт.
64
92-12
LOCK WASHER,3/4"
WASHER, LOCK, , Counterweights for power tilt dozer/backhoe 3/4"
4шт.
65
95-12
WASHER,3/4"
- std. wrot (), counterweights for power tilt dozer/backhoe 3/4"
4шт.
66
D35481
BOSS - mounting, counterweights for power tilt dozer/backhoe
4шт.
67
D35483
BRACKET - support, counterweights for power tilt dozer/backhoe
1шт.
Выбрано товаров: 71
