Запчасти Case 310G (168) - POWER ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

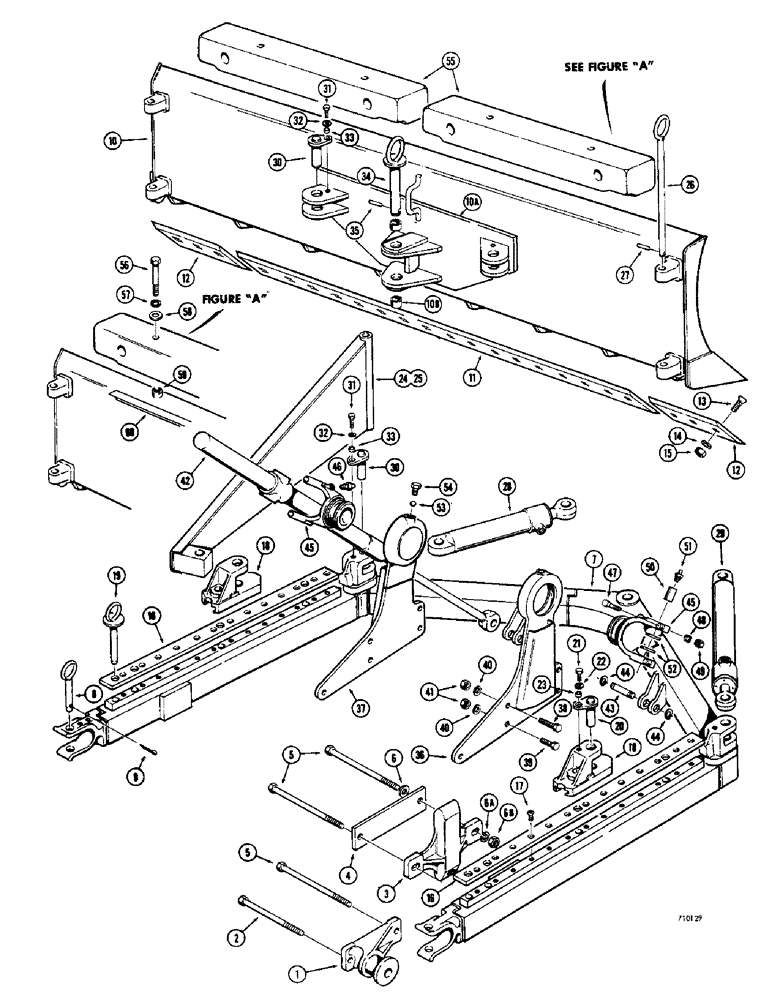

Схема запчастей Case 310G - (168) - POWER ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

D30596

BRACKET - pivot, dozer attaching

2шт.

2

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - 3/4" - 16 NF x 12"

2шт.

3

33961

CONNECTING LINK

PLATE - rub

2шт.

4

D30585

SPACER - rub plate

2шт.

5

14-12216

BOLT,Hex, 3/4" - 16 x 13-1/2", Gr 5

HHCS - 3/4" - 16 NF x 13-1/2"

6шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

6a

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

6b

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

8шт.

7

D29165

"C" FRAME

1шт.

8

16865

PIN - "C" frame to pivot bracket

2шт.

9

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

10

D51971

MOLDBOARD - dozer

1шт.

10a

R24026

KIT - backing plate, moldboard

1шт.

10b

D20201

BUSHING

- plate

2шт.

11

38047

EDGE

- cutting, center

1шт.

12

16042

EDGE

- cutting, outer

2шт.

13

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

23шт.

14

92-8

LOCK WASHER,1/2"

23шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

23шт.

16

37573

PLATE - slide

2шт.

17

164-132

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 3/4"

SHCS - slide plate (1/2" - 20 NF x 1-3/4")

26шт.

18

39127

BRACKET

- slide

2шт.

19

38070

LUBE NIPPLE

PIN - angling stop

2шт.

20

D28564

PIN - mounting, strut to slide bracket

2шт.

21

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2" - 20 NF x 3/4"

2шт.

22

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

23

D23740

BUSHING

- lockhead pin

2шт.

24

D20224

STRUT - slide bracket to moldboard, R.H.

1шт.

25

D20225

STRUT - slide bracket to moldboard, L.H.

1шт.

26

D20247

PIN - mounting, Serial Range: strut-moldboard

2шт.

27

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

28

REF

INSTRUCTION

CYLINDER - angling, L.H. (See page 230 for cylinders)

1шт.

29

REF

INSTRUCTION

CYLINDER - angling, R.H. (See page 230 for cylinders)

1шт.

30

31109

PIN ASSY.

PIN - mounting, angling cylinder to "C" frame and moldboard

4шт.

31

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2" - 20 NF x 3/4"

4шт.

32

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

33

D23740

BUSHING

- lockhead pin

4шт.

34

38072

PIN

- "C" frame to moldboard, center

1шт.

35

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

36

D48927

TRUNNION - cylinder, R.H. outer

1шт.

37

D48928

TRUNNION - cylinder, L.H. outer

1шт.

38

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

39

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

41

25-1010

NUT,5/8"-11, G5

10шт.

42

REF

INSTRUCTION

CYLINDER - lift (See pages 226 and 227A for cylinders)

2шт.

43

D30609

PIN,25.4mm OD x 95.25mm L

- mounting, lift cylinder to "C" frame

2шт.

44

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

- D30609 pin

4шт.

45

D24497

TRUNNION

- inner race

2шт.

46

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

47

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

48

92-6

LOCK WASHER,3/8"

4шт.

49

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

50

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

51

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

52

D24516

WASHER

- thrust, special

4шт.

53

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

54

D24506

PLUG

- special

2шт.

55

D35480

COUTERWEIGHT - dozer/backhoe (200 lbs.), power angling

2шт.

56

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Counterweights for power angling dozer/backhoe Hex, 3/4"-10 x 4 1/2", G5

4шт.

57

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Counterweights for power angling dozer/backhoe 3/4"

4шт.

58

95-12

WASHER,3/4"

- std. wrot (), counterweights for power angling dozer/backhoe 3/4"

4шт.

59

D35481

BOSS - mounting, counterweights for power angling dozer/backhoe

4шт.

60

D35483

BRACKET - support, counterweights for power angling dozer/backhoe

1шт.

Выбрано товаров: 64
