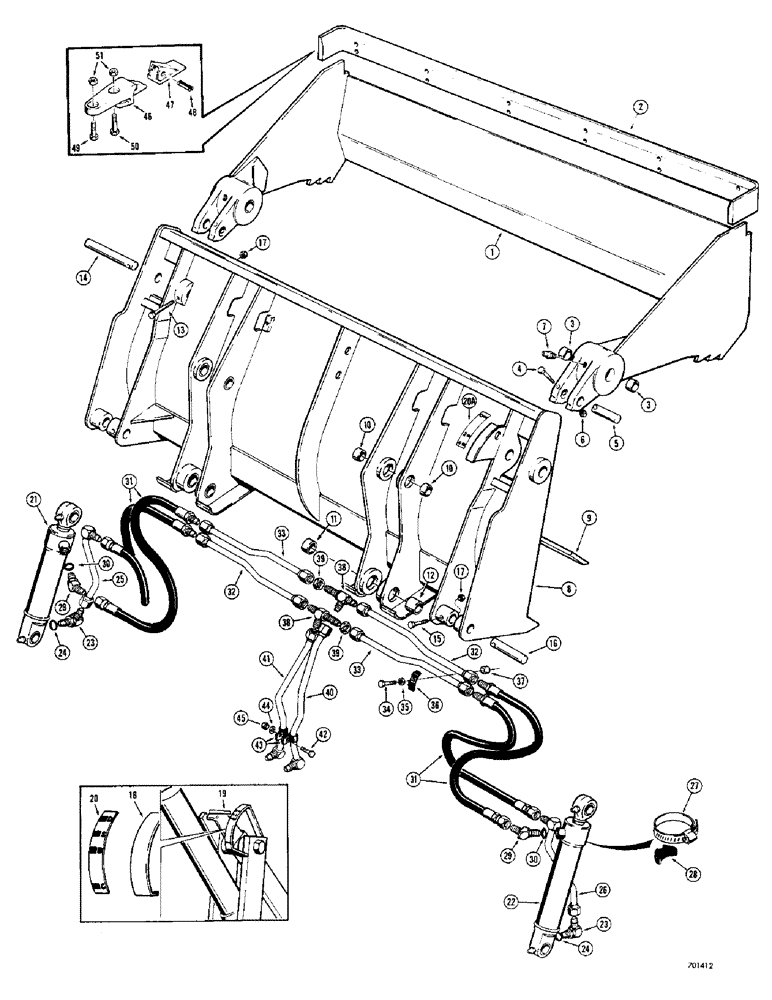

Запчасти Case 310G (159A) - D51664 4-IN-1 BUCKET (05) - UPPERSTRUCTURE CHASSIS

D51664

BUCKET - 4-in-1, 3/4 cu. yd. (Machinery item)

1шт.

1

D51663

CLAM ASSEMBLY - bucket

1шт.

2

D59584

CLIP

CUTTING - edge, one piece

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- pivot

4шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

D51391

PIN,15mm OD x 74mm L

, Serial Range: clam-blade

2шт.

6

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

8

D51665

BLADE ASSEMBLY - bucket

1шт.

9

D51678

EDGE, CUTTING

CUTTING EDGE - clam

1шт.

10

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- upper

4шт.

11

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- lower, inner

2шт.

12

D33054

BUSHING

- lower, outer

2шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

2шт.

14

D51392

PIN,31.72mm OD x 101.6mm L

- cylinder mounting, upper

2шт.

15

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

16

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower

2шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

NUT - hex., lock (3/8" - 16 NC)

4шт.

18

D51816

PLATE

INDICATOR - bucket position

1шт.

19

D51726

PIN

POINTER - bucket position

1шт.

20

321-1707

DECAL

- bucket position

1шт.

20a

321-1708

DECAL

- clamp opening

1шт.

21

G32286

CYLINDER

- clam, L.H. (Parts list Figure 225C)

1шт.

22

G32287

CYLINDER - clam, R.H. (Parts list Figure 225C)

1шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

D51619

TUBE

- L.H. cylinder, closed end

1шт.

26

D51621

TUBE

- R.H. cylinder, closed end

1шт.

27

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

28

D38648

BLOCK

SADDLE - rubber

2шт.

29

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- hydraulic (26" long)

4шт.

32

D51733

TUBE

- hydrauilc, R.H. upper and L.H. lower

2шт.

33

D51731

TUBE

- hydraulic, R.H. lower and L.H. upper

2шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

D40236

CLAMP

- tube

2шт.

37

D33552

BUSHING

SPACER - clamp

2шт.

38

D46898

3 WAY CONNECTION

TEE - bulk head

2шт.

39

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

40

D51617

TUBE

- vertical, R.H.

1шт.

41

D51615

TUBE

- vertical, L.H.

1шт.

42

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

38188

CLAMP

- tube

2шт.

44

92-5

LOCK WASHER,5/16"

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

D50780

TOOTH

ASSEMBLY, bucket

6шт.

46

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

47

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket

1шт.

48

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth

1шт.

49

113-633

SCREW

HHCS - 5/8" - 11 NC x 2-1/4", bucket teeth

6шт.

50

113-645

X

HHCS - 5/8" - 11 NC x 2-1/2", bucket teeth

6шт.

51

25-1010

NUT,5/8"-11, G5

Bucket teeth 5/8"-11, G5

12шт.
