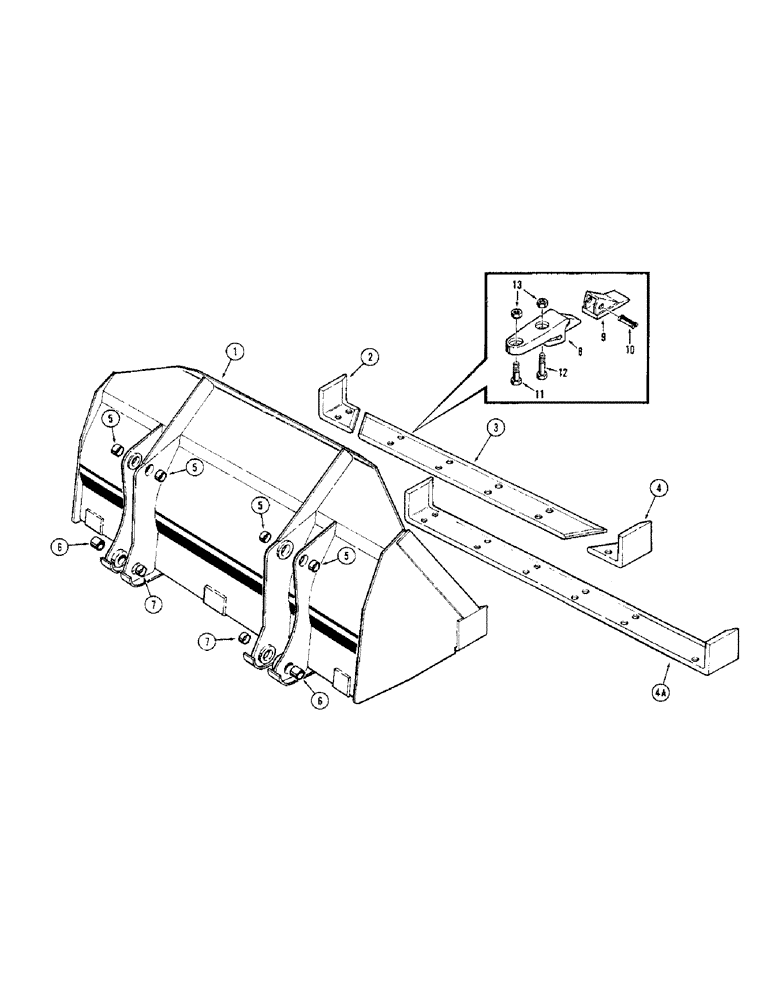

Запчасти Case 310G (152) - D49911 BUCKET (05) - UPPERSTRUCTURE CHASSIS

1

D49911

BUCKET - loader, 3/4" cu. yd. (Machinery item)

1шт.

2

D49584

EDGE - cutting, L.H.

1шт.

3

D49912

EDGE

- cutting, center

1шт.

4

D49583

EDGE - cutting, R.H.

1шт.

4a

D51885

EDGE

- cutting, one piece

1шт.

5

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- mounting, upper

4шт.

6

D33054

BUSHING

- mounting, lower (Outer)

2шт.

7

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- mounting, lower (Inner)

2шт.

D50780

TOOTH

ASSEMBLY, bucket optional

6шт.

8

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

9

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket optional

1шт.

10

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth optional

1шт.

11

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

HHCS - 5/8" - 11 NC x 2-1/4", bucket teeth optional

6шт.

12

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

HHCS - 5/8" - 11 NC x 2-1/2", bucket teeth optional

6шт.

13

25-1010

NUT,5/8"-11, G5

Bucket teeth optional 5/8"-11, G5

12шт.

D12363

HALF BLADE

BLADE - bulldozer (Machinery item)

1шт.
