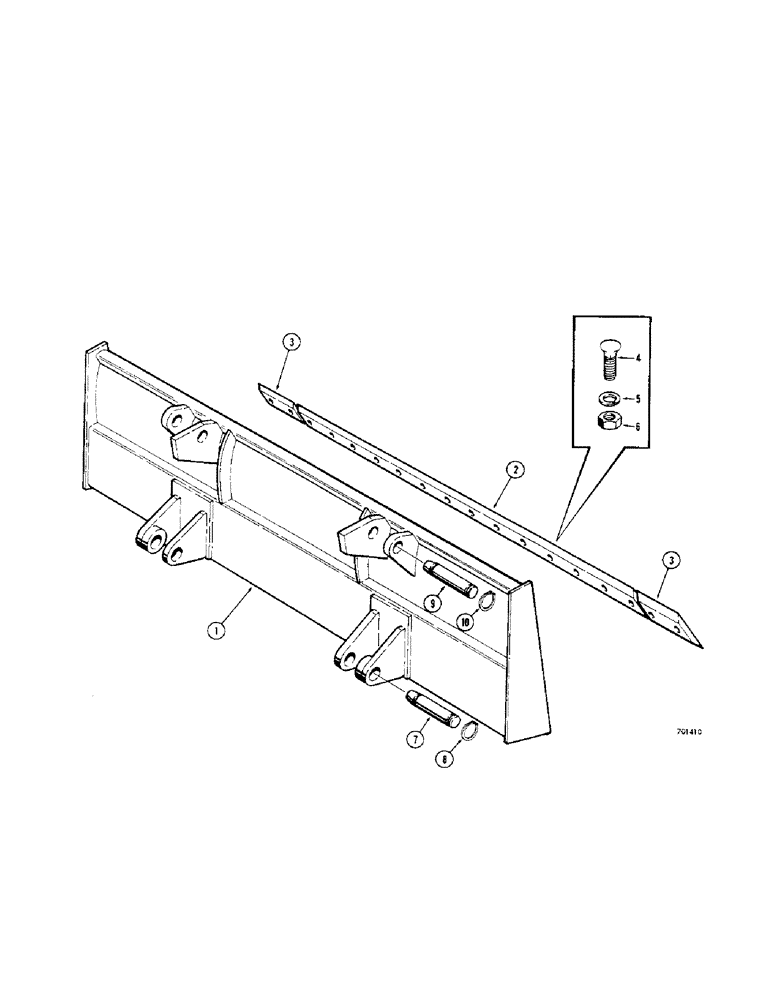

Запчасти Case 310G (152[1]) - BULLDOZER BLADE FOR DOZER (05) - UPPERSTRUCTURE CHASSIS

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - bulldozer

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

3

38150

EDGE

BLADE - cutting, end

2шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

18шт.

5

92-8

LOCK WASHER,1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

18шт.

7

D33146

AXLE PIN

PIN - mounting, lower

2шт.

8

D25280

SNAP RING,#175, Ext

Ring, Snap, , D33146 mounting pin #175, Ext

4шт.

9

D32931

PIN

- mounting, upper

2шт.

10

D25279

SNAP RING,M35, Int

- D32931 mounting pin

4шт.
