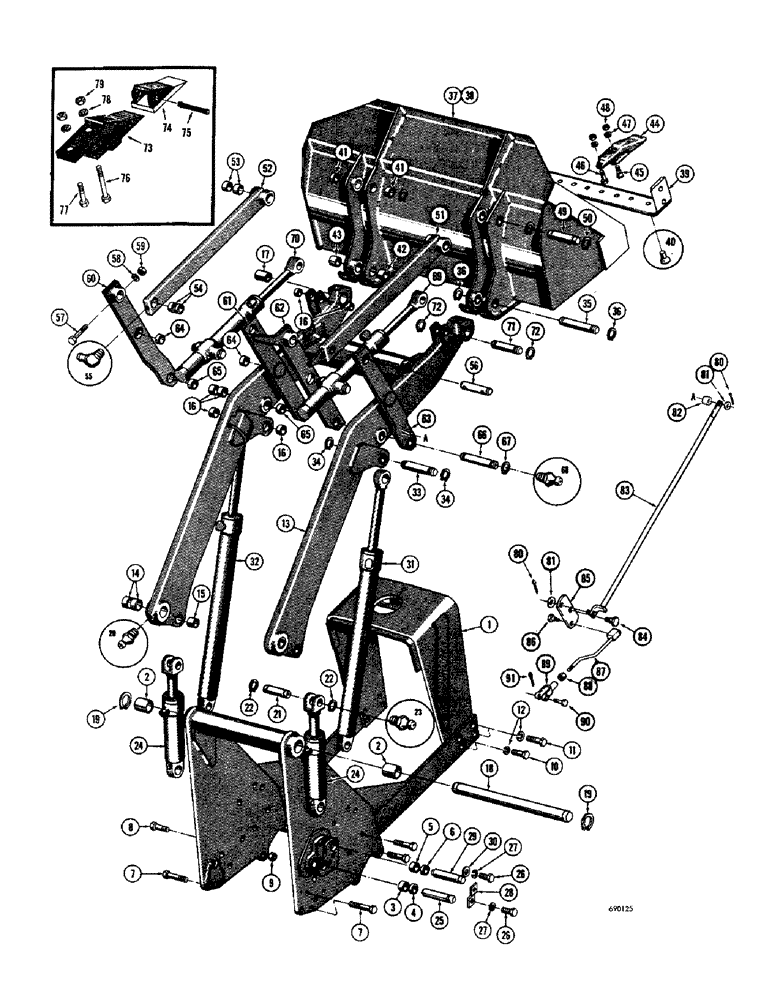

Запчасти Case 310G (148) - LOADER WITH ANTI - ROLL BACK (05) - UPPERSTRUCTURE CHASSIS

1

D43677

FRAME - loader, 42" gauge only

1шт.

1

D44383

FRAME - loader (48" gauge only)

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- lift arm pivot

2шт.

3

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

- hydra-leveling cylinder anchor, inner

2шт.

4

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- hydra-leveling cylinder anchor, outer

2шт.

5

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- lift cylinder anchor, inner

2шт.

6

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- lift cylinder, outer

2шт.

7

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

6шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

6шт.

9

25-1012

NUT,3/4"-10, G5

6шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

D33083

ARM ASSY.

ARM - loader, lift

1шт.

14

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- lift arm, rear pivot

4шт.

15

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

- hydra-leveling cylinder pivot

2шт.

16

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- lift cylinder pivot and dump link pivot

12шт.

17

D33094

BUSHING

- bucket pivot

2шт.

18

D33145

SHAFT - lift arm rear pivot

1шт.

19

D26919

SNAP RING,#200, Ext

Ring, Snap, , D33145 pivot shaft #200, Ext

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

21

D33833

AXLE PIN

PIN - mounting, hydra-leveling cylinder to lift arm

2шт.

22

D26918

SNAP RING,#125, Ext

Ring, Snap, , D33833 mounting pin #125, Ext

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

24

REF

INSTRUCTION

CYLINDER - hydra-leveling (See Figure 220 for cylinders)

2шт.

25

D33150

HEADED PIN

PIN - mounting, hydra-leveling cylinder to loader frame

2шт.

26

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

D33981

BRACKET

- retaining, D33150 mounting pin

2шт.

29

D33144

PIN - mounting, lift cylinder to loader frame

2шт.

30

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- retaining, D33144 mounting pin

2шт.

31

REF

INSTRUCTION

CYLINDER - lift, R.H. (See Figure 218 for cylinders)

1шт.

32

REF

INSTRUCTION

CYLINDER - lift, L.H. (See Figure 218 for cylinders)

1шт.

33

D33142

PIVOT PIN

PIN - mounting, lift cylinder to lift arm

2шт.

34

D25279

SNAP RING,M35, Int

- D33142 mounting pin

4шт.

35

D33146

AXLE PIN

PIN - mounting, bucket to lift arm

2шт.

36

D25280

SNAP RING,#175, Ext

Ring, Snap, , D33146 mounting pin #175, Ext

4шт.

37

D12351

BUCKET - loader (With teeth) Machinery item (3/4 cu. yd.)

1шт.

38

D12349

BUCKET - loader, without teeth (Machinery item) 3/4 cu. yd. (For service use D49911 bucket) Parts list Figure 152

1шт.

39

D33036

HALF BLADE

CUTTING EDGE

1шт.

40

46-828

RIVET,Csk, 1/2" x 1 3/4"

- countersunk head (1/2" x 1-3/4")

19шт.

41

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket hinge, upper

4шт.

42

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- inner bucket hinge, lower

2шт.

43

D33054

BUSHING

- outer bucket hinge, lower

2шт.

44

D33033

TOOTH

- digging

6шт.

45

18-840

BOLT

- plow (1/2" - 13 NC x 2-1/2")

6шт.

46

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

47

92-8

LOCK WASHER,1/2"

12шт.

48

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

12шт.

49

D32931

PIN

- mounting, bucket to dump arm

2шт.

50

D25279

SNAP RING,M35, Int

- D32931 mounting pin

4шт.

51

D33124

DRAG LINK

ARM - dump, R.H.

1шт.

52

D33125

ARM - dump, L.H.

1шт.

53

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- dump arm, bucket end

2шт.

54

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- dump arm, dump link end

2шт.

55

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

56

D33148

AXLE PIN

PIN - mounting, dump arm to dump link

2шт.

57

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.

59

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

60

D33137

LINK - dump, L.H. outer (Used before tractor SN 3042702)

1шт.

60

D49243

DRAG LINK

LINK - dump, L.H. outer (Used on tractor SN 3042702 and after)

1шт.

61

D33135

LINK - dump, L.H. inner (Used before tractor SN 3042702)

1шт.

61

D49242

DRAG LINK

LINK - dump, L.H. inner (Used on tractor SN 3042702 and after)

1шт.

62

D33130

LINK - dump, R.H. inner (Used before tractor SN 3042702)

1шт.

62

D49245

LINK - dump, R.H. inner (Used on tractor SN 3042702 and after)

1шт.

63

D43925

LINK - dump, R.H. outer (Used before tractor SN 3042702)

1шт.

63

D49244

DRAG LINK

LINK - dump, R.H. outer (Used on tractor SN 3042702 and after)

1шт.

64

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- dump link, center (Used on all dump links)

1шт.

65

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- dump link, lower (Used on all dump links)

1шт.

66

D34656

PIN,38.1mm OD x 101.6mm L

- mounting, dump link to lift arm

2шт.

67

D25279

SNAP RING,M35, Int

- mounting pin

4шт.

68

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

69

REF

INSTRUCTION

CYLINDER - dump, R.H. (See Figures 222 and 223A for proper cylinders)

1шт.

70

REF

INSTRUCTION

CYLINDER - dump, L.H. (See Figures 222 and 223A for proper cylinders)

1шт.

71

D33140

AXLE PIN

PIN - mounting, dump cylinder to lift arm

2шт.

72

D25279

SNAP RING,M35, Int

- D33140 mounting pin

4шт.

D40449

TOOTH

ASSEMBLY - optional

6шт.

73

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

74

D39093

TOOTH

POINT - tooth

1шт.

75

D39094

BUCKET TOOTH KEY

FLEX PIN - point

1шт.

76

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

77

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

6шт.

78

92-8

LOCK WASHER,1/2"

12шт.

79

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

12шт.

80

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Anti-rollback 1/8" x 3/4"

2шт.

81

195-33

WASHER,1/2"

- flat (), anti-rollback 1/2"

2шт.

82

D43923

SPACER

- rollback link to R.H. dump link, anti-

1шт.

83

D43928

LINK - anti-roll back

1шт.

84

A14265

STUD

BOLT - special, anti-rollback

1шт.

85

D43782

LINK

- pivot, anti-rollback

1шт.

86

D43780

BOLT (SPREADER)

BOLT - special, anti-rollback

1шт.

87

D46102

ROD

- adjusting, anti-roll back

1шт.

88

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF), anti-rollback

1шт.

89

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis, anti-rollback

1шт.

90

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Anti-rollback 3/8" x 1.060"

1шт.

91

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Anti-rollback 3/32" x 5/8"

1шт.
