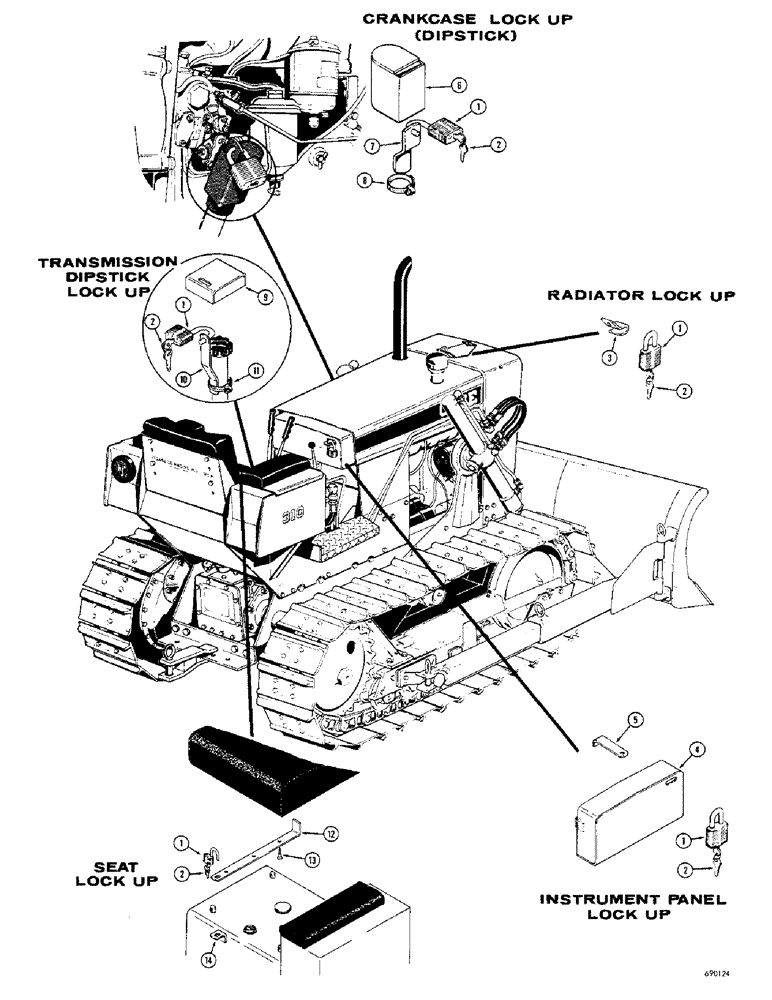

Запчасти Case 310G (142) - LOCK UP PARTS (05) - UPPERSTRUCTURE CHASSIS

D14424

KIT - lock up, loader models only (Machinery item)

1шт.

D14425

KIT - lock up, drawbar and dozer models only (Machinery item)

1шт.

1

D40678

LOCK

PADLOCK - crawler lockup, key

5шт.

2

D40679

KEY

- set of 2, padlock & key

1шт.

3

D41254

CLIP

- radiator lockup (Dozer and drawbar models only)

1шт.

3

D42128

CLIP - radiator lockup (Loader models)

1шт.

4

D44511

GUARD - instrument panel lockup

1шт.

5

D45389

STRAP

- locking (Use existing hardware), instrument panel lockup

1шт.

6

D41240

CAP

- dipstick lockup, engine

1шт.

7

D41253

STRAP

- locking, engine dipstick lockup

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - dipstick lock, engine

1шт.

9

D44502

LOCK

CAP - transmission dipstick lock up

1шт.

10

D44505

STRAP - locking, transmission dipstick

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - transmission dipstick locking

1шт.

12

D44508

ASSEMBLY

STRAP - seat locking

1шт.

13

184-69

SCREW - wood, seat lockup

3шт.

14

D44501

ANGLE - locking, seat

1шт.
