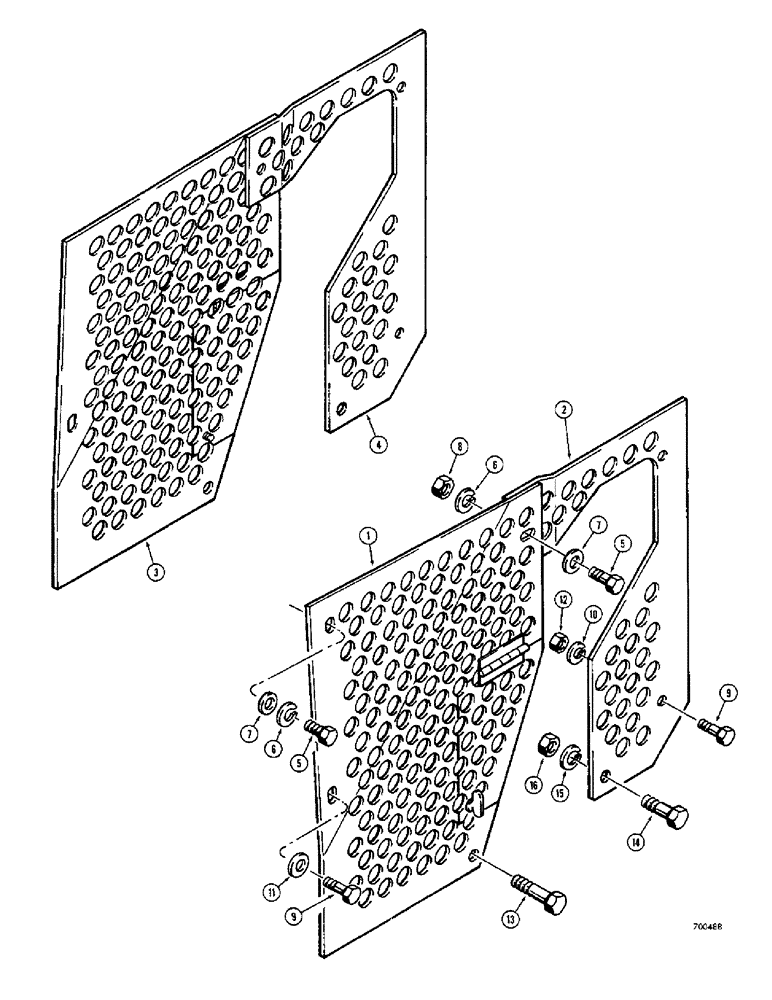

Запчасти Case 310G (141A) - ENGINE BRUSH GUARDS (DOZER MODELS) (05) - UPPERSTRUCTURE CHASSIS

1

D50539

GUARD - brush, R.H. side (Rear)

1шт.

2

D50520

GUARD - brush, R.H. side (Front)

1шт.

3

D50540

GUARD - brush, L.H. side (Rear)

1шт.

4

D50521

GUARD - brush, L.H. side (Front)

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

195-25

WASHER,3/8"

- flat () 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

9

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

195-33

WASHER,1/2"

- flat () 1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

13

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

14

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

25-1010

NUT,5/8"-11, G5

4шт.
