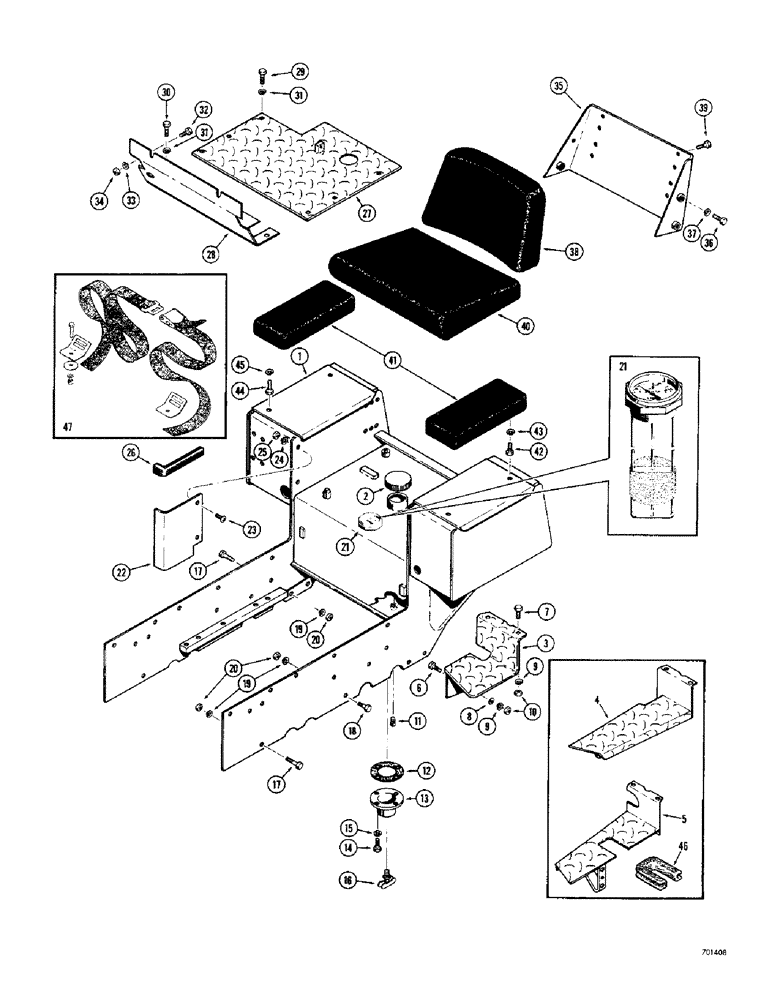

Запчасти Case 310G (136) - SEAT, TANK, FLOOR PLATES, AND STEP PLATES (05) - UPPERSTRUCTURE CHASSIS

1

D48504

TANK

SEAT AND TANK

1шт.

2

CASE10731

FILLER CAP

CAP - filler

1шт.

3

D33200

PLATE - step (Use on loader models only)

1шт.

4

D33995

PLATE - step, L.H. (Use on drawbar and dozer models only)

1шт.

5

D33996

PLATE - step, R.H. (Use on drawbar and dozer models only)

1шт.

D43845

PLATE - step, R.H. (Use on 42" gauge drawbar and dozer models only)

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2-4шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2-4шт.

8

195-25

WASHER,3/8"

- flat () 3/8"

2-4шт.

9

92-6

LOCK WASHER,3/8"

4-8шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) 4 - used on loader models and 8 - used on drawbar and dozer models

4-8шт.

11

221-12

PLUG,Sq Hd, 1/4"-18

- pipe (1/4" NPT)

1шт.

12

35621

GASKET

- drain cover

1шт.

13

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

14

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

217-81

VALVE

DRAINCOCK - fuel tank

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

6шт.

18

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

8шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.

21

D43838

GAUGE

- fuel

1шт.

22

D37821

SHIELD - head, control valve (Use on models with equipment hydraulics only)

1шт.

23

173-250

RHMS - 3/8" - 16 NC x 1"

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

26

D33500

LINING

TRIM - rubber, guard

1шт.

27

D38925

PLATE - floor, rear

1шт.

28

D33226

FLOOR

PLATE - floor, front

1шт.

29

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

8шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

35

D33263

SUPPORT - seat back, adjustable

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

D44169

CUSHION

- seat back

1шт.

39

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

40

D44386

CUSHION ASSY.

CUSHION - seat

1шт.

41

D27693

ARMREST

CUSHION - arm rest

2шт.

42

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

44

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

45

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

46

D49094

LINING

TRIM - Quickedge, R.H. step plate

1шт.

47

D44411

SEAT

BELT - seat, machinery item (Includes hardware)

1шт.
