Запчасти Case 310G (110) - STEERING LEVERS, CLUTCH AND BRAKE PEDALS (05) - UPPERSTRUCTURE CHASSIS

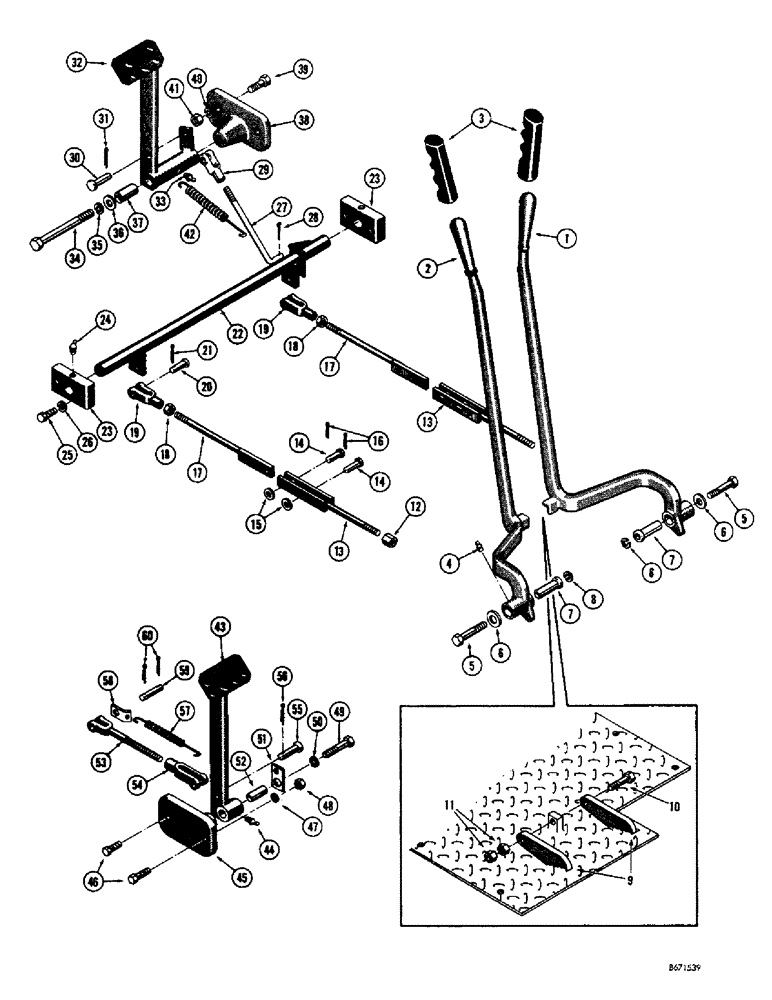

Схема запчастей Case 310G - (110) - STEERING LEVERS, CLUTCH AND BRAKE PEDALS (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

D33558

LEVER - steering, R.H.

1шт.

2

D33559

LEVER

- steering, L.H.

1шт.

3

31400

CLAMP

GRIP - steering lever

2шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight (1/4" drive type)

2шт.

5

13-960

BOLT,Hex, 9/16" - 12 x 3-3/4", Gr 5

HHCS - 9/16" - 12 NC x 3-3/4"

2шт.

6

195-37

WASHER,9/16"

- flat () 9/16"

2шт.

7

35504

BUSHING

- steering lever

2шт.

8

92-9

BEARING WASHER,9/16"

2шт.

9

33604

RATCHET

- steering lever

2шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

12

11471

NUT

- special

2шт.

13

D33561

LINK

- steering, Serial Range: lever-transmission

2шт.

14

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

15

195-22

WASHER

- flat (3/8")

4шт.

16

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

17

D33562

LINK

- brake shaft to steering lever

2шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, adjustable

2шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

21

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

22

D33560

SHAFT - brake linkage

1шт.

23

D25269

BLOCK

BEARING - block, brake shaft

2шт.

24

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

2шт.

25

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

D25249

ROD

- brake pedal to brake shaft

1шт.

28

132-48

COTTER PIN,1/8" x 1"

PIN - cotter (1/8" x 7/8")

1шт.

29

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - brake pedal rod

1шт.

30

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis (1/2")

1шт.

31

132-48

COTTER PIN,1/8" x 1"

PIN - cotter (1/8" x 7/8")

1шт.

32

D33194

PEDAL - brake

1шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

34

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

1шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

36

195-41

WASHER,5/8"

1шт.

37

11031

SPACER

BUSHING - brake pedal

3шт.

38

D43843

BRACKET - mounting, brake pedal

1шт.

39

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

40

92-7

LOCK WASHER,7/16"

2шт.

41

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

2шт.

42

11469

SPRING

- return, brake pedal

1шт.

43

D33188

PEDAL - clutch

1шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

45

D43843

BRACKET - mounting, clutch pedal

1шт.

46

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

47

92-7

LOCK WASHER,7/16"

2шт.

48

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

2шт.

49

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

50

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

51

11470

BEARING

ANCHOR - clutch return spring

1шт.

52

11031

SPACER

BUSHING - clutch pedal

1шт.

53

D26521

ROD - clutch

1шт.

54

213-50

ADJUSTABLE CLEVIS,1/2"-20 x 4 3/16"

YOKE - clutch rod

1шт.

55

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis (1/2")

1шт.

56

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

57

11469

SPRING

- return, clutch pedal

1шт.

58

NLS

NO LONGER SERVICED

- clutch return spring

1шт.

59

30623

KIT

PIN - yoke

1шт.

60

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

Выбрано товаров: 60
