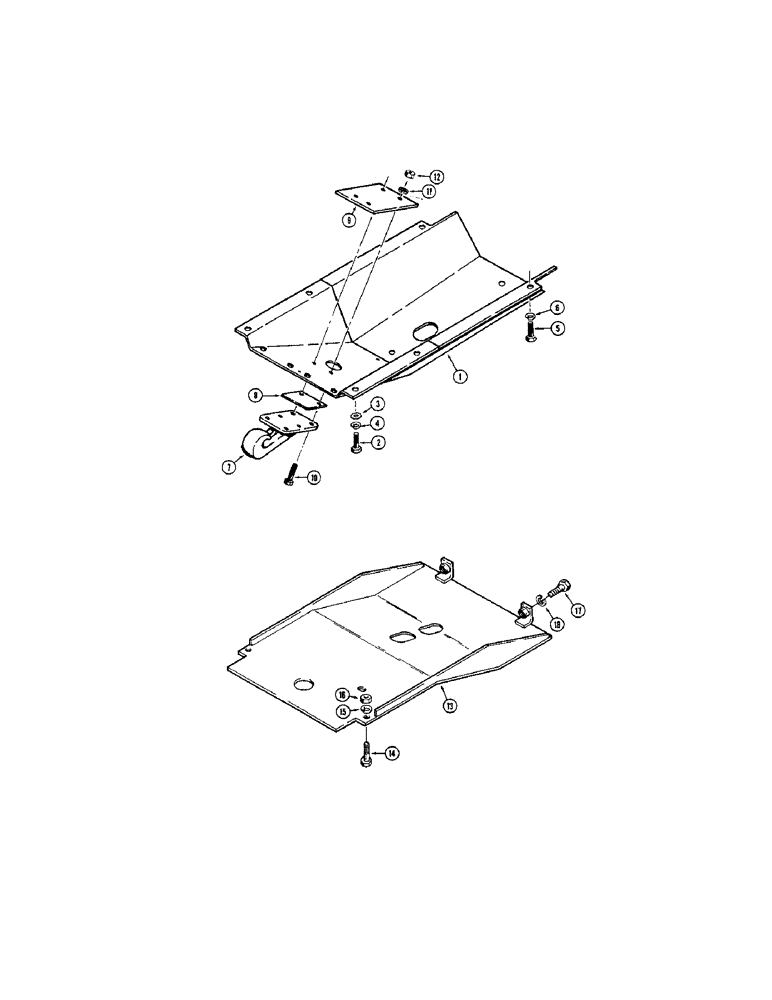

Запчасти Case 310G (138) - CRANKCASE, TRANSMISSION GUARD AND PULL HOOK, SPECIAL (04) - UNDERCARRIAGE

1

D26694

GUARD - crankcase (Use on all models except backhoe)

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

3

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

10940

HOOK

- pull

1шт.

8

36718

BRAKE BAND

SHIM - mounting, pull hook

1шт.

9

32123

LEVER

PLATE - doubler, pull hook

1шт.

10

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

13

D46107

GUARD - transmission (Use on all models except backhoe and combination dozer models)

1шт.

14

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

2шт.

17

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
