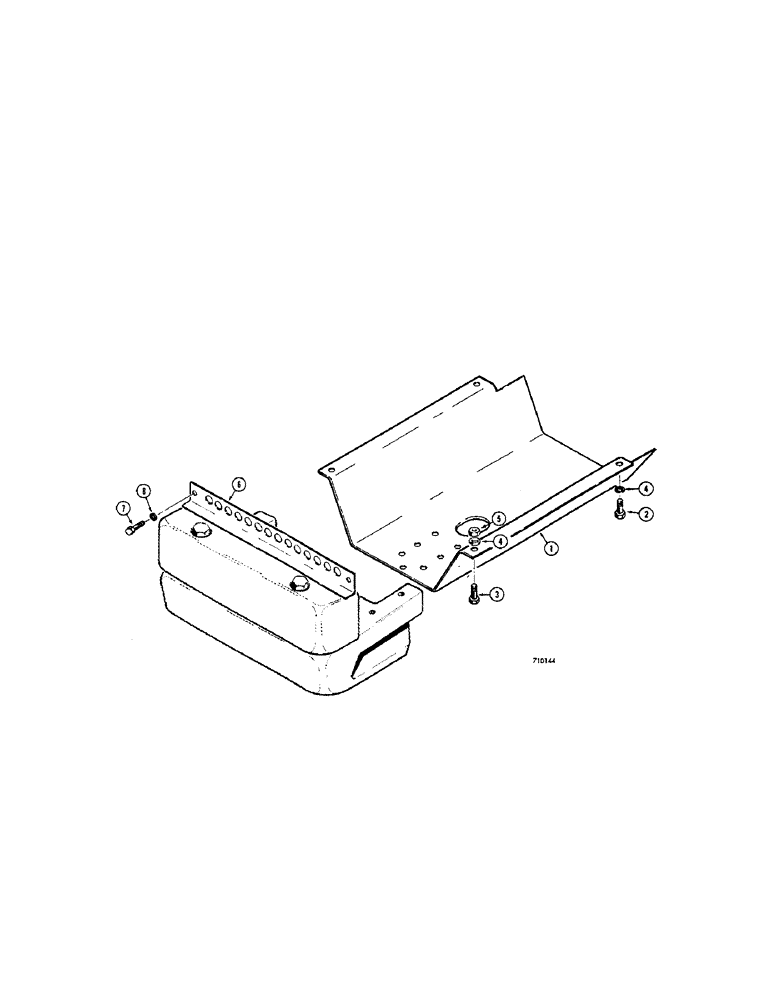

Запчасти Case 310G (138[1]) - SPECIAL CRANKCASE GUARD (04) - UNDERCARRIAGE

1

D34006

GUARD - crankcase (Use on drawbar, dozer and backhoe models only)

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

6

D51326

PLATE

- cover

1шт.

7

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.
