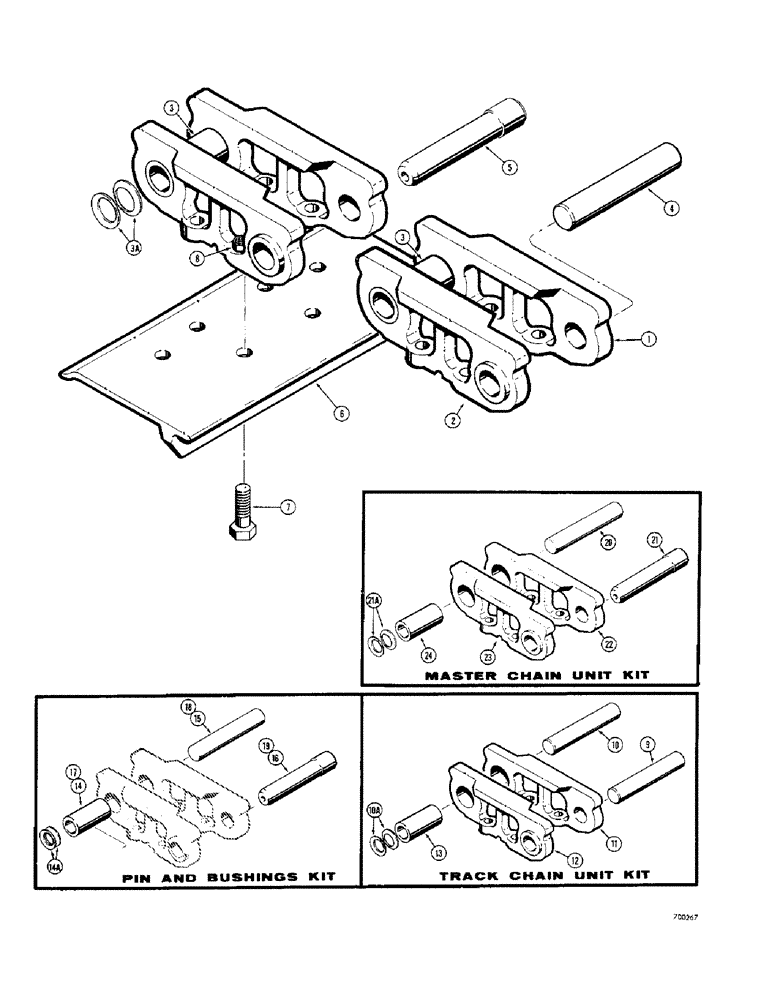

Запчасти Case 310G (128) - TRACK CHAIN, USED ON MODELS EXCEPT 36" GAUGE (04) - UNDERCARRIAGE

5482

CHAIN ASSEMBLY - 16 unit, non-sealed track (One per side) When stock is exhausted, use D48671 chain.

2шт.

D48671

CHAIN (AG)

CHAIN ASSEMBLY - 16 unit, sealed track

2шт.

D11810

CHAIN ASSEMBLY - 17 unit, non-sealed track (One per side) When stock is exhausted, use D48670 chain.

2шт.

D48670

TRACK CHAIN

CHAIN ASSEMBLY - 17 unit, sealed track

2шт.

1

D43909

DRAG LINK

LINK - track chain (R.H.)

17шт.

2

D43908

LINK

- track chain (L.H.)

17шт.

3

NLS

NO LONGER SERVICED

- non-sealed track (When stock is exhausted, use D48669 bushing and 4 - D48668 seals)

17шт.

3

D48669

BUSHING

- sealed track

17шт.

3a

D48668

SEALING WASHER

SEAL - washer, sealed track

68шт.

4

32831

PIN

- track, standard

16шт.

5

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master

4шт.

6

REF

INSTRUCTION

SHOE - track (See Figure 130 for track shoes)

66шт.

7

D41490

BOLT

- special

264шт.

8

D29712

SPECIAL NUT

- special

264шт.

NLS

NO LONGER SERVICED

CHAIN ASSEMBLY - 15 unit, non-sealed track (One per side) When stock is exhausted, use D48672, used on 36" guage models

2шт.

D48672

CHAIN (AG)

CHAIN ASSEMBLY - 15 unit, sealed track, used on 36" guage models

2шт.

5482

CHAIN ASSEMBLY - 16 unit, non-selaed track (When stock is exhausted, use D48671 chain), used on 36" guage models

2шт.

D48671

CHAIN (AG)

CHAIN ASSEMBLY - 16 unit, sealed track, used on 36" guage models

2шт.

1

D43909

DRAG LINK

LINK - track chain (R.H.), used on 36" guage models

16шт.

2

D43908

LINK

- track chain (L.H.), used on 36" guage models

16шт.

3

32830

BUSHING

- non-sealed track only (When stock is exhausted, use D48669 bushing and 4 - D48668 seals), used on 36" guage models

16шт.

3

D48669

BUSHING

- sealed track only, used on 36" guage models

16шт.

3a

D48668

SEALING WASHER

SEAL - washer, sealed track only, used on 36" guage models

64шт.

4

32831

PIN

- track, standard, used on 36" guage models

15шт.

5

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master, used on 36" guage models

4шт.

6

REF

INSTRUCTION

SHOE - track (See Figure 130 for track shoes), used on 36" guage models

62шт.

7

D41490

BOLT

- special, used on 36" guage models

248шт.

8

D29712

SPECIAL NUT

- special, used on 36" guage models

248шт.

D21014

KIT

- chain unit, non-sealed track (When stock is exhausted, use D48935 kit)

62шт.

D48935

DRAG LINK

KIT - chain unit, sealed track

62шт.

9

32831

PIN

- track, standard, chain unit kit

1шт.

10a

D48668

SEALING WASHER

SEAL - washer, sealed track, track chain unit kit

8шт.

10

32836

PIN

- track, service (.003" service), chain unit kit

1шт.

34571

KIT

UNIT - chain, non-sealed track (When stock is exhausted, use D49179 unit and 8 - D48668 seals), kit

1шт.

D49179

LINK

UNIT - chain, sealed track, kit

1шт.

11

D43909

DRAG LINK

LINK - track chain (R.H.), unit kit

1шт.

12

D43908

LINK

- track chain (L.H.), unit kit

1шт.

13

NLS

NO LONGER SERVICED

- non-sealed track only, chain unit kit

1шт.

13

D48669

BUSHING

- sealed track only, chain unit kit

1шт.

D11884

KIT

- pin and bushing, non-sealed track (All models except 36" gauge) when stock is exhausted, use D48934 kit

1шт.

D48934

PIN

KIT - pin and bushing, sealed track (Used on all models)

1шт.

14

32830

BUSHING

- non-sealed track chain, pin kit

66шт.

14

D48669

BUSHING

- sealed track, pin kit

66шт.

14a

D48668

SEALING WASHER

SEAL - washer, sealed track, pin & bushing kit

264шт.

15

32836

PIN

- track, service (.003" oversize), bushing kit

62шт.

16

C43537

PIN - track, master (.003" oversize) Service, bushing kit

4шт.

D11883

KIT - pin and bushing, 36" gauge only (When stock is exhausted, use D48934 kit)

1шт.

17

NLS

NO LONGER SERVICED

- track chain, pin kit

62шт.

18

32836

PIN

- track, service (.003" oversize), pn & bushing kit

58шт.

19

D43542

AXLE PIN

PIN - track, master (.003 oversize), bushing kit

4шт.

D21013

KIT

- master track, non-sealed track (When stock is exhausted, use 48932 kit)

4шт.

D48932

LINK

KIT - master track, sealed chain, unit kit

4шт.

20

32836

PIN

- track, service (.003" oversize), master chain unit kit

1шт.

21

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master, chain unit kit

1шт.

21a

D48668

SEALING WASHER

SEAL - washer, sealed track, master chain unit kit

8шт.

34571

KIT

UNIT - master, non-sealed track (When stock is exhausted, use D49179 unit and 8 - D48668 seals), chain kit

1шт.

D49179

LINK

UNIT - master, sealed track, chain kit

1шт.

22

D43909

DRAG LINK

LINK - track chain (R.H.), master unit kit

1шт.

23

D43908

LINK

- track chain (L.H.), master unit kit

1шт.

24

32830

BUSHING

- non-sealed track, master chain unit kit

1шт.

24

D48669

BUSHING

- sealed track, master chain unit kit

1шт.
