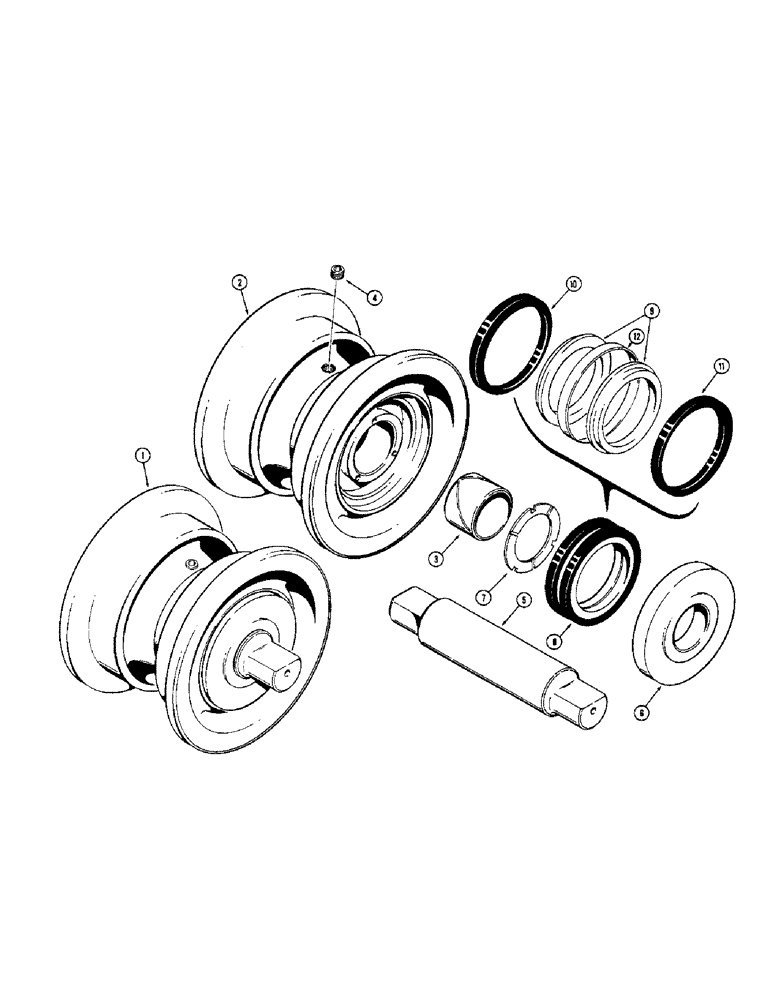

Запчасти Case 310G (124) - TRACK ROLLER (FACE SEAL) (04) - UNDERCARRIAGE

1

R24034

ROLLER

- track, face seal (Service option)

10шт.

2

R24033

ROLLER, TRACK

HUB - track, roller

1шт.

3

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

4

221-841

PLUG

- pipe, Allen head

1шт.

5

D43858

SHAFT

- track roller

1шт.

6

D35265

COLLAR

- thrust

2шт.

7

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust

2шт.

8

D35267

SEAL

- face

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - plastic

1шт.
