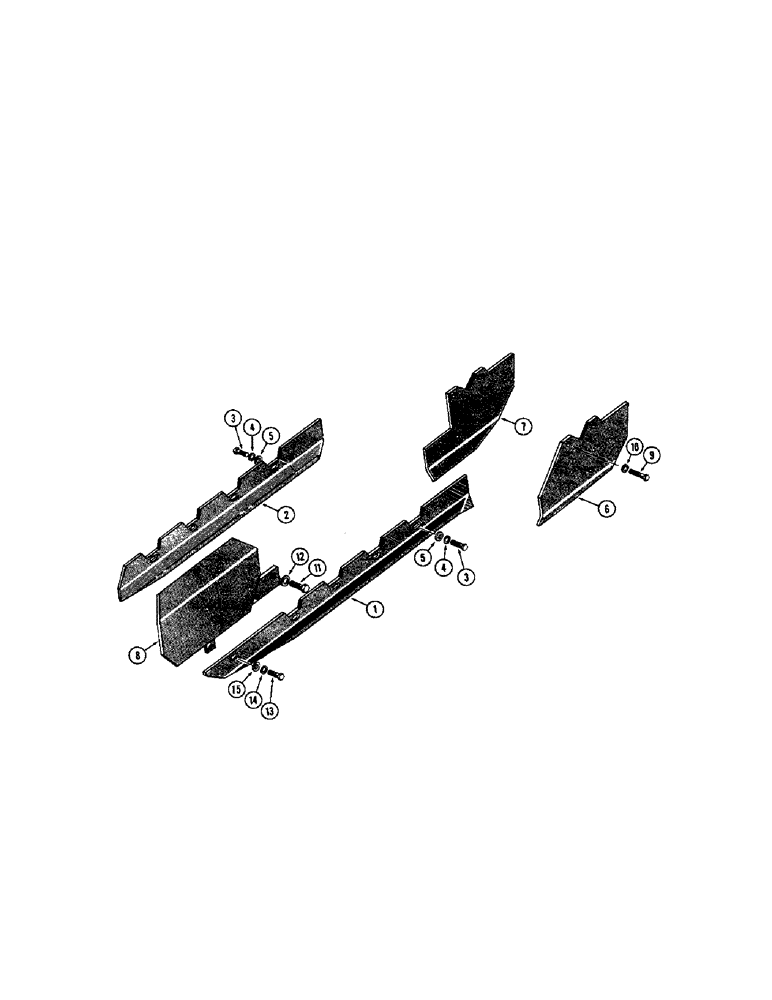

Запчасти Case 310G (120) - TRACK GUIDES (ROCK GUARDS), (36" GAUGE) (04) - UNDERCARRIAGE

1

D29077

ROCK GUARD - outer, R.H.

1шт.

D29078

ROCK GUARD - outer, L.H.

1шт.

2

D29079

ROCK GUARD - inner, R.H.

1шт.

D29080

ROCK GUARD - inner, L.H.

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

16шт.

4

92-8

LOCK WASHER,1/2"

16шт.

5

195-33

WASHER,1/2"

- flat () 1/2"

16шт.

6

D29067

ROCK GUARD - outer, idler (R.H.)

1шт.

D29068

ROCK GUARD - outer, idler (L.H.)

1шт.

7

33892

ROCK GUARD - inner, idler (R.H.)

1шт.

33893

ROCK GUARD - inner, idler (L.H.)

1шт.

8

D29071

ROCK GUARD - sprocket, R.H.

1шт.

D29072

ROCK GUARD - sprocket, L.H.

1шт.

9

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NC x 2"

8шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

13

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

195-33

WASHER,1/2"

- flat () 1/2"

2шт.
