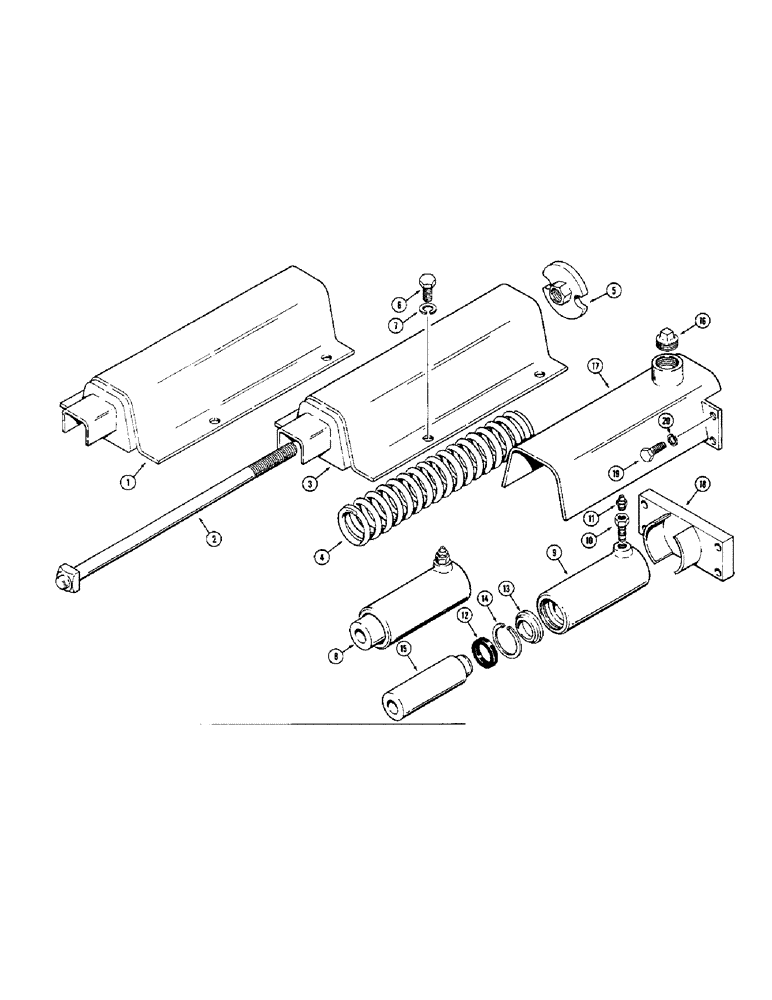

Запчасти Case 310G (118) - SPRING AND RECOIL SYSTEM (04) - UNDERCARRIAGE

1

NSS

NOT SOLD SEPARAT

RECOIL SPRING ASSEMBLY - complete

2шт.

2

D43520

ADJUSTMENT SCREW

- track adjusting

1шт.

3

D42191

HOUSING

- recoil spring

1шт.

4

D39498

SPRING

- recoil

1шт.

5

D42193

LARGE PLATE

PLATE - tension adjusting

1шт.

6

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

D42202

ADJUSTER

TRACK ADJUSTER - hydraulic, complete

2шт.

9

D42199

CYLINDER BLOCK

CYLINDER - track adjusting

1шт.

Cylinders without snap ring groove must use D95144 wiper.

1шт.

10

D35287

CHECK VALVE,5/8" - 18

BALL CHECK ASSEMBLY - track adjuster

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

12

D95381

CUP

PACKING - cylinder

1шт.

13

D37290

WINDSHIELD WIPER

WIPER - piston (When stock is exhausted, use D95144 wiper)

1шт.

13

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper, piston

1шт.

Cylinders without snap ring groove must use D95144 wiper.

1шт.

14

D37291

SNAP RING,#250, 2.673", Int

RING - snap (Use with D37290 wiper)

1шт.

15

D42201

PISTON

- track adjusting

1шт.

16

D43400

PLUG

- pipe

2шт.

17

D43513

COVER

- track adjuster

2шт.

18

D43510

MOUNTING PARTS

MOUNTING - track adjuster

2шт.

19

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

8шт.

20

92-8

LOCK WASHER,1/2"

8шт.
