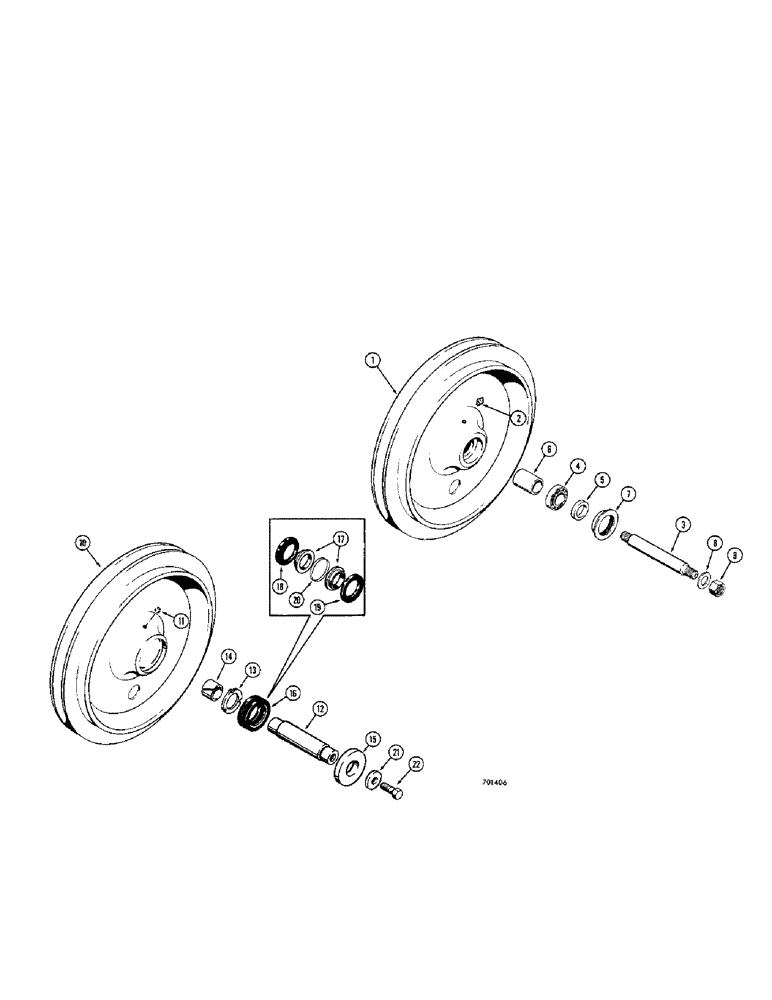

Запчасти Case 310G (118[1]) - IDLER WHEEL - NON FACE SEAL (ALL MODELS EXCEPT 36" GAUGE) (04) - UNDERCARRIAGE

1

D46104

FRONT IDLER

HUB - idler wheel

2шт.

2

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight (1/4" NPT)

2шт.

3

D43790

SHAFT

- idler

2шт.

4

175192A1

BRACKET

- ball

4шт.

5

D31806

BUSHING,34.92mm ID x 52.32mm OD x 19.43mm L

SPACER - outer

4шт.

6

D46109

SPACER

- inner

2шт.

7

D31322

SEAL

- oil

4шт.

8

195-2100

WASHER,1 1/32" x 2" x .238"

- flat, steel (1")

4шт.

9

131-659

NUT,1"-8, GB

NUT - hex., lock (1" - 8 NC)

4шт.

D51282

FRONT IDLER

IDLER WHEEL - complete

2шт.

10

D50733

HUB

- idler wheel

1шт.

11

221-841

PLUG

- pipe, hex. socket

1шт.

12

D51281

SHAFT

- idler wheel

1шт.

13

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

COLLAR - thrust

2шт.

14

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

15

D35265

COLLAR

BUSHING - thrust

2шт.

16

D35267

SEAL

- face

2шт.

17

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

21

D21262

WASHER

- special

4шт.

22

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

4шт.
