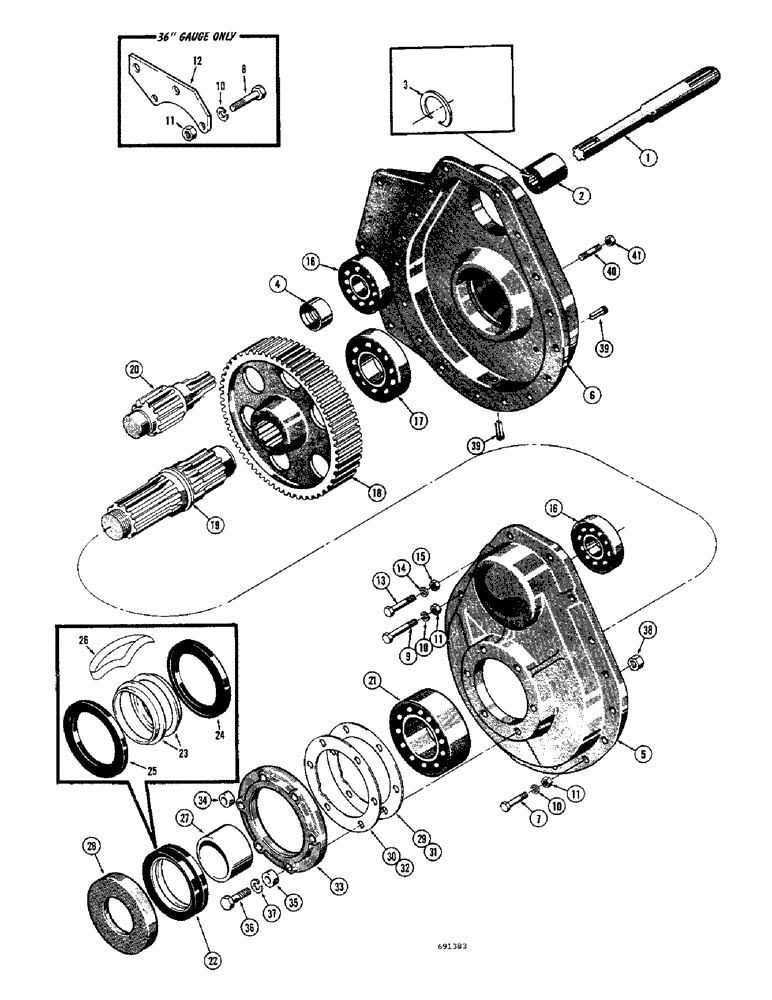

Запчасти Case 310G (108) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

D48104

SHAFT

- axle (36" gauge only)

2шт.

1

D48274

SHAFT - axle (42" gauge only)

2шт.

1

D31519

SHAFT

- axle (48" guage only)

2шт.

1

D50193

SHAFT - axle (60" gauge only)

2шт.

1

D50194

SHAFT - axle (72" gauge only)

2шт.

2

D32730

COUPLING

- final drive (48" guage only)

2шт.

2

D48103

COUPLING

- final drive (36" gauge only)

2шт.

2

51200026

COUPLING

- final drive (60" and 72" gauge only)

2шт.

2

D32721

COUPLING

- final drive (42" gauge only)

2шт.

3

D32722

RING, SNAP

RING - retaining

2шт.

4

D32723

SPACER

- final drive

2шт.

5

D24658

HOUSING

- final drive, outer

2шт.

6

D29737

HOUSING - final drive, inner (L.H.)

1шт.

D29736

HOUSING - final drive, inner (R.H.)

1шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (42" and 48" gauge)

18шт.

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (36" gauge)

14шт.

8

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

(36" gauge) Hex, 7/16"-14 x 1 3/4", G5

4шт.

9

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

10шт.

10

92-7

LOCK WASHER,7/16"

28шт.

11

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

28шт.

12

D41576

BRACKET - mounting (36" gauge only)

2шт.

13

D24688

BOLT

BOLT - special

6шт.

14

92-8

LOCK WASHER,1/2"

6шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

16

40002

BALL BEARING

- ball, final drive pinion

4шт.

17

40003

BEARING

- ball, final drive shaft (Inner)

2шт.

18

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

19

CAS11853

SHAFT

- final drive

2шт.

20

51200027

SHAFT

- pinion, final drive (60" and 72" gauge only)

2шт.

20

D31514

SHAFT

- pinion, final drive (36", 42" and 48" gauge only)

2шт.

21

D46981

BALL BEARING

BEARING - ball, final drive shaft (Outer)

2шт.

22

D43411

SEAL

- face

2шт.

23

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D44075

SEAL

KIT - seal

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

26

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

27

D43360

SPACER

- final drive shaft

2шт.

28

D43359

RETAINER

- seal, outer

2шт.

29

D46986

SHIM,.002" Thk

1шт.

30

D46985

SHIM,.020" Thk

1шт.

31

D46984

SHIM

- .030" thick

1шт.

32

D46983

SHIM,.005" Thk

1шт.

33

D43356

RETAINER

- seal, final drive shaft

2шт.

34

D43608

SPACER

- seal guard

2шт.

35

D43408

SPACER

- seal guard

10шт.

36

15-632

X

HHCS - 3/8" - 16 NC x 2"

12шт.

37

92-6

LOCK WASHER,3/8"

12шт.

38

D29126

LOCK NUT

- special, lock

2шт.

39

221-675

PLUG

- pipe, magnetic (1/2" NPT)

4шт.

40

R29874

STUD

- mounting, final drive

16шт.

41

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF)

16шт.
