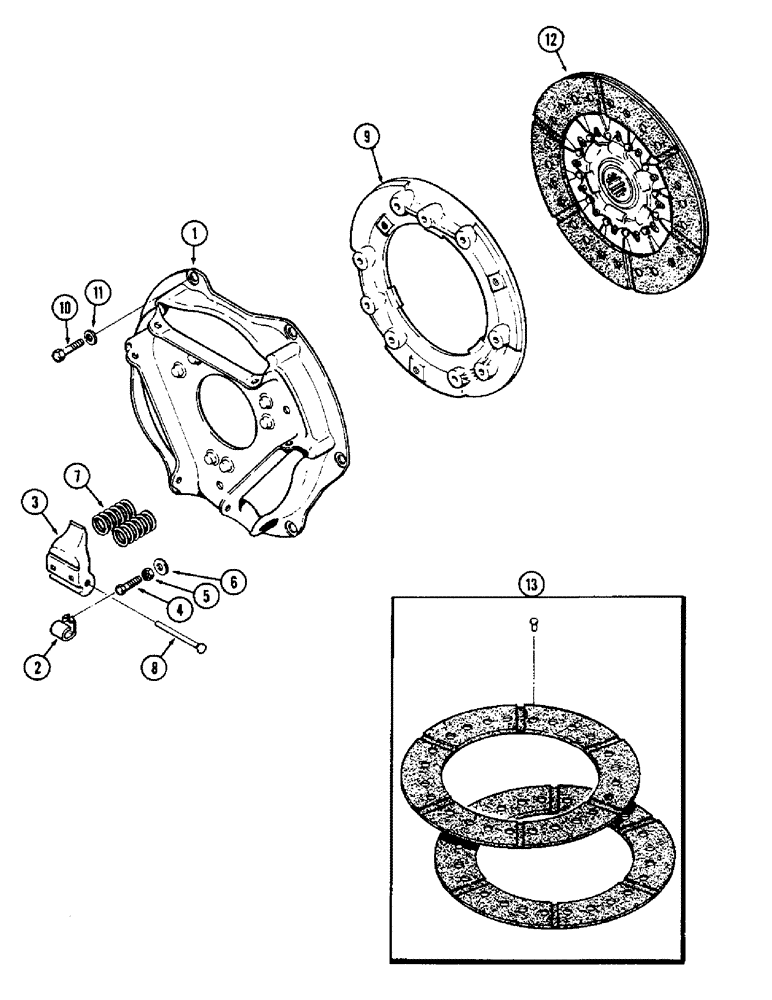

Запчасти Case 310G (098) - CLUTCH (03) - TRANSMISSION

G45790

CLUTCH

PLATE ASSY. - pressure (10")

1шт.

1

G47178

X

HUB - pressure

1шт.

2

G46061

CLIP

- lever return

3шт.

3

G47028

LEVER

CLIP - lever return

3шт.

4

G49049

X

SCREW - adjusting

3шт.

5

G49005

NUT - adjusting screw (5/16" N.F.)

3шт.

6

G49048

WASHER

- adjusting screw

3шт.

7

G47027

SPRING

- lever (Light green)

6шт.

8

G47029

PIN

- pivot

3шт.

9

A36568

PLATE

- back, pressure

1шт.

10

G49026

BOLT - plate to flywheel (3/8 x 1-1/4" N.C. hex.)

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

G45791

PLATE ASSY.

PLATE - driven (w/facings)

1шт.

13

G37099

KIT - clutch facing (Includes rivets)

1шт.
