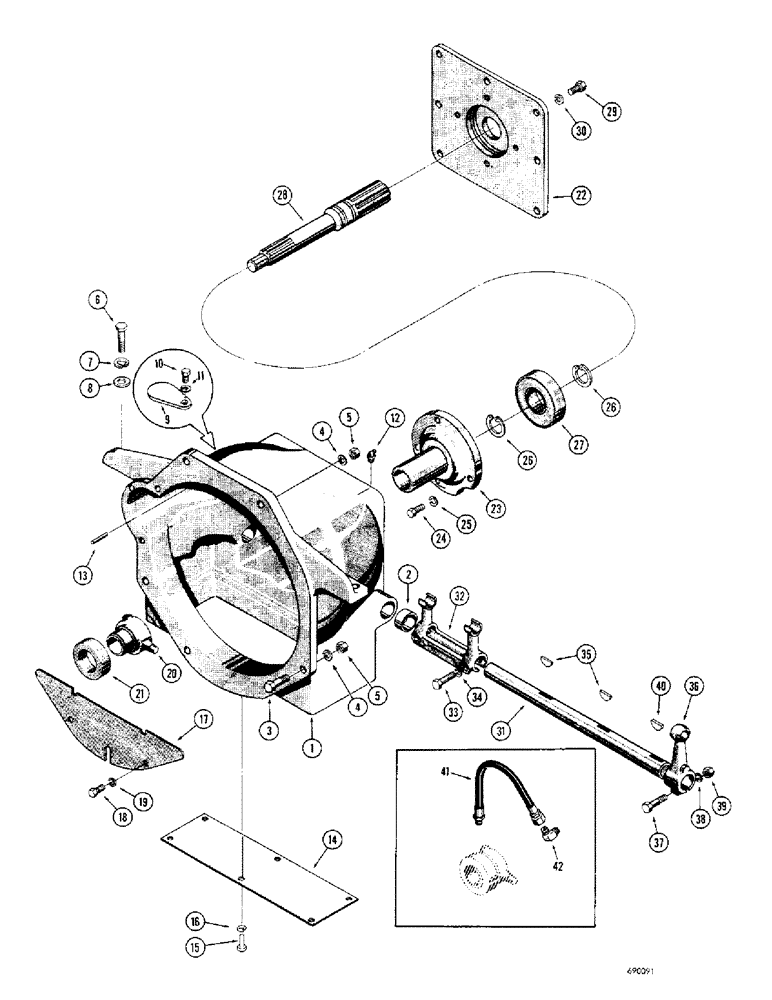

Запчасти Case 310G (096) - CLUTCH HOUSING AND RELATED PARTS (03) - TRANSMISSION

1

A60050

HOUSING - clutch

1шт.

2

G49666

BUSHING

- clutch cross shaft

2шт.

3

A30129

BOLT

- special, clutch, Serial Range: housing-block

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

6

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

195-41

WASHER,5/8"

2шт.

9

A29068

COVER

- timing hole

1шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

13

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing 1/8" x 1 1/4", Slotted

1шт.

14

G11368

COVER - clutch housing (Bottom)

1шт.

15

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

D30040

COVER - clutch housing

1шт.

18

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

D30055

CARRIER

- throw out bearing

1шт.

21

G13624

BEARING

- throw out

1шт.

NSS

NOT SOLD SEPARAT

PLATE - back housing assembly

1шт.

22

G1364

PLATE - back, clutch housing

1шт.

23

G1365

SPINDLE

- clutch throw out carrier

1шт.

24

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

A21619

CIRCLIP

SNAP RING - bearing

2шт.

27

F62198

BEARING

- clutch pilot shaft

1шт.

28

G11354

SHAFT - pilot, clutch

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

30

92-6

LOCK WASHER,3/8"

7шт.

31

G11353

SHAFT - cross

1шт.

32

A26061

YOKE

- clutch

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

36

11037

BELT, TRANSMISSION

LEVER - outer, cross shaft

1шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

40

126-26

WOODRUFF KEY,#16, 3/16" x 1 1/8"

KEY - No. 6 Woodruff

1шт.

41

36556

HOSE ASSY.

HOSE - throw out bearing lubrication

1шт.

42

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.
