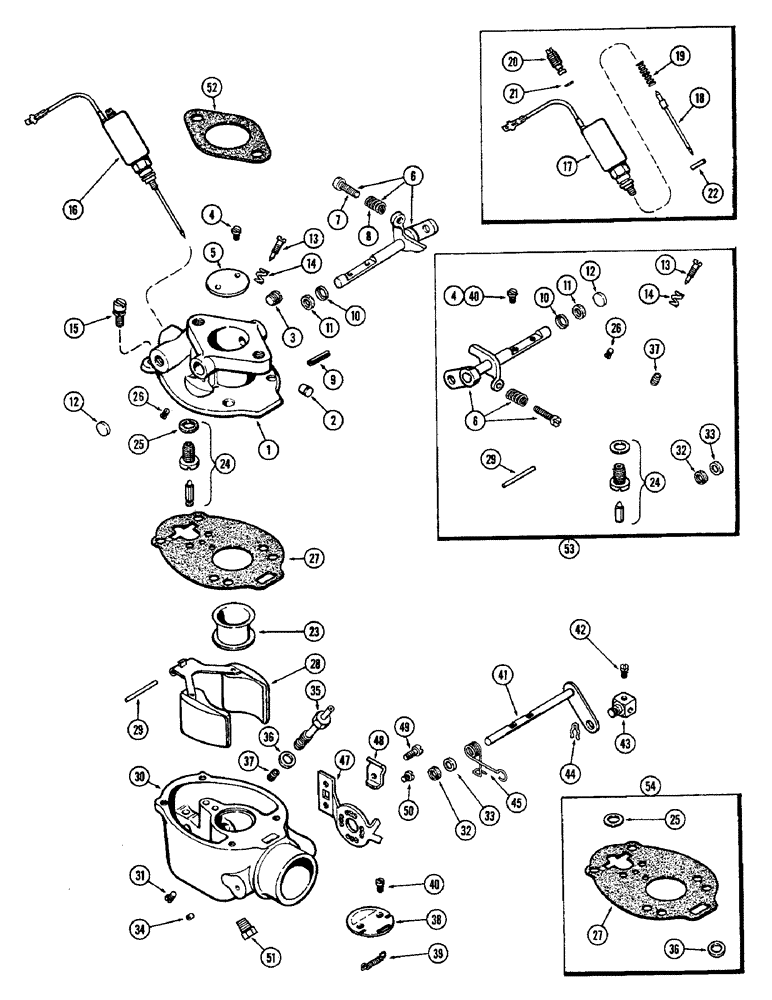

Запчасти Case 310G (044) - A38240 CARBURETOR, (148B) SPARK IGNITION ENGINE (02) - FUEL SYSTEM

A38240

CARBURETOR ASSY. - (Marvel-Schebler #8-4957X)

1шт.

1

A41571

BODY ASSY. - throttle

1шт.

2

B51874

PLUG - idle drilling

1шт.

3

B53961

X

PLUG - fuel inlet

1шт.

4

B51685

SCREW

- throttle plate

2шт.

5

B51669

PLATE - throttle

1шт.

6

B51655

THROTTLE

SHAFT ASSY. - throttle

1шт.

7

B51680

SCREW - stop

1шт.

8

B51742

SPRING

- stop screw

1шт.

9

B51862

PIN - throttle stop

1шт.

10

B51853

RETAINER

- shaft packing

1шт.

11

B51805

PACKING

- throttle shaft

1шт.

12

B51852

CUP

PLUG - cup, shaft hole

1шт.

13

B51788

NEEDLE

- idle adjusting

1шт.

14

B51744

SPRING

- idle needle

1шт.

15

B51683

SCREW,#12 - 24 x 5/8"

-, Serial Range: body-bowl

4шт.

16

A41472

SOLENOID

ASSY. - fuel shut-off

1шт.

17

NSS

NOT SOLD SEPARAT

CASE - solenoid (Order A41472)

1шт.

18

A41574

NEEDLE - adjusting

1шт.

19

A40287

SPRING - cut-off

1шт.

20

A41573

SCREW - adjusting

1шт.

21

A40286

O-RING,0.15" ID x 9" OD x 0.073"

"O" RING - seal, needle

1шт.

22

A41575

WASHER -, Serial Range: solenoid-carburetor

1шт.

23

A41567

VENTURI

- (25/32" dia.)

1шт.

24

B51912

SEAT

VALVE & SEAT ASSY. - float

1шт.

25

B51703

GASKET

- valve seat

1шт.

26

B51841

JET - idling

1шт.

27

B51708

GASKET

- throttle, Serial Range: body-bowl

1шт.

28

B51772

FLOAT

- fuel body

1шт.

29

B51779

SHAFT

- float

1шт.

30

NSS

NOT SOLD SEPARAT

BOWL ASSY. - fuel

1шт.

31

B51700

SCREW

PLUG - screw, nozzle hole

1шт.

32

B51803

PACKING

- choke shaft

1шт.

33

B51854

RETAINER

- choke shaft packing

1шт.

34

A41026

PLUG - choke shaft

1шт.

35

A41568

NOZZLE - main

1шт.

36

B51720

GASKET

- main nozzle

1шт.

37

A41569

JET - power

1шт.

38

B51763

VALVE

FLY ASSY. - choke shaft

1шт.

39

B51735

SPRING

- choke fly

1шт.

40

B51685

SCREW

- choke, Serial Range: fly-shaft

2шт.

41

B51751

SHAFT

ASSY. - choke

1шт.

42

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

43

B51764

PIVOT

SWIVEL - control rod

1шт.

44

B51877

SPLIT PIN

PIN - cotter, swivel

1шт.

45

B51741

SPRING - return, choke lever

1шт.

47

A41027

BRACKET - mounting

1шт.

48

B51765

CLIP

- control rod, choke

1шт.

49

B59373

SCREW -, Serial Range: clip-bracket

1шт.

50

B51686

SCREW - bracket mounting

1шт.

51

B51887

PLUG

- drain, fuel body

1шт.

52

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

53

A41570

KIT

- carburetor, repair

1шт.

54

B51726

GASKET

KIT - carburetor repair

1шт.
