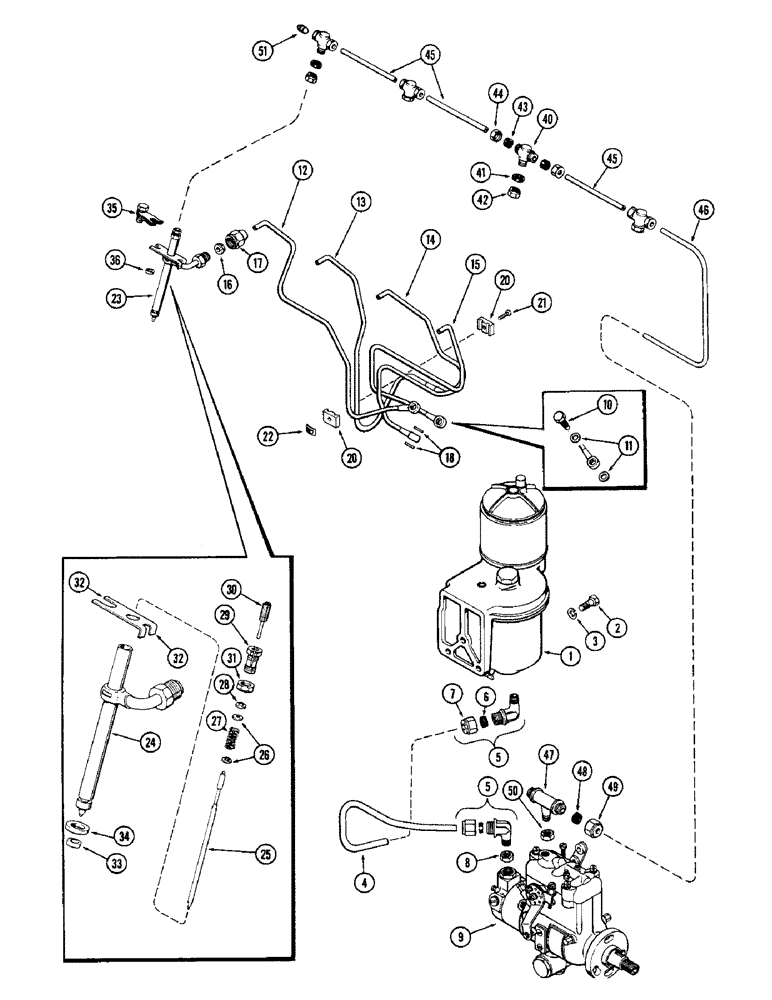

Запчасти Case 310G (024) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE (02) - FUEL SYSTEM

1

A35735

FILTER

ASSY. - fuel (Repairs Figure 026)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T.

2шт.

6

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

8

A38161

LOCK NUT

- sealing, elbow to pump (1/4" P.T.)

1шт.

9

A35779

PUMP, FUEL INJECTION

PUMP ASSY. - injection (Repairs Figure 026)

1шт.

10

73613

SCREW

- tube to pump (Part of pump)

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector (Part of pump)

8шт.

12

A41391

TUBE

- #1 injector (Incl. ref. 16, 17 & 18)

1шт.

13

A41392

TUBE

- #2 injector (Incl. ref. 16, 17 & 18)

1шт.

14

A41393

TUBE

- #3 injector (Incl. ref. 16, 17 & 18)

1шт.

15

A41394

TUBE

- #4 injector (Incl. ref. 16, 17 & 18)

1шт.

Ref 15 A41394 not illustrated properly the part pictured is a35061 see 310G crawler Figure 040 for illustration of all tubes if customer requires tube which looks like picture DB 12/1/99

1шт.

16

A37850

PIPE FITTING

SLEEVE -, Serial Range: tube-injector

1шт.

17

A37851

NUT

-, Serial Range: tube-injector

1шт.

18

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector to pump (Part of pump)

2шт.

20

A58709

BRACKET

CLAMP - injection tube (Plastic)

4шт.

21

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10-24 x 1" rd. hd.

2шт.

22

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - speed, #10 Tinnerman flat type

2шт.

23

A37836

NOZZLE

ASSY. - fuel injector (See note)

4шт.

A140829R

REMAN-INJECT NOZZLE

310G S/N 3039619 AND AFTER, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - (Order A37836)

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - (Order A37836)

1шт.

26

A41401

SEAT

- pressure spring

2шт.

27

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

28

A41407

WASHER

- ball type

1шт.

29

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

30

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

31

A42424

LOCK NUT

- lock

1шт.

32

A41405

PLATE

- locating, nozzle

1шт.

33

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

34

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

35

A37837

CLAMP

- nozzle assembly

4шт.

36

A37839

SPACER

- clamp

4шт.

40

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - leak-off, Serial Range: nozzle-tube

4шт.

41

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: nozzle-tee

4шт.

42

A58961

NUT

- knurled, Serial Range: nozzle-tee

4шт.

43

222-102

SLEEVE,1/4" Tube

7шт.

44

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

7шт.

45

A38644

TUBE

- leak-off, nozzle

3шт.

46

A38158

TUBE

-, Serial Range: leak-off-pump

1шт.

47

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- 1/4" tube x 1/8" P.T.

1шт.

48

222-102

SLEEVE,1/4" Tube

2шт.

49

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

50

A38160

LOCK NUT

- sealing, tee to pump (1/8" P.T.)

1шт.

51

A38159

PLUG

- #4 leak-off tee

1шт.
