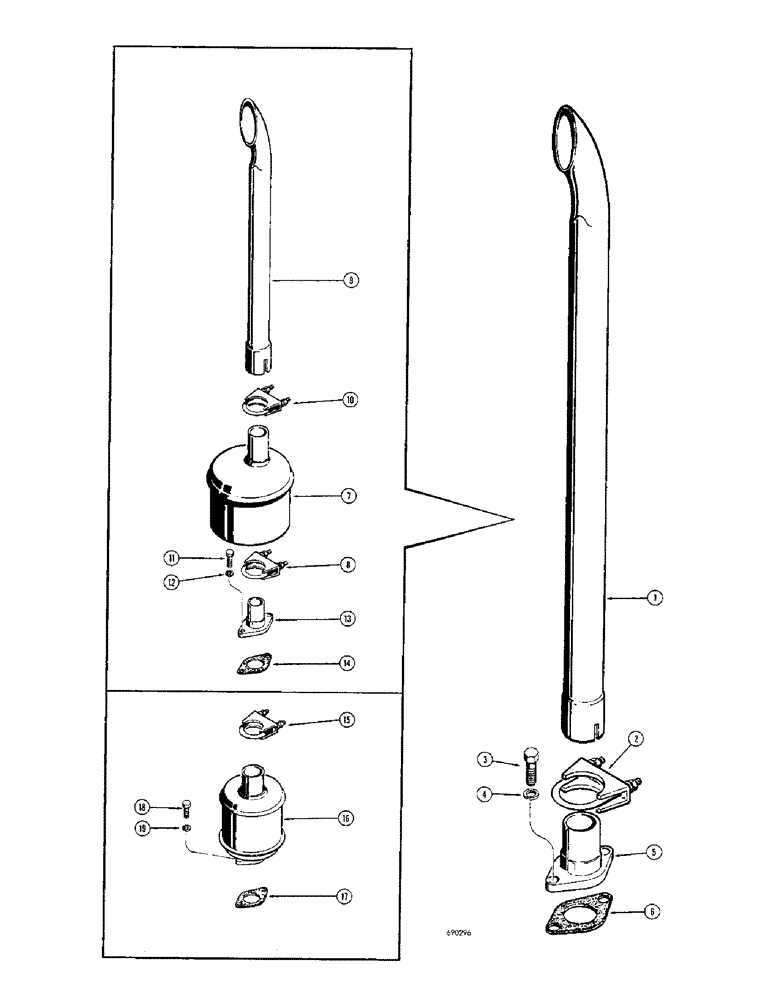

Запчасти Case 310G (057A) - EXHAUST SYSTEM - GAS AND DIESEL (01) - ENGINE

1

D33503

PIPE

- exhaust (Use with D22864 outlet or D35106 muffler)

1шт.

2

A13240

CLAMP,2-5/8" ID

- exhaust pipe

1шт.

3

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

D22864

OUTLET

- exhaust

1шт.

6

G46853

MANIFOLD GASKET

- exhaust

1шт.

7

D45256

MUFFLER,W/ Spark Arrester

- spark arresting (Optional)

1шт.

8

A13240

CLAMP,2-5/8" ID

- muffler

1шт.

9

D33535

PIPE

- exhaust extension

1шт.

10

D38328

X

CLAMP -, Serial Range: pipe-muffler

1шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

D22864

OUTLET

- exhaust

1шт.

14

G46853

MANIFOLD GASKET

- outlet exhaust

1шт.

15

D38328

X

CLAMP - muffler to exhuast pipe

1шт.

16

D35106

MUFFLER

- under hood (Optional)

1шт.

17

G46853

MANIFOLD GASKET

- outlet

1шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.
