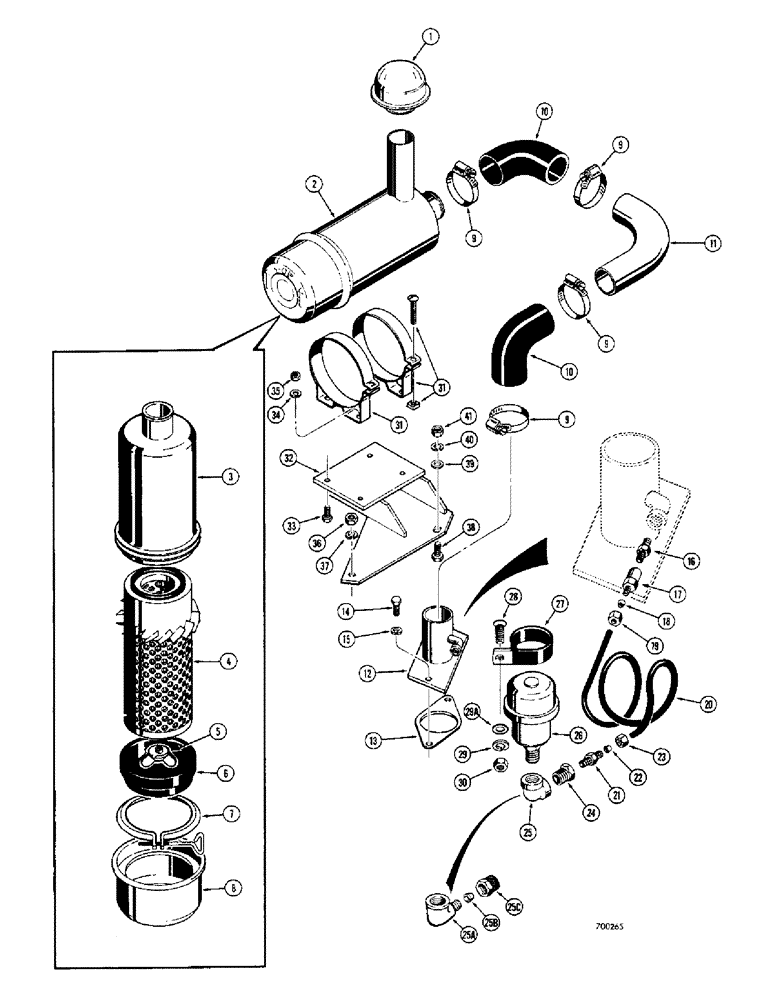

Запчасти Case 310G (056) - DRY TYPE AIR CLEANER - DIESEL (01) - ENGINE

1

D22685

CAP

- air intake

1шт.

2

D43712

AIR CLEANER

- complete

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

4

D48198

AIR CLEANER

ELEMENT - air cleaner

1шт.

5

F91761

WING NUT

AND GASKET ASSEMBLY - wing

1шт.

6

D48200

BAFFLE

- air cleaner

1шт.

7

D48199

CLAMP

CLEANER - air cleaner

1шт.

8

D48201

CUP

- air cleaner

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

10

D43714

INTAKE AIR HOSE,2.00" ID, SAE 20R4 Class SC or SAE 20R4 Class R

2.00" ID, SAE 20R4 Class SC or SAE 20R4 Class R

2шт.

11

D43715

TUBE - air, Serial Range: cleaner-manifold

1шт.

12

D43716

INLET - manifold

1шт.

13

D22670

GASKET

- air inlet manifold

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

D36264

FITTING

NIPPLE - filter

1шт.

17

D35091

PIPE FITTING

CONNECTOR - special, female

1шт.

18

D37176

SLEEVE

1шт.

19

D37362

TUBE NUT

1шт.

20

D35275

TUBE

- air, Serial Range: cleaner-indicator

1шт.

21

D35816

CONNECTOR, ELEC

CONNECTOR - special, male (Used on 221-375 elbow)

1шт.

22

D37176

SLEEVE

1шт.

23

D37362

TUBE NUT

1шт.

24

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducer (1/4" X 1/8") Used on 221-375 elbow

1шт.

25

221-375

ELBOW

- female, pipe (90 degrees) 1/4" NPT (If used)

1шт.

D45588

FITTING

ELBOW ASSEMBLY - street, 90 degrees (If used)

1шт.

25a

NSS

NOT SOLD SEPARAT

ELBOW - street, 90 degrees

1шт.

25b

D37176

SLEEVE

- elbow

1шт.

25c

D37362

TUBE NUT

- elbow

1шт.

26

D47217

INDICATOR

- air restriction

1шт.

27

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- indicator

1шт.

28

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

FHCS - 1/4" - 20 NC x 3/4" (Zinc plated)

1шт.

29

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

29a

195-14

WASHER,#12

- plain (1/4")

1шт.

30

25-104

NUT,1/4"-20, G5

1шт.

31

D43713

BAND

- mounting, air cleaner

2шт.

32

D44450

BRACKET - mounting, air cleaner

1шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

34

92-5

LOCK WASHER,5/16"

4шт.

35

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

36

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

39

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
