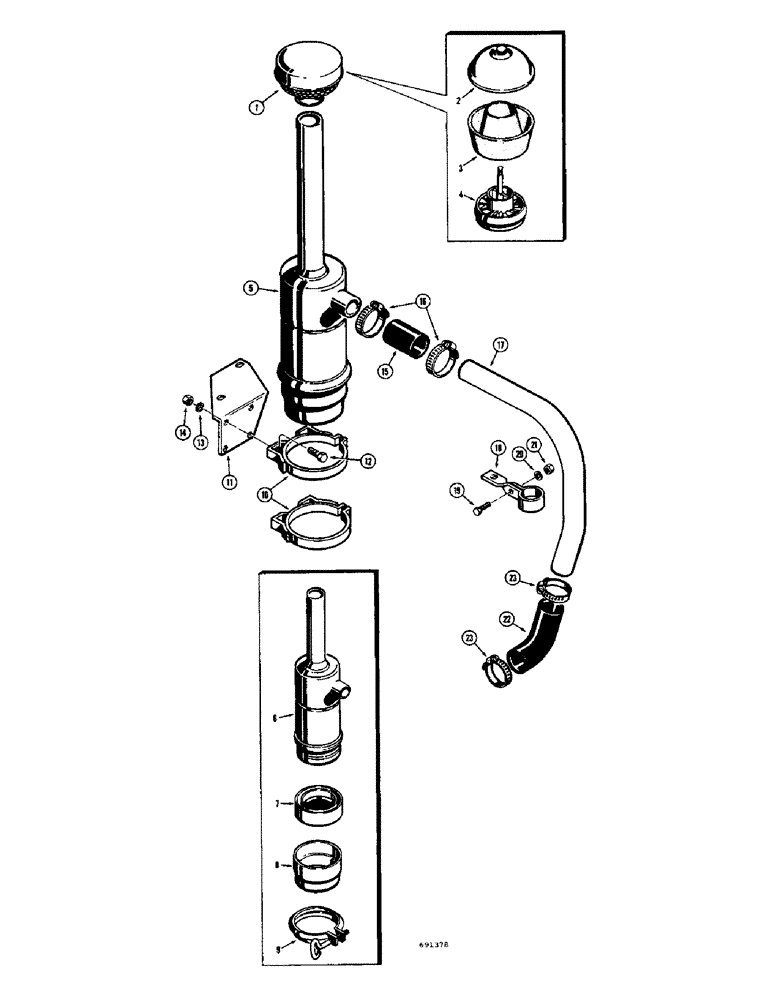

Запчасти Case 310G (055A) - OIL BATH AIR CLEANER - GAS (01) - ENGINE

1

A30532

CAP

- inlet, air cleaner (Standard)

1шт.

D20605

PRECLEANER

PRE-CLEANER - inlet, air cleaner (Optional)

1шт.

2

D30676

COVER

- pre-cleaner

1шт.

3

D30675

BODY

- pre-cleaner

1шт.

4

D30678

SLEEVE

- pre-cleaner

1шт.

5

D24939

CLEANER

AIR CLEANER - complete

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

D26377

X

CUP - oil, inner

1шт.

8

D26371

CUP - oil, outer

1шт.

9

D26370

CLAMP

- retaining, oil cup

1шт.

10

D27245

COLLAR CLAMP

BAND - air cleaner mounting

2шт.

11

D36079

BRACKET - air cleaner mounting

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

15

R14169

HOSE

- air cleaner to intake manifold

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

17

D27136

TUBE - air cleaner to intake manifold

1шт.

18

38289

CLAMP - air cleaner tube

1шт.

19

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

25-104

NUT,1/4"-20, G5

1шт.

22

D27155

ELBOW

- air, Serial Range: cleaner-manifold

1шт.

23

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
