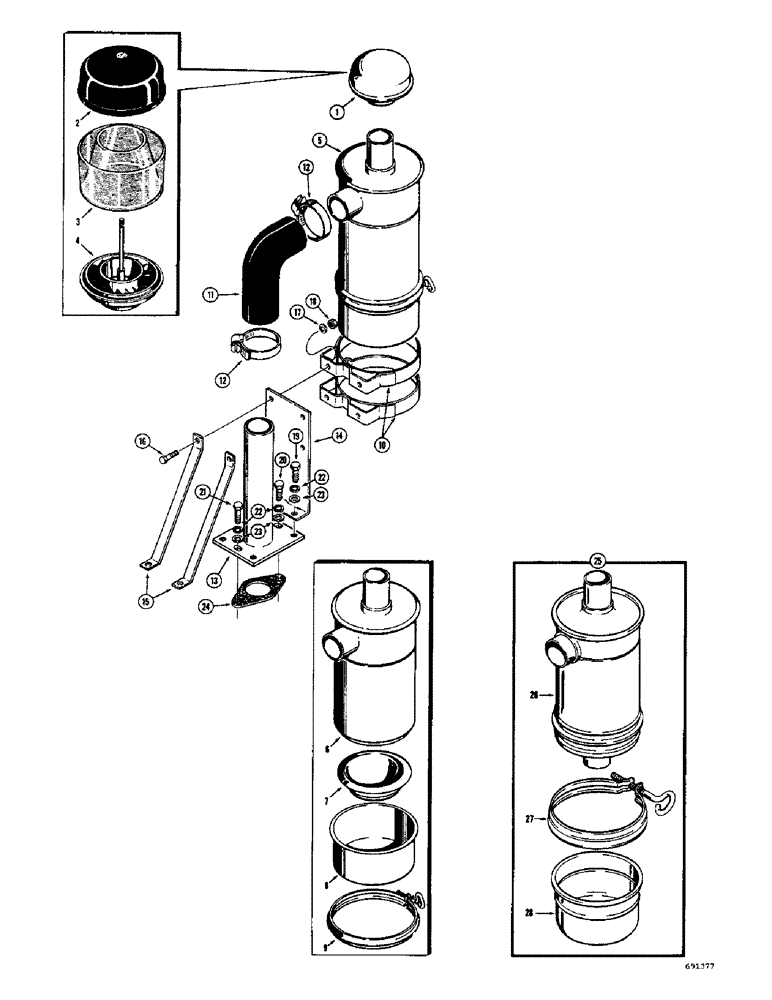

Запчасти Case 310G (054) - OIL BATH AIR CLEANER - DIESEL (01) - ENGINE

1

D22685

CAP

- inlet, air cleaner (Standard)

1шт.

D20604

PRECLEANER

PRE-CLEANER - inlet, air cleaner (Optional)

1шт.

2

D30676

COVER

- pre-cleaner

1шт.

3

D30675

BODY

- pre-cleaner

1шт.

4

D30677

SLEEVE

- pre-cleaner

1шт.

5

D22671

X

AIR CLEANER - complete, four piece (When stock is exhausted, use D48416 filter for service)

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

G46324

CUP

- oil, inner

1шт.

8

G46325

CUP

- oil, outer

1шт.

9

G45153

CLAMP

- retaining, oil cup

1шт.

10

NLS

NO LONGER SERVICED

CLAMP - air cleaner mounting

2шт.

11

D28030

ELBOW UNION

HOSE - air cleaner to intake manifold

1шт.

12

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

air cleaner #36, 1.81/2.75 Type F Worm

2шт.

13

D27998

INLET - air cleaner to intake manifold

1шт.

14

D27995

BRACKET - air cleaner mounting

1шт.

15

D27997

SUPPORT - mounting bracket

2шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

6шт.

23

195-22

WASHER

- flat (3/8")

4шт.

24

D22670

GASKET

- inlet, air cleaner

1шт.

25

D48416

CLEANER

AIR CLEANER - complete, three piece

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

27

D48871

CUP

- air cleaner

1шт.

28

G45153

CLAMP

- retaining, cup

1шт.
