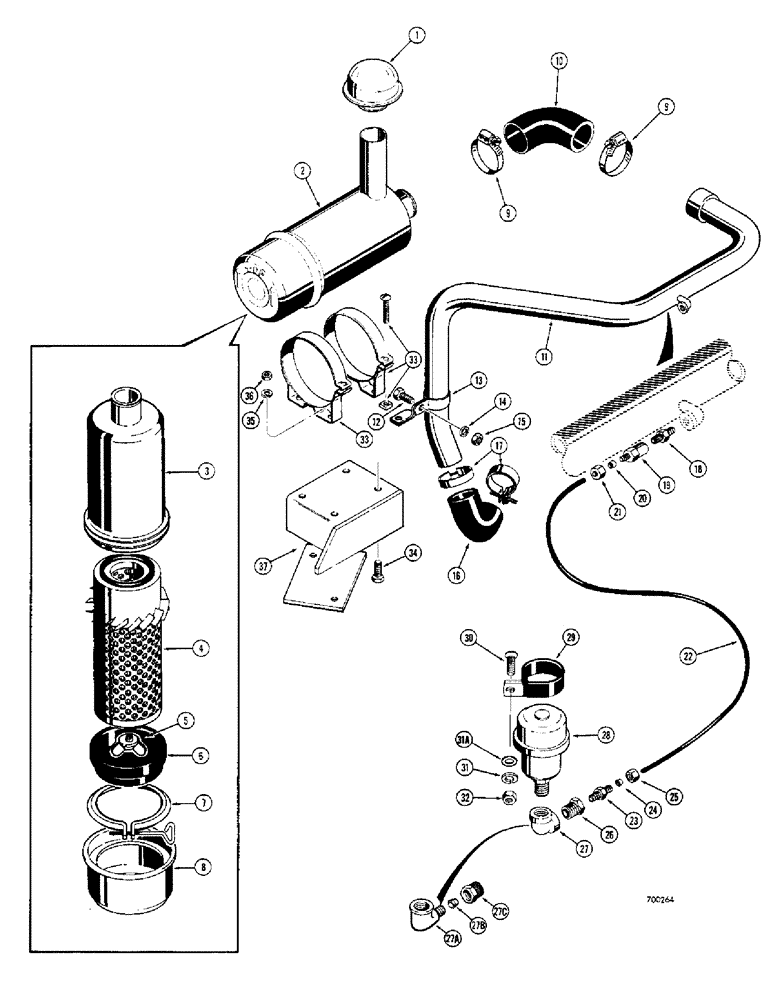

Запчасти Case 310G (052) - DRY TYPE AIR CLEANER - GAS (01) - ENGINE

1

D22685

CAP

- inlet, air cleaner (Standard)

1шт.

2

D43712

AIR CLEANER

- complete, dry type

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

4

D48198

AIR CLEANER

ELEMENT - air cleaner

1шт.

5

F91761

WING NUT

AND GASKET ASSMELBY - wing

1шт.

6

D48200

BAFFLE

- air cleaner

1шт.

7

D48199

CLAMP

- air cleaner (See Figure 042 for related parts)

1шт.

8

D48201

CUP

- air cleaner

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

10

D43714

INTAKE AIR HOSE,2.00" ID, SAE 20R4 Class SC or SAE 20R4 Class R

At Air Cleaner 2.00" ID, SAE 20R4 Class SC or SAE 20R4 Class R

1шт.

11

D43719

TUBE - air, Serial Range: cleaner-carburetor

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

13

38289

CLAMP - tube

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

25-104

NUT,1/4"-20, G5

1шт.

16

D27155

ELBOW

- hose, at carburetor

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

17a

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- 1/4" tube x 1/8" NPT

1шт.

18

D36264

FITTING

NIPPLE - filtered

2шт.

19

D35091

PIPE FITTING

CONNECTOR - female

2шт.

20

D37176

SLEEVE

1шт.

21

D37362

TUBE NUT

1шт.

22

D35275

TUBE

- air, Serial Range: cleaner-indicator

1шт.

23

D35816

CONNECTOR, ELEC

CONNECTOR - male, used with 221-375 elbow

1шт.

24

D37176

SLEEVE

1шт.

25

D37362

TUBE NUT

1шт.

26

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, used with 221-375 elbow

1шт.

27

221-375

ELBOW

- female, pipe (90 degrees) 1/4" NPT (If used)

1шт.

D45588

FITTING

ELBOW - street, 90 degrees (If used)

1шт.

27a

NSS

NOT SOLD SEPARAT

ELBOW - street, 90 degrees

1шт.

27b

D37176

SLEEVE

- elbow

1шт.

27c

D37362

TUBE NUT

- elbow

1шт.

28

D41011

INDICATOR

- air restrictor

1шт.

Ref.# 28 -D41011 FILTER INDICATOR, AIR CLEANER. ORDER PT. NO. D47217. 4/28/97

1шт.

29

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- indicator

1шт.

30

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

FHCS - 1/4" - 20 NC x 3/4" (Zinc plated)

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31a

195-18

WASHER,1/4"

- plain () 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

33

D43713

BAND

- air cleaner

2шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

37

D44416

OIL PRESSURE GAUGE

BRACKET - mounting, air cleaner

1шт.
