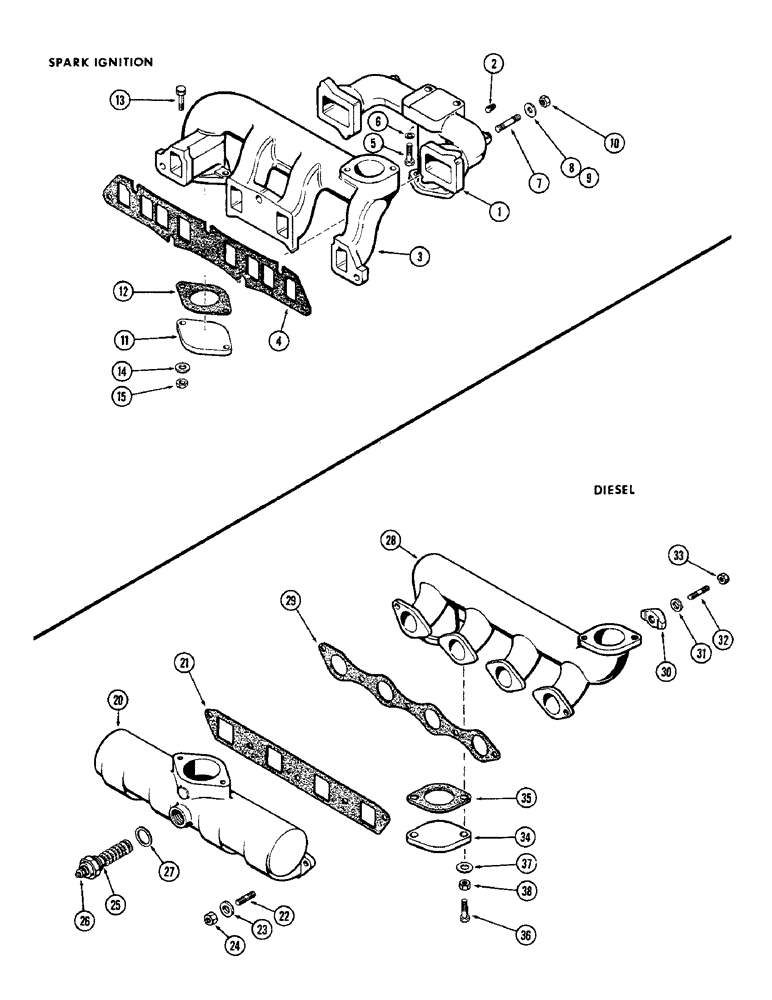

Запчасти Case 310G (048) - MANIFOLD, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

A37172

MANIFOLD

- intake

1шт.

2

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" sq. hd.

1шт.

3

G2042

MANIFOLD

- exhaust

1шт.

4

A30030

GASKET

-, Serial Range: manifold-head

1шт.

5

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

7шт.

8

A30058

WASHER

- stud, 13/32" I.D. x 7/8" O.D. x 1/8"

4шт.

9

95-6

WASHER,3/8"

- stud, 7/16" I.D. x 1" O.D. x 5/64"

3шт.

10

131-903

NUT,3/8"-16

NUT - stud, 3/8" N.C. hex. Seez-Pruf

7шт.

11

A38188

PLATE

COVER - exhaust opening

1шт.

12

G46853

MANIFOLD GASKET

- exhaust opening

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

14

195-25

WASHER,3/8"

- plain, 13/32" I.D. x 13/16" O.D. x 5/64"

2шт.

15

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. Seez-Pruf

2шт.

20

A35782

MANIFOLD

- intake, (188) diesel engine

1шт.

21

G46871

GASKET

- intake manifold to head, (188) diesel engine

1шт.

22

A29431

STUD

- manifold (3/8" N.C. x 1-3/4"), (188) diesel engine

4шт.

23

195-25

WASHER,3/8"

- plain, 13/32" I.D. x 13/16" O.D. x 5/64", (188) diesel engine

4шт.

24

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. Seez-Pruf, (188) diesel engine

4шт.

25

A37775

HEATER

ASSY. - intake manifold, (188) diesel engine

1шт.

26

129-503

NUT,1/4"-20, Brass

(188) Diesel Engine 1/4"-20, Brass

1шт.

27

A20916

MANIFOLD GASKET

GASKET - manifold to heater, (188) diesel engine

1шт.

28

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust, (188) diesel engine

1шт.

29

G46872

MANIFOLD GASKET

- exhaust manifold to head, (188) diesel engine

1шт.

30

A35028

CLAMP

- manifold, (188) diesel engine

6шт.

31

A35175

STUD

- clamp (3/8" N.C. x 2-7/16"), (188) diesel engine

6шт.

32

195-25

WASHER,3/8"

- plain, 13/32" I.D. x 13/16" O.D. x 5/64", (188) diesel engine

6шт.

33

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. Seez-Pruf, (188) diesel engine

6шт.

34

A38188

PLATE

COVER - exhaust opening, (188) diesel engine

1шт.

35

G46853

MANIFOLD GASKET

- cover, (188) diesel engine

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., (188) diesel engine

2шт.

37

195-25

WASHER,3/8"

- plain, 13/32" I.D. x 13/16" O.D. x 5/64", (188) diesel engine

2шт.

38

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. Seez-Pruf, (188) diesel engine

2шт.
