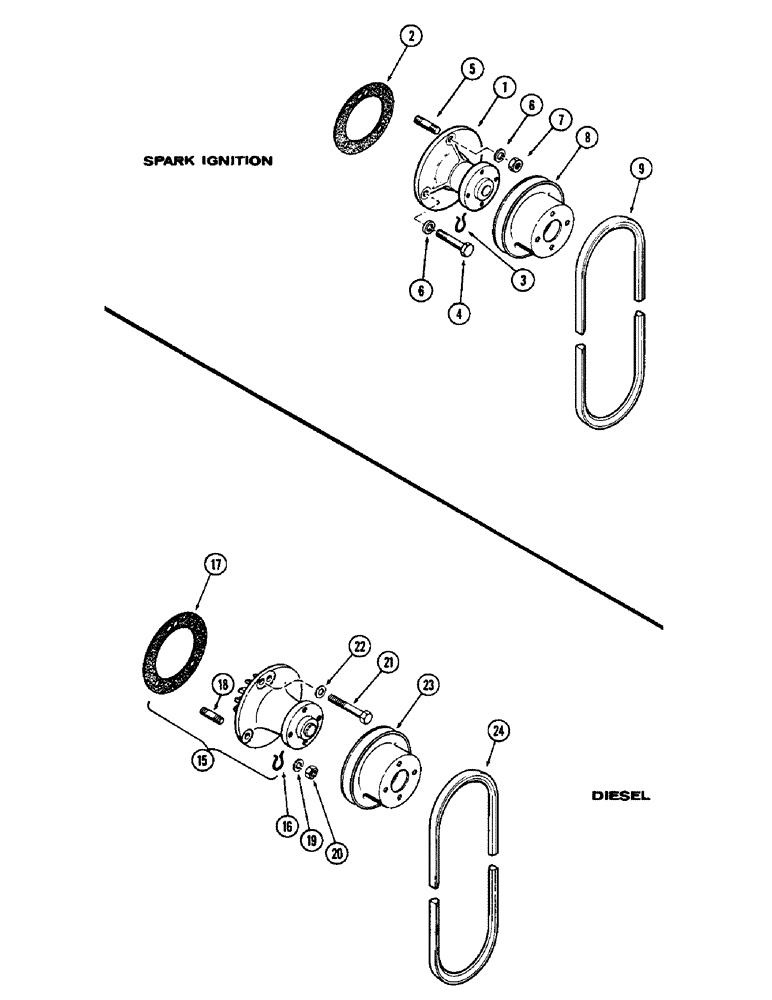

Запчасти Case 310G (046) - WATER PUMP, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

G11956

WATER PUMP

PUMP ASSY. - water, complete

1шт.

1

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

2

A38083

GASKET

GASKET -, Serial Range: pump-cover

1шт.

3

A30007

SPRING

RING - retainer

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

4

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex.

1шт.

5

A29433

STUD

STUD - 3/8 N.C. x 1"

1шт.

6

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

7

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.

8

G11339

PULLEY

PULLEY - fan & pump drive

1шт.

9

G46238

BELT,0.55" W x 17.78" L

Drive, Fan and Pump

1шт.

15

A146584

PUMP, WATER

PUMP ASSY. - water, complete, (188) diesel engine

1шт.

15

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

15

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assy

1шт.

15

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

15

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

15

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

16

A30067

RING

RING - retainer, (188) diesel engine

1шт.

17

A38083

GASKET

GASKET - pump to cover, (188) diesel engine

1шт.

18

A29433

STUD

STUD - 3/8" N.C. x 1", (188) diesel engine

2шт.

19

92-6

LOCK WASHER,3/8"

LOCK WASHER, (188) diesel engine 3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex., (188) diesel engine

2шт.

21

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex., (188) diesel engine

1шт.

22

A22317

WASHER

WASHER - copper (25/54" I.D. x 11/16" O.D. x 3/64"), (188) diesel engine

1шт.

23

G11339

PULLEY

PULLEY - fan & pump drive, (188) diesel engine

1шт.

24

G46238

BELT,0.55" W x 17.78" L

Fan and Pump Drive, 188 Diesel Engine

1шт.
