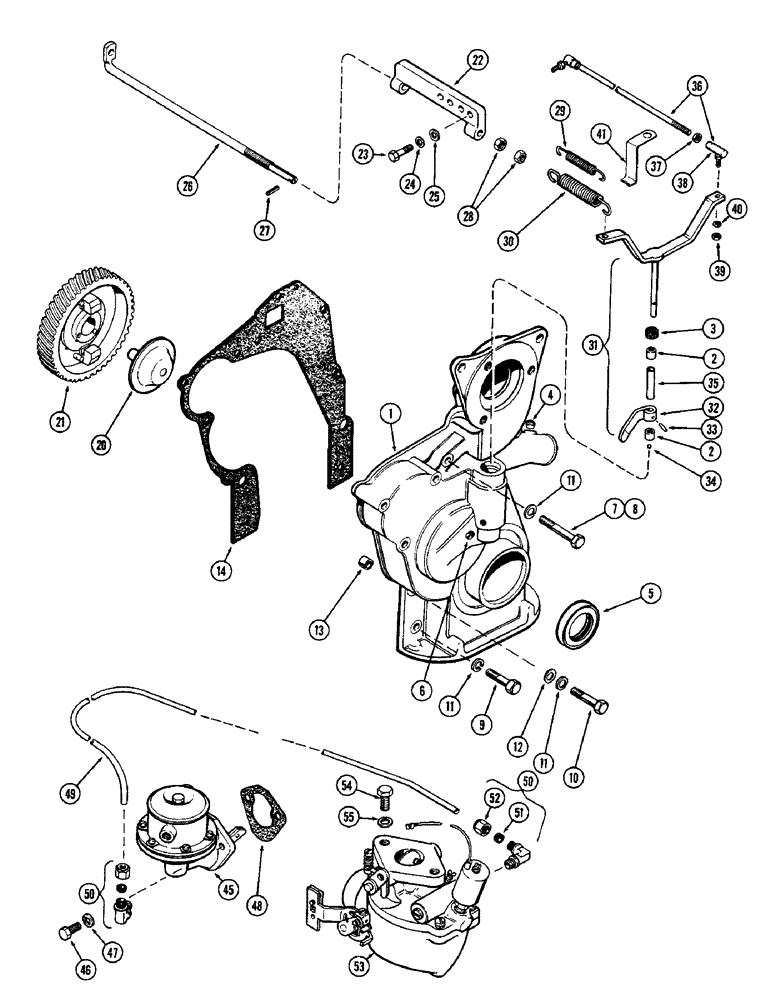

Запчасти Case 310G (042) - GOVERNOR AND TIMING GEAR COVER, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

A36979

COVER

ASSY. - timing gear

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft

2шт.

3

A30011

SEAL

- dust, governor shaft

1шт.

4

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

5

A36609

OIL SEAL

- oil, crankshaft

1шт.

6

A30016

FITTING

PLUG - pipe, 1/8" slotted

1шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

11

92-6

LOCK WASHER,3/8"

7шт.

12

195-25

WASHER,3/8"

- plain, 13/32" I.D. x 13/16" O.D. x 3/32"

2шт.

13

A29442

RING

- dowel, Serial Range: cover-block

2шт.

14

A38226

GASKET

-, Serial Range: cover-block

1шт.

20

A29957

SHAFT

ASSY. - governor

1шт.

21

G37066

GEAR

- camshaft (Includes governor weight)

1шт.

22

G2133

GUIDE

- governor control rod

1шт.

23

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

25

195-521

WASHER,5/16", SAE

- plain, 11/32" I.D. x 11/16" O.D. x 5/64"

2шт.

26

G11369

ROD - governor control

1шт.

27

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, (Spring catch) 1/8" x 3/8", Slotted

1шт.

28

131-142

NUT - 7/16" spec. (Pal type)

2шт.

29

A37005

SPRING

- inner, governor speed (Black)

1шт.

30

G48511

SPRING

- outer, governor speed (Black)

1шт.

31

A30125

SHAFT

& LEVER ASSY. - governor

1шт.

32

NSS

NOT SOLD SEPARAT

ARM - rocker (Order A30125)

1шт.

33

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

34

211-5

BALL,3/16" Dia

- thrust, governor shaft (3/16" steel)

1шт.

35

A30012

SPACER

- thrust, governor shaft

1шт.

36

A38301

ROD

ASSY. -, Serial Range: governor-carburetor

1шт.

37

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

38

A10329

BALL JOINT,1/4" - 28 x 1"

- front

1шт.

39

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

A29615

DAMPER - governor spring

1шт.

45

G45778

PUMP

ASSY. - fuel, carburetor

1шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Fuel pump & carburetor Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

47

92-5

LOCK WASHER,5/16"

fuel pump & carburetor 5/16"

2шт.

48

G46902

GASKET

- fuel pump to block, carburetor

1шт.

49

G46289

LINE

- fuel, Serial Range: pump-carburetor

1шт.

50

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- fuel line, 5/16" tube x 1/8" P.T., pump & carburetor

2шт.

51

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube, fuel pump & carburetor

1шт.

52

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube, fuel pump & carburetor

1шт.

53

A38240

CARBURETOR ASSY. - (Repairs Figure 044), fuel pump

1шт.

54

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Fuel pump & carburetor Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

55

92-5

LOCK WASHER,5/16"

fuel pump & carburetor 5/16"

2шт.
