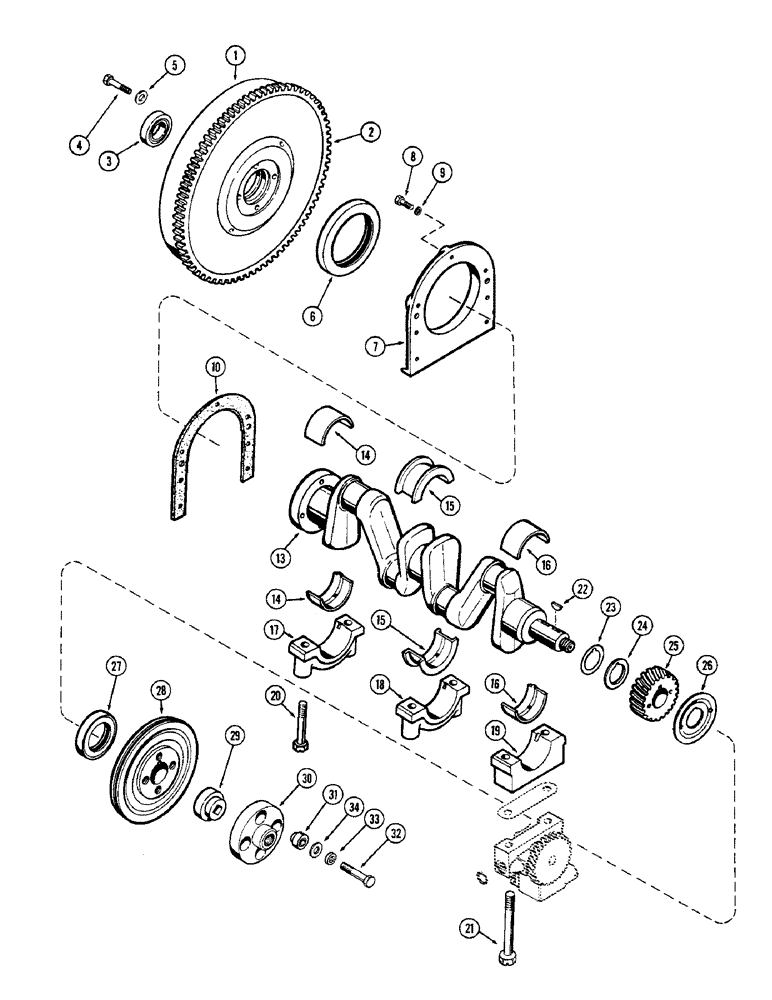

Запчасти Case 310G (034) - CRANKSHAFT AND FLYWHEEL, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

G37091

FLYWHEEL ASSY.

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A30128

BEARING ASSY

BEARING - pilot

1шт.

4

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - flywheel to crankshaft (7/16" x 1-1/8" N.F. hex.)

4шт.

5

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- place bolt (29/64 x 3/4 x 1/16")

4шт.

6

A36610

OIL SEAL

- oil, crankshaft rear

1шт.

7

A38390

RETAINER

- oil seal, rear

1шт.

8

113-25

X

BOLT - 1/4 x 3/4" N.C. hex. (Gr. 8)

4шт.

8

113-26

BOLT

- 1/4 x 1" N.C. hex. (Gr. 8)

3шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

10

A38196

GASKET

- retainer, rear oil seal

1шт.

13

A37210

CRANKSHAFT

1шт.

14

G37051

KIT

LINERS - rear bearing, crankshaft (Std.)

1шт.

14

G37052

KIT

LINERS - rear bearing, crankshaft (.002" undersize)

1шт.

14

A42322

FIP KIT

LINERS - rear bearing, crankshaft (.010" undersize)

1шт.

14

G37053

KIT

LINERS - rear bearing, crankshaft (.020" undersize)

1шт.

14

G37054

KIT

LINERS - rear bearing, crankshaft (.040" undersize)

1шт.

15

G37047

KIT

LINERS - center bearing, crankshaft (Std.)

1шт.

15

G37048

KIT

LINERS - center bearing, crankshaft (.002" undersize)

1шт.

15

A42321

FIP KIT

LINERS - center bearing, crankshaft (.010" undersize)

1шт.

15

G37049

KIT

LINERS - center bearing, crankshaft (.020" undersize)

1шт.

15

G37050

KIT

LINERS - center bearing, crankshaft (.040" undersize)

1шт.

16

G37043

KIT

LINERS - front bearing, crankshaft (Std.)

1шт.

16

G37044

KIT

LINERS - front bearing, crankshaft (.002" undersize)

1шт.

16

A42320

BEARING LINER

LINERS - front bearing, crankshaft (.010" undersize)

1шт.

16

G37045

KIT

LINERS - front bearing, crankshaft (.020" undersize)

1шт.

16

G37046

KIT

LINERS - front bearing, crankshaft (.040" undersize)

1шт.

17

G2037

CAP

- rear bearing, crankshaft

1шт.

18

G2036

CAP

- center bearing, crankshaft

1шт.

19

G2035

CAP

- front bearing, crankshaft

1шт.

20

G49037

BOLT

- bearing cap (1/2 x 3" N.C. hex.)

4шт.

21

G49059

BOLT

- front brg. cap & oil pump (1/2 x 4-3/4" N.C. hex.)

2шт.

22

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

23

A29293

SHIM,.010" Thk

Thrust washer .010" Thk

1шт.

24

A24294

SPACER - thrust, crankshaft

1шт.

25

A29263

GEAR

- crankshaft (24T)

1шт.

26

A29259

SLINGER

- oil, crankshaft gear

1шт.

27

A36609

OIL SEAL

- oil, crankshaft front

1шт.

28

G11342

X

PULLEY - drive, fan & generator

1шт.

29

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

30

D140524

FLEXIBLE COUPLING,13T

COUPLING - flex, hydraulic pump drive

1шт.

31

G36905

BLOCK

BUSHING - coupling bolt

4шт.

32

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

33

92-7

LOCK WASHER,7/16"

4шт.

34

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, 29/64" I.D. x 3/4" O.D. x 16 ga.

4шт.
