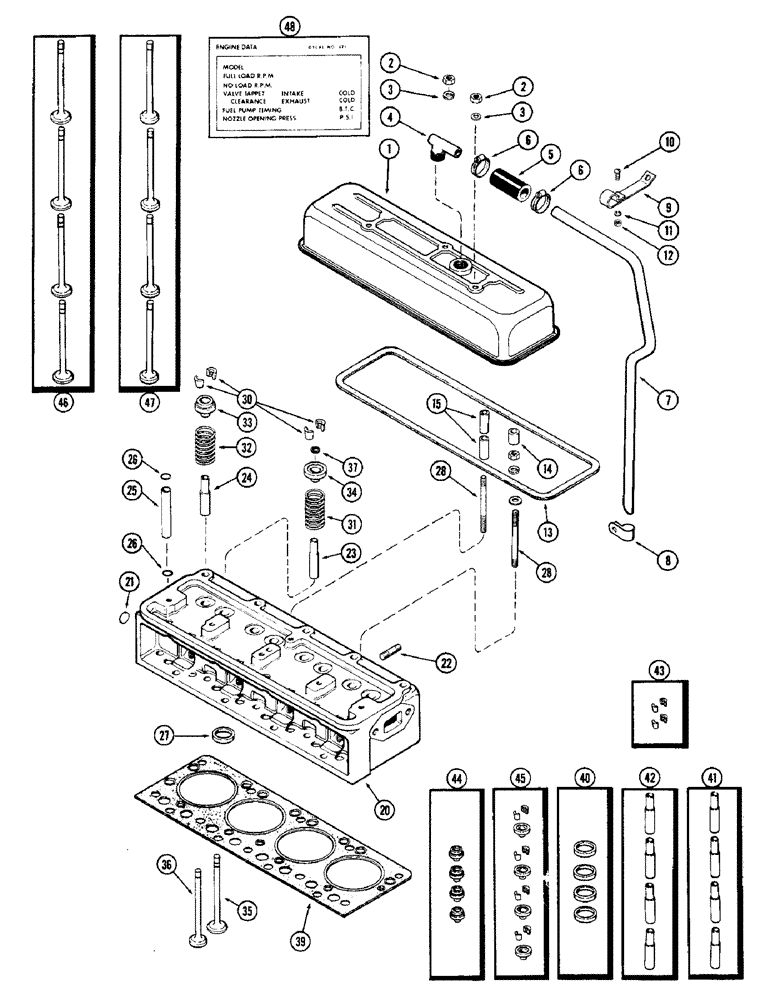

Запчасти Case 310G (030) - CYLINDER HEAD ASSEMBLY, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

A37212

COVER

- cylinder head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

3

A29277

WASHER

- cover stud (13/32" I.D. x 1 O.D. x 1/8")

3шт.

4

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

5

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube to cover 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

7

A37979

X

TUBE - breather

1шт.

8

D35026

CLAMP - breather tube

1шт.

9

A38134

SPRING

CLIP -, Serial Range: tube-manifold

1шт.

10

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- mach., 1/4 x 1/2" rd. hd.

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

1шт.

13

A30009

GASKET

-, Serial Range: cover-head

1шт.

14

A30065

SPACER

- head cover (17/32" high)

2шт.

15

A29999

SPACER

- head cover (1-19/32" high)

2шт.

G11888

HEAD ASSY. - complete (Not shown)

1шт.

20

G11874

HEAD (CYLINDER)

HEAD ASSY. - stripped (Casting No. G2088)

1шт.

21

41-18

PLUG

- rear (1-1/8" expansion)

1шт.

22

A29431

STUD

- manifold (3/8" N.C. x 1-3/4")

7шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 41)

4шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 42)

4шт.

25

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

26

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - push rod tube

16шт.

27

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 40)

4шт.

28

G49505

STUD

- cover to head (3/8" N.C. x 4-5/8")

3шт.

30

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 43)

16шт.

31

A30025

SPRING

- intake valve

4шт.

32

G10004

SPRING

- exhaust valve

4шт.

33

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. 44)

4шт.

34

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 45)

4шт.

35

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 46)

4шт.

36

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 47)

4шт.

37

G46851

SEAL

- intake valve stem

4шт.

39

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

40

G11960

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

41

G10629

GUIDES - intake valve stem (Set of 4)

1шт.

42

A30270

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

43

G11929

LOCK

S - valve spring (Set of 4)

4шт.

44

G11928

CAP

ROTO CAPS - exhaust valve (Set of 4)

1шт.

45

G11927

RETAINER

S - intake valve spring (Set of 4 w/locks)

1шт.

46

G11961

VALVE

S - intake (Set of 4)

1шт.

47

G11962

VALVE, ENG EXHAUST,

VALVES - exhaust (Set of 4)

1шт.

48

321-1355

DECAL - engine data (On cover)

1шт.
