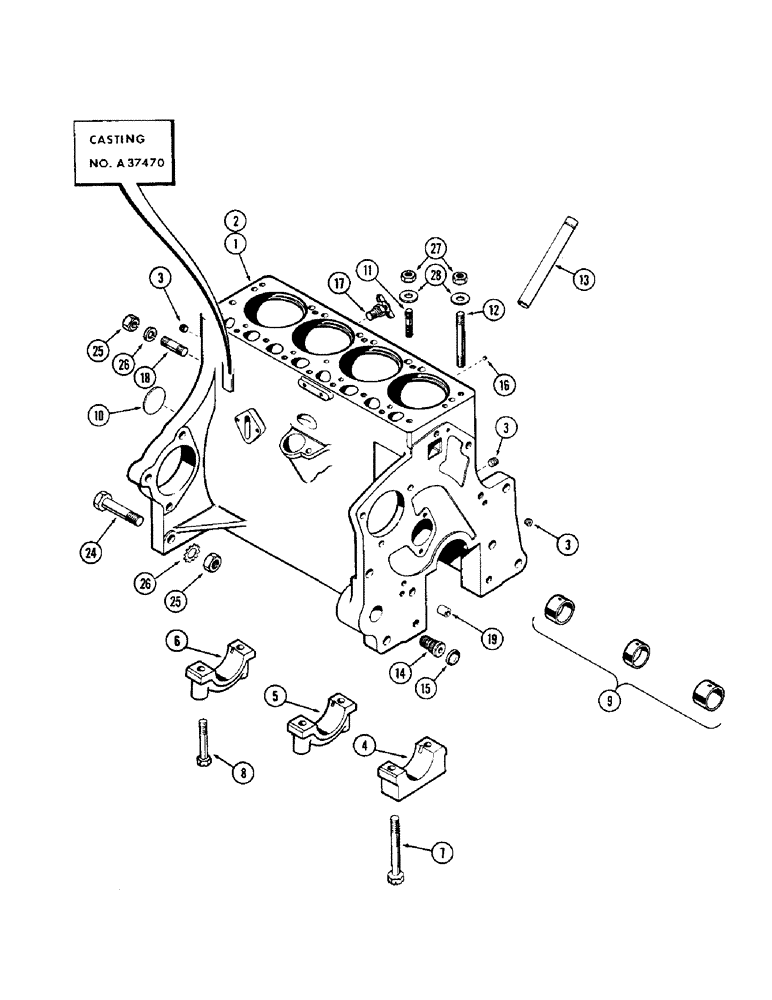

Запчасти Case 310G (028) - CYLINDER BLOCK ASSEMBLY, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

A37829

SHORT BLOCK ASSY. - (Includes stripped block, crankshaft & bearings, pistons & rods, sleeves, camshaft & oil pump)

1шт.

2

A37828

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting No. A37470)

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

- bearing, crankshaft front

1шт.

5

G2036

CAP

- bearing, crankshaft center

1шт.

6

G2037

CAP

- bearing, crankshaft rear

1шт.

7

G49059

BOLT

- front brg. cap (1/2 x 4-3/4" N.C. hex.)

2шт.

8

G49037

BOLT

- bearing cap (1/2 x 3" N.C. hex.

4шт.

9

A41225

KIT

BUSHING SET - camshaft (Pre-sized)

1шт.

10

A39241

PLUG,Exp, 2.12" dia

- rear (2-1/8" expansion type)

1шт.

11

A30057

STUD

- head (1/2" N.C. & N.F. x 2")

9шт.

12

A29436

STUD

- head (1/2" N.C. & N.F. x 5-7/8")

5шт.

13

A37149

TUBE

- dipstick & oil filler

1шт.

14

A153552

ADAPTER

- oil filter

1шт.

15

41-1016

PLUG,Cup, 1"

- oil filter (1" cup type)

1шт.

16

221-1850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" P.T. socket hd.

1шт.

17

A23656

COCK, DRAIN

VALVE - drain (1/4" P.T.)

1шт.

18

A29363

STUD

- engine to torque tube (5/8" N.F.-N.C. x 2-1/4")

2шт.

19

A29442

RING

- dowel, timing gear cover

2шт.

24

A30129

BOLT

- engine to torque tube (5/8 x 2-3/4" N.F. hex)

2шт.

25

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

26

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

27

A30021

NUT

- head stud (1/2" N.F. hex.)

14шт.

28

G49404

WASHER

- stud nut

14шт.
