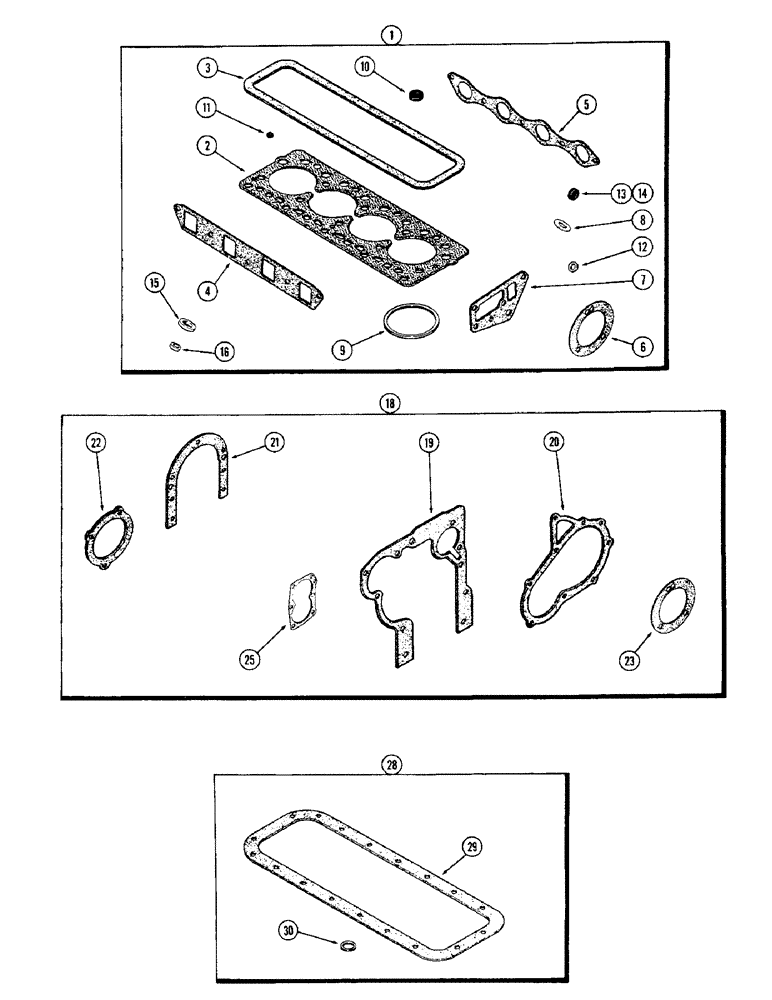

Запчасти Case 310G (020) - ENGINE GASKET KITS, (188) DIESEL ENGINE (01) - ENGINE

1

A42001

GASKET

KIT - valve grind (See note)

1шт.

2

13490891C1

-, Serial Range: head-block

1шт.

3

G46866

GASKET

- valve, Serial Range: cover-head

1шт.

4

G46871

GASKET

- intake manifold

1шт.

5

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

6

A38083

GASKET

- water pump

1шт.

7

A38084

GASKET,1.27mm Thk

- front, Serial Range: cover-head

1шт.

8

G49068

GASKET

- fuel injector (Not used this machine)

4шт.

9

A38639

RING

- fire, cylinder (Orange coated)

4шт.

10

G46867

GROMMET

- rubber, valve cover

2шт.

11

G46851

SEAL

- rubber, valve stem

8шт.

12

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection, Serial Range: tube-pump

8шт.

13

222-101

SLEEVE,3/16" Tube

- (Not used this machine) 3/16" Tube

4шт.

14

222-103

SLEEVE,5/16" Tube

(Not used this machine) 5/16" Tube

4шт.

15

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, fuel injector

4шт.

16

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, fuel injector

4шт.

18

A41426

KIT

GASKET KIT - cylinder block

1шт.

19

A38228

GASKET

- pump drive cover

1шт.

20

G46859

GASKET

- pump drive cover

1шт.

21

A38196

GASKET

- rear oil seal retainer

1шт.

22

A30042

GASKET

- generator bracket

1шт.

23

A38083

GASKET

- water pump

1шт.

25

G46852

GASKET

- oil pump cover

1шт.

28

A40712

KIT

GASKET KIT - oil pan

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712)

1шт.

30

A58608

GASKET

- drain plug (3/4" I.D. x 1" O.D. nylon)

1шт.
