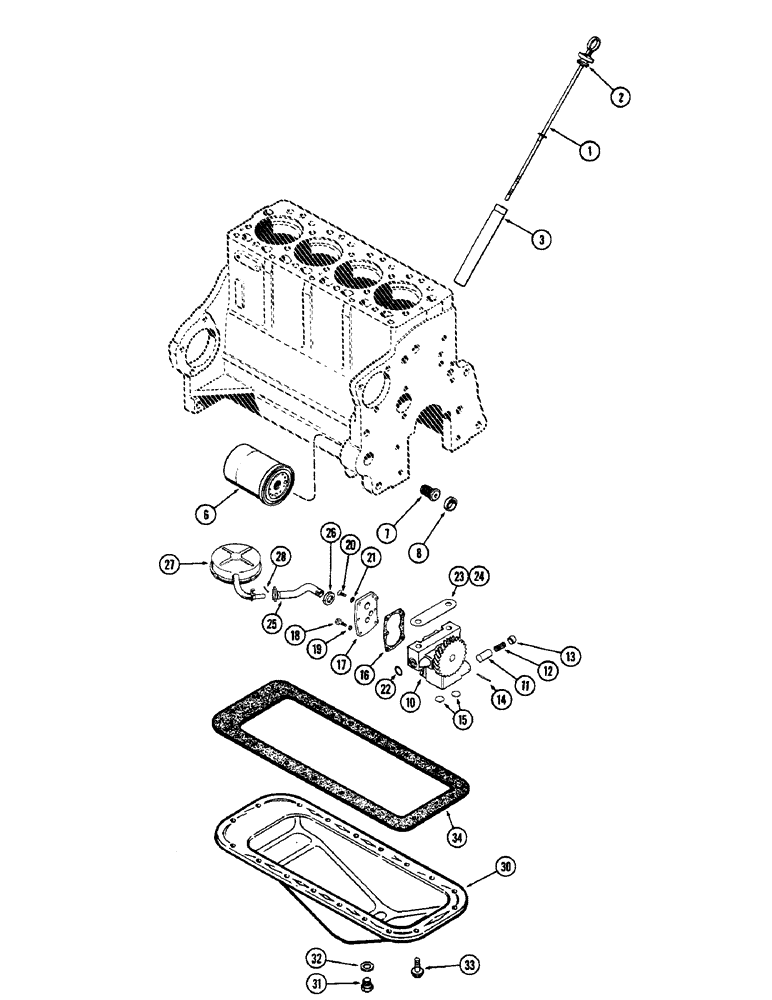

Запчасти Case 310G (018) - OIL PUMP-OIL FILTER-OIL PAN, (188) DIESEL ENGINE (01) - ENGINE

1

A37148

DIPSTICK

DIPSTICK ASSY. - oil level

1шт.

2

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal (3/4" I.D. x 1" O.D.)

2шт.

3

A37149

TUBE

TUBE - dipstick & oil filler

1шт.

6

A37189

FILTER, ELEMENT

ELEMENT, FILTER FILTER - engine oil

1шт.

7

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

8

41-1016

PLUG,Cup, 1"

PLUG - adapter opening (1" cup type)

1шт.

10

A38372

PUMP

PUMP ASSY. - oil

1шт.

10

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

10

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

11

A155144

VALVE, PRESSURE RELI

- relief

1шт.

12

G48500

SPRING

SPRING - relief valve

1шт.

13

A29260

RETAINER

RETAINER - relief spring

1шт.

14

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

1шт.

15

41-102

PLUG,Exp, 1/2"

PLUG - pump body (1/2" expansion type)

1шт.

16

G46852

GASKET

GASKET - pump cover

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

18

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - mach., 1/4 x 5/8" flat hd.

2шт.

21

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4" I.D. x 15/16" O.D.)

1шт.

23

G11337

SHIM,.002" Thk

SHIM, , Pump to block .002" Thk

1шт.

24

G11338

SHIM,.005" Thk

SHIM, , Pump to block .005" Thk

1шт.

25

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE - suction, oil pan

1шт.

26

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

27

A30126

SPARE PART FLOAT ASSY. - suction tube (Includes screen)

1шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

30

A36782

PAN

PAN ASSY. - oil

1шт.

31

A14280

PLUG

PLUG - drain

1шт.

32

A58608

GASKET

GASKET - drain plug (3/4" I.D. x 1" O.D. nylon)

1шт.

33

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (Includes lockwasher)

18шт.

34

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712 from Figure 020)

1шт.
