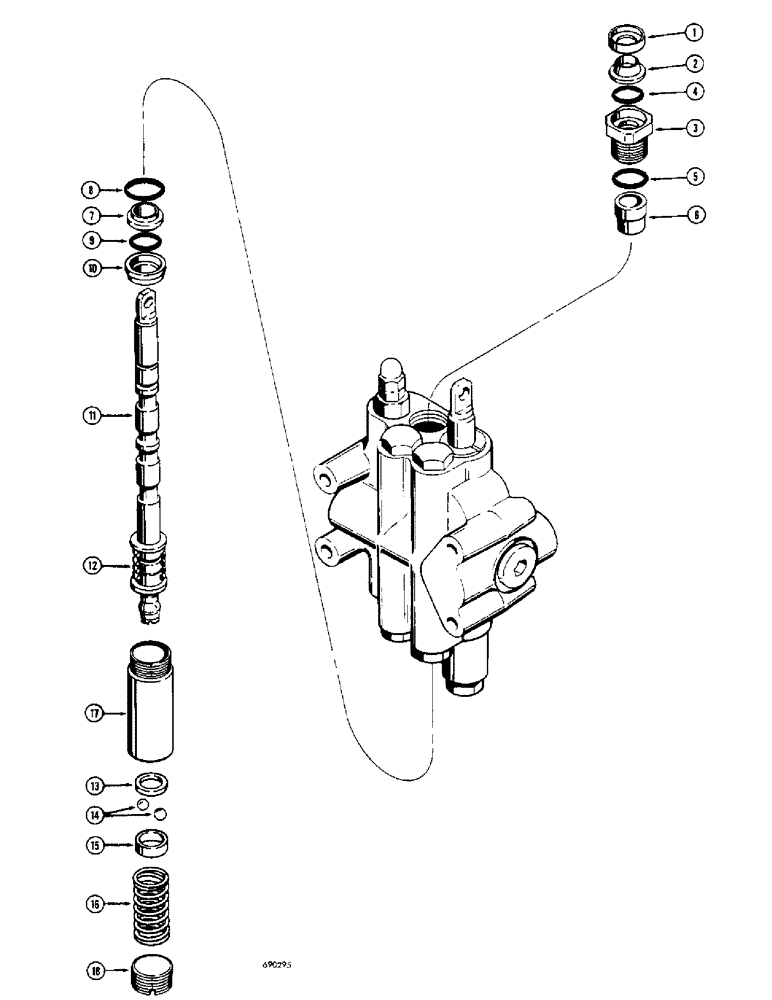

Запчасти Case 310G (270) - FOUR POSITION SPOOLS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
D46024
SPOOL
ASSEMBLY - four position (Color code - black or letter code - W), Serial Range: .73700"-.73709"
1шт.
D46025
SPOOL
ASSEMBLY - four position (Color code - blue or letter code - X), Serial Range: .73710"-.73719"
1шт.
N6592
VALVE
SPOOL ASSEMBLY - four position (Color code - yellow or letter code - Y), Serial Range: .73720"-.73729"
1шт.
D46027
SPOOL
ASSEMBLY - four position (Color code - green or letter code - Z), Serial Range: .73730"-.73740"
1шт.
1
D37153
RETAINER
- wiper ring
1шт.
2
A14527
SCRAPER
RING - wiper
1шт.
3
D37152
RETAINER
GLAND - spool
1шт.
4
R17547
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
SEAL - "O" ring, gland (Small)
1шт.
5
D37156
O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro
SEAL - "O" ring, gland (Large)
1шт.
6
D37076
SLEEVE
- spool, lug end
1шт.
7
D33857
RETAINER
- "O" ring
1шт.
8
A16877
SEAL
- "O" ring, housing (Large)
1шт.
9
R17547
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
SEAL - "O" ring, gland (Small)
1шт.
10
D33856
RETAINER
- "O" ring
1шт.
D46034
TUBE
SPOOL KIT - D46024 spool assembly only
1шт.
D46035
SPOOL
KIT - D46025 spool assembly only
1шт.
D46036
SHAFT
SPOOL KIT - D46026 spool assembly only
1шт.
D46037
SPOOL
KIT - D46027 spool assembly only
1шт.
11
NSS
NOT SOLD SEPARAT
SPOOL ASSEMBLY - four position
1шт.
12
A16882
SPRING
- centering
1шт.
13
L30455
WASHER
- detent
1шт.
14
211-8
BALL,9/32" Dia
- detent 9/32" Dia
8шт.
15
L30456
CAM
- detent
1шт.
16
L30626
SPRING
- detent
1шт.
17
L30454
CAP
- valve, detent
1шт.
18
L30458
PLUG
- detent adjustment
1шт.
Выбрано товаров: 26
